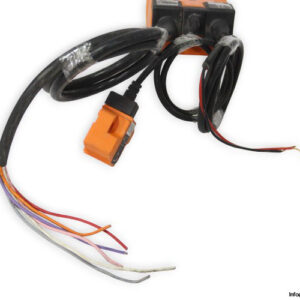

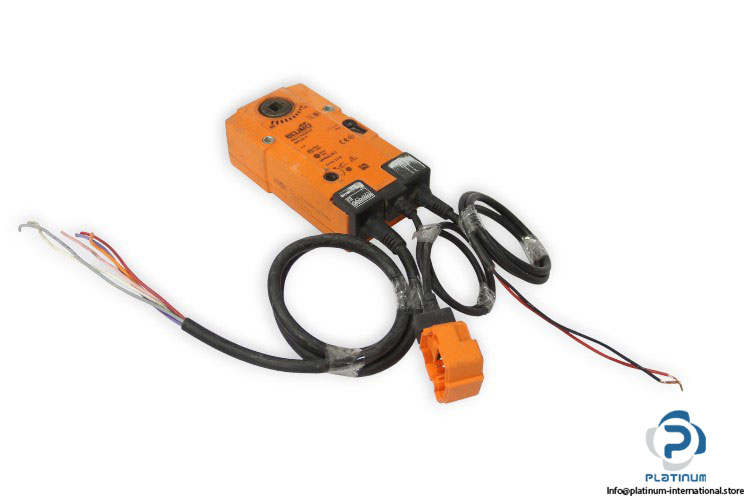

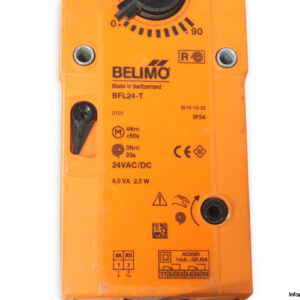

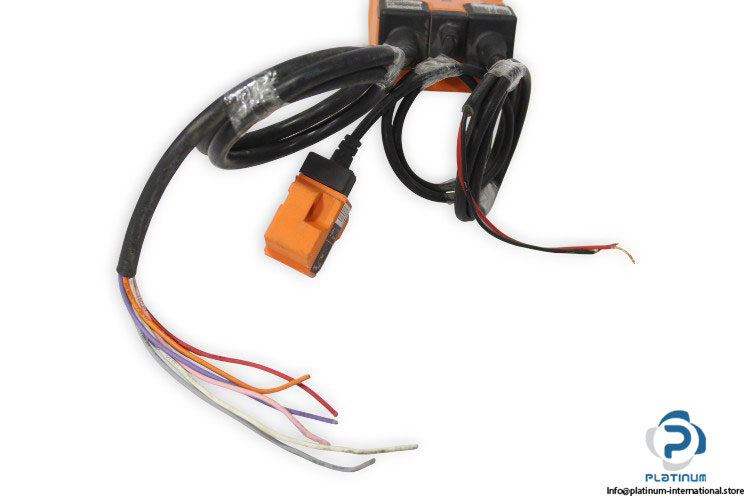

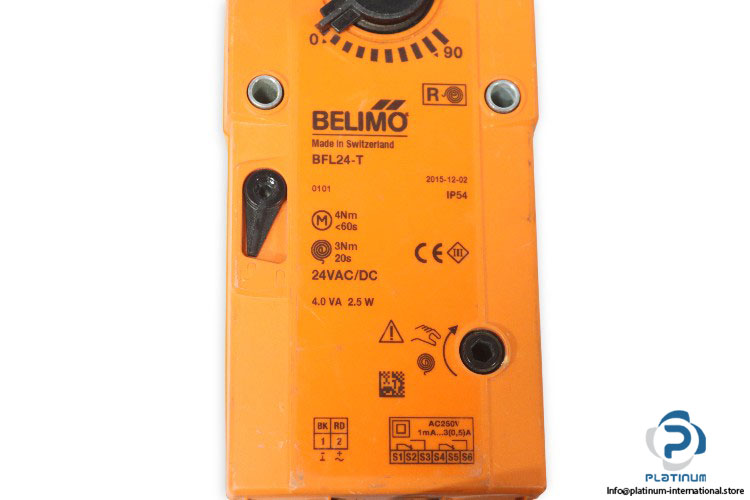

Belimo BFL24-T Fire Damper Actuator with Temperature Monitoring Unit
The Belimo BFL24T Fire Damper Actuator is a reliable motorized actuator designed for fire and smoke protection systems. It provides precise control, integrated safety switching, and durable performance in demanding HVAC applications. This model is supplied with the Belimo 1128892-1041 Temperature Monitoring Unit for enhanced system safety and monitoring.
Manufacturer: Belimo
Type: Fire Damper Actuator
Model: BFL24-T
Technical Information
- Rated Nominal Voltage: 24 V AC / DC
- Power Consumption in Operation: 2.5 W
- Power Consumption for Wire Sizing: 4 VA
- Frequency: 50 / 60 Hz
- Auxiliary Contact Switch: 2 SPDT (2 Changeover CO)
- Switching Capacity Auxiliary Switch: 250 V AC, 3 (0.5) A
- Switching Points Auxiliary Switch: 5° / 80°
- Running Time Motor: Open 90 s, Close 15 s
- Angle of Rotation Max.: 90°
- Position Indication: Mechanical, Pluggable
- Protection Class: IP54
- Ambient Temperature: -30 / 55 °C
- Dimensions: 160 × 80 × 48 mm

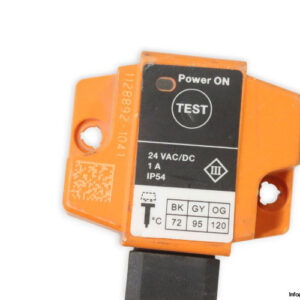

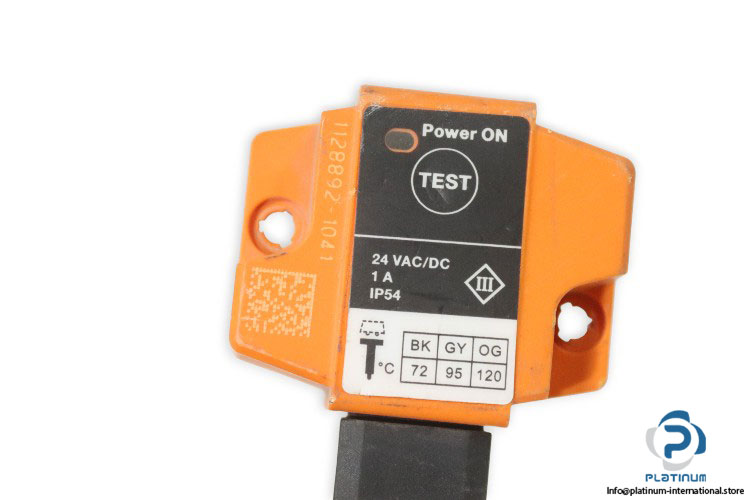

Attached Temperature Monitoring Unit
Manufacturer: Belimo
Type: Temperature Monitoring Unit
Model: 1128892-1041
- Diameter: 58 mm
- Probe Length: 65 mm
- Total Length: 94 mm
