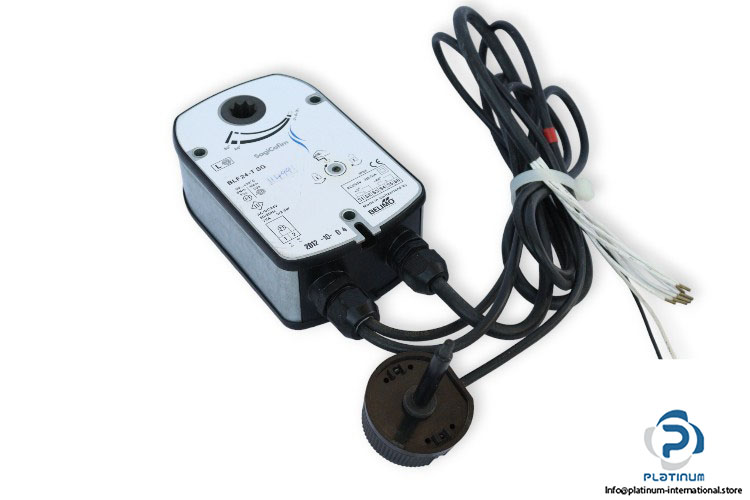

Manufacture: Belimo
Type: Spring-return actuator

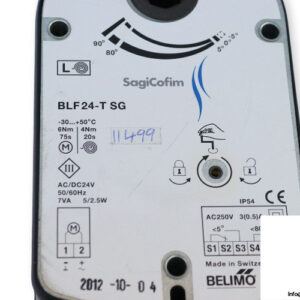

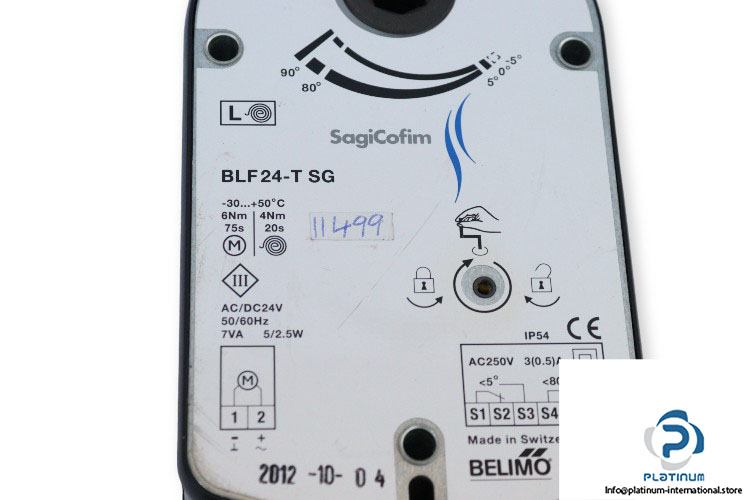

Model: BLF24-TSG
Family: Sagicofim

Torque motor: 6 Nm
Torque Spring Return: 4 Nm
Nominal voltage: 24 V AC/DC (19.2 … 28.8 V AC / 21.6 … 28.8 V DC)
Nominal voltage frequency: 50/60 Hz
Power consumption: 5W @ running / 2.5W @ holding
Power consumption for wire sizing: 7 VA
Auxiliary switch: 2x SPDT (3 (0.5) A, 250 V AC)
Angle of rotation: Max. 95° (include 5° spring pretensioning)
Running time: Motor: 40 … 75s (0…6Nm) /Spring Return: -20s @ -20 … +50°C/max. 60s @ -30°C
Sound power level: Motor max. 45dB(A) / spring return
Degree of protection: IP54
Ambient temperature normal duty: -30 … 50°C
Dimensions: 185 x 98 x 57.6 mm
Attachment:

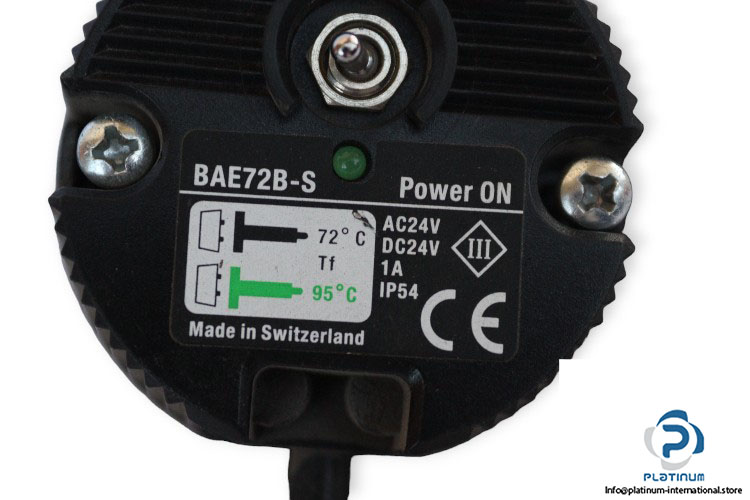

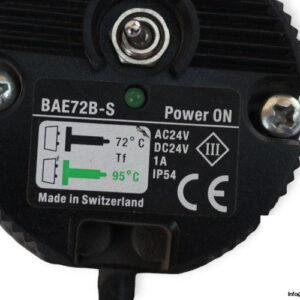

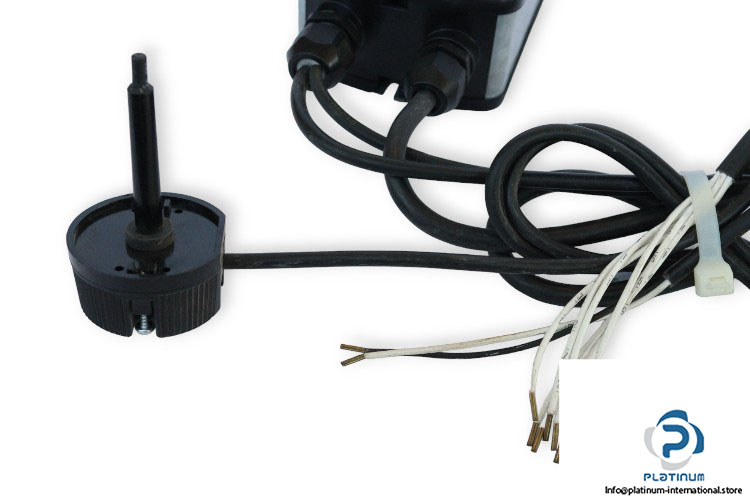

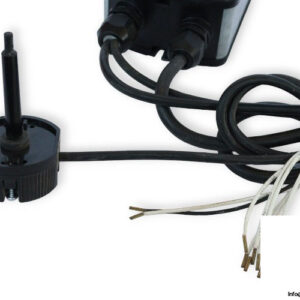

BAE72B-S THERMO-ELECTRICAL RELEASE DEVICE
Type: Thermo-Electrical Release Device
Model: BAE72BS

Voltage: 24 V AC/DC
Current: 1 A
Protection degree: IP54
Temperature: 72°C (OFF)… 90°C (ON)
