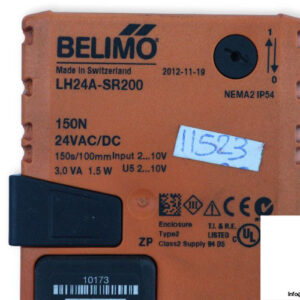

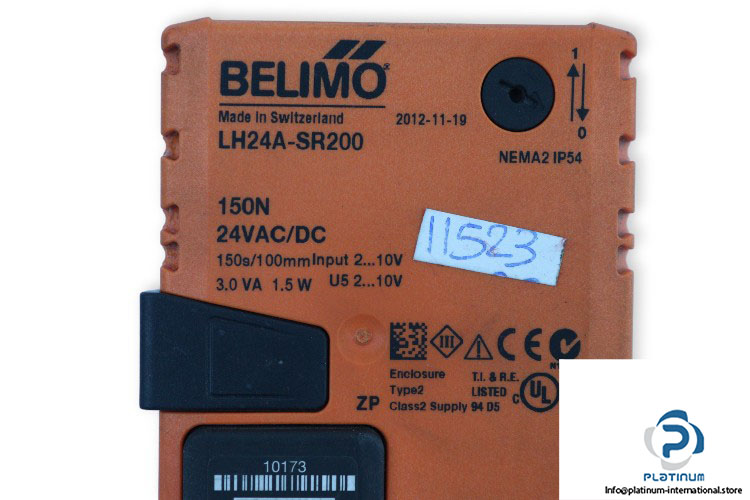

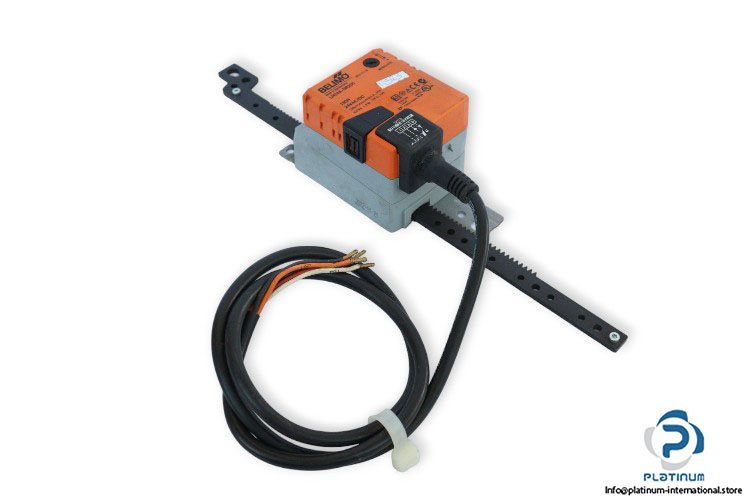

Manufacture: Belimo
Type: Modulating linear actuator
Model: LH24ASR200

Actuating force motor: 150 N
Nominal voltage: 24 V AC/DC
Nominal voltage frequency: 50/60 Hz
Power consumption in operation: 1.5 W
Power consumption in rest position: 0.5 W
Power consumption for wire sizing: 3 VA

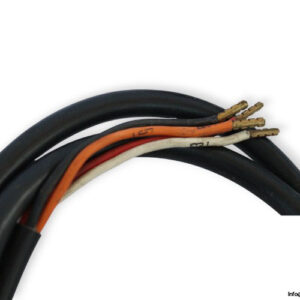

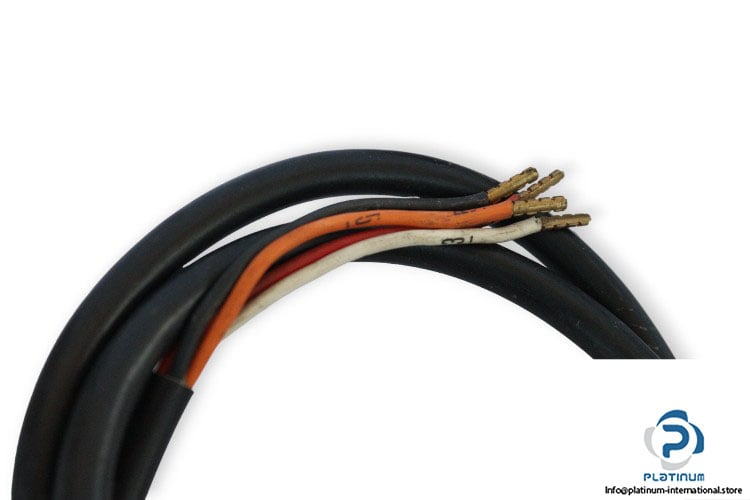

Connection supply / control: Cable 1 m, 4x 0.75 mm²
Operating range Y: 2 … 10 V
Position feedback U: 2 … 10 V
Running time motor: 150 s / 100 mm
Degree of protection: IP54
Ambient temperature range: -30 … +50 °C
Dimensions: 333.5 x 66 x 103 mm
