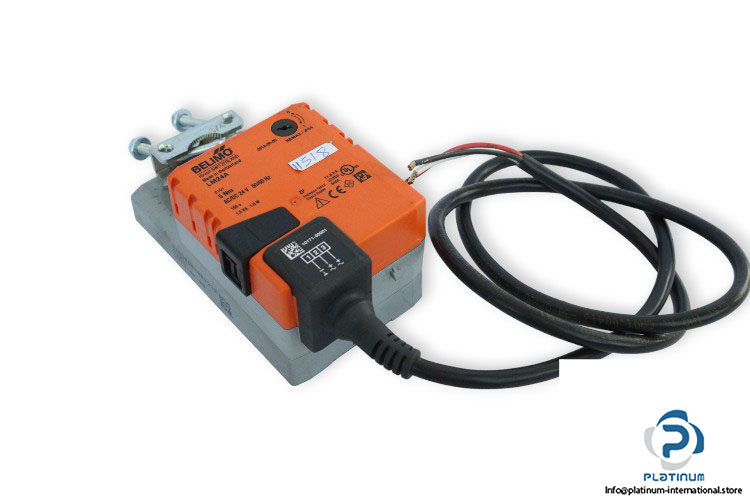

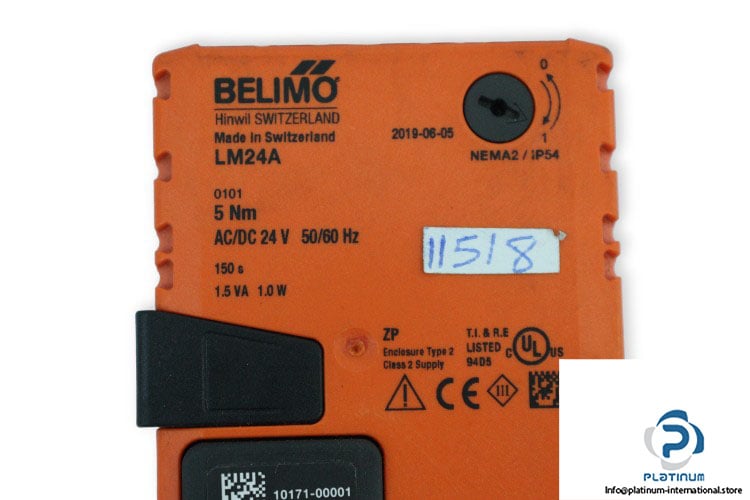

Manufacture: Belimo
Type: Damper actuator
Model: LM24A

Used: For adjusting dampers in technical building installations
Torque motor: 5 Nm
Nominal voltage: 24 V AC/DC (19.2 … 28.8 V AC / 21.6 … 28.8 V DC)
Nominal voltage frequency: 50/60 Hz
Power consumption in operation: 1 W
Power consumption in rest position: 0.2 W
Power consumption for wire sizing: 1.5 VA

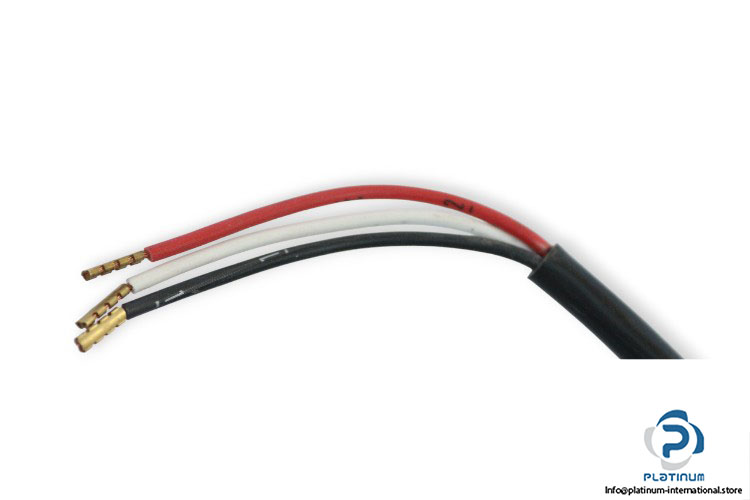

Connection supply / control: Cable 1 m, 3x 0.75 mm²
Pollution degree: 3
Angle of rotation max.: 95°
Running time motor: 150 s / 90°
Degree of protection: IP54
Ambient temperature: -30 … 50°C
Dimensions: 61 x 116 x 157 mm
