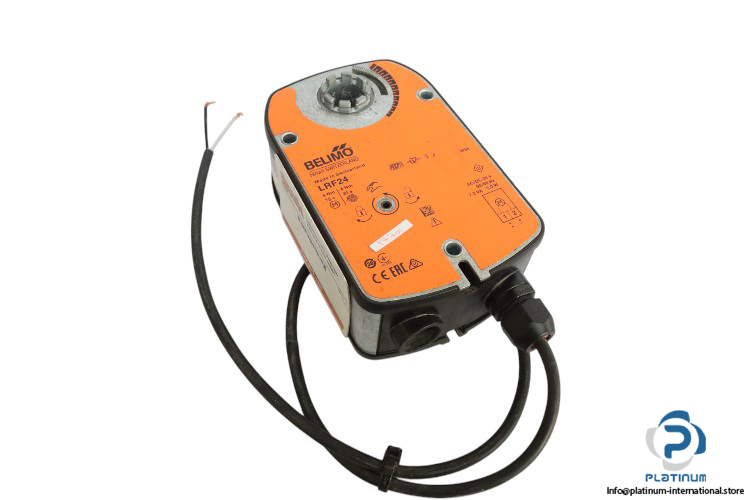

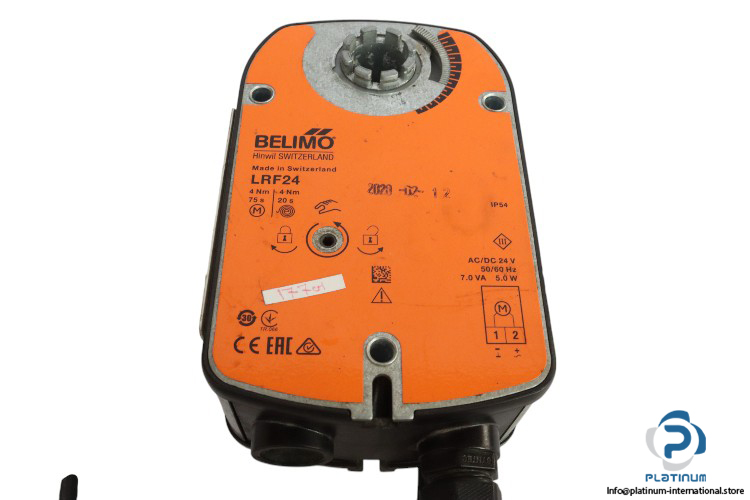

BELIMO Rotary Actuator LRF24

The BELIMO LRF24 Rotary Actuator is designed for precision control and efficient operation in industrial applications. Operating on a 24 V AC/DC power supply, it provides 4 Nm torque with an IP54 protection rating, ensuring durability and reliability. With its compact design and robust performance, the LRF24 is ideal for demanding environments.

Specifications:

• Manufacturer: BELIMO
• Type: Rotary Actuator
• Model: LRF24
• Nominal Voltage: 24 V AC/DC
• Nominal Voltage Frequency: 50/60 Hz
• Nominal Voltage Range: 19.2…28.8 V / DC 21.6…28.8 V AC
• Power Consumption (Operation): 5 W
• Power Consumption (Rest Position): 2.5 W
• Power Consumption for Wire Sizing: 7 VA
• Connection Supply/Control Cable: 1 m, 2x 0.75 mm²
• Torque Motor: 4 Nm
• Degree of Protection: IP54
• Rated Impulse Voltage: 0.8 kV
• Pollution Degree: 3
• Ambient Temperature: -30…50°C
• Dimensions: 87.5 x 155 x 98 mm
