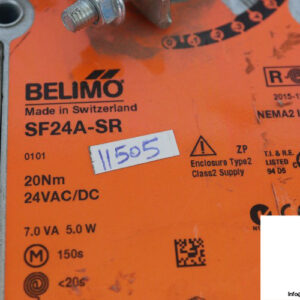

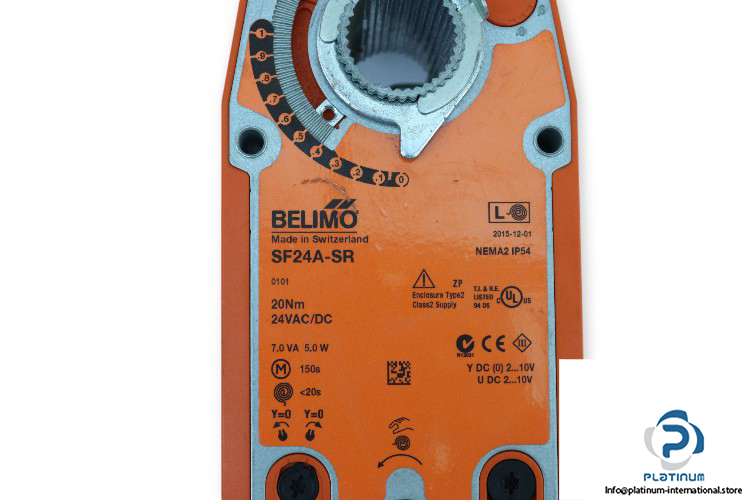

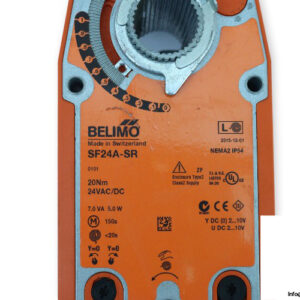

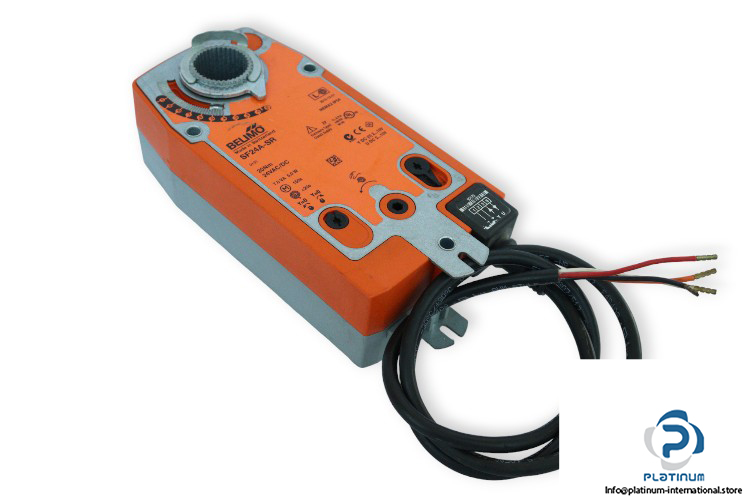

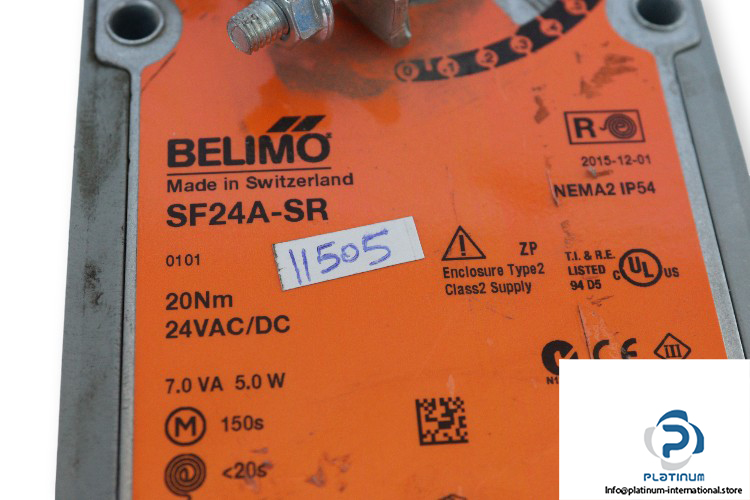

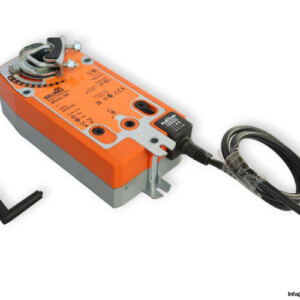

Manufacture: Belimo
Type: Rotary actuator fail-safe
Model: SF24ASR

Torque motor: 20 Nm
Torque fail-safe: 20 Nm
Operating range Y: 2 … 10 V
Position feedback U: 2 … 10 V
Nominal voltage: 24 V AC/DC (19.2 … 28.8 V AC / 21.6 … 28.8 V DC)
Nominal voltage frequency: 50/60 Hz
Power consumption in operation: 5 W
Power consumption in rest position: 3 W
Power consumption for wire sizing: 7 VA
Running time motor: 150 s / 90°
Angle of rotation Max.: 95°
Rated impulse voltage supply / control: 0.8 kV
Pollution degree: 3
Degree of protection IEC/EN: IP54
Ambient temperature: –30 … 50°C

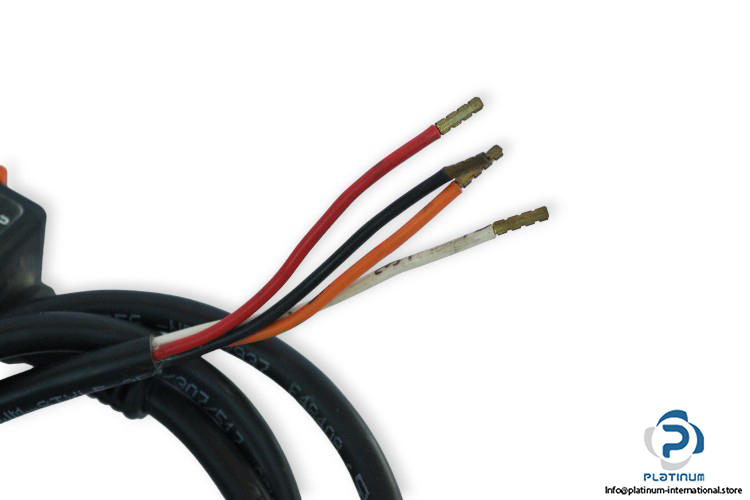

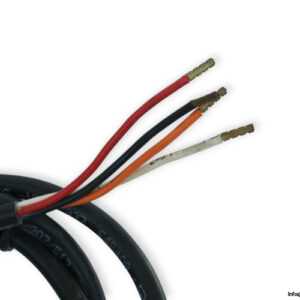

Connection supply / control Cable: 1 m, 4x 0.75 mm²
Dimensions: 236 x 98 x 93 mm
