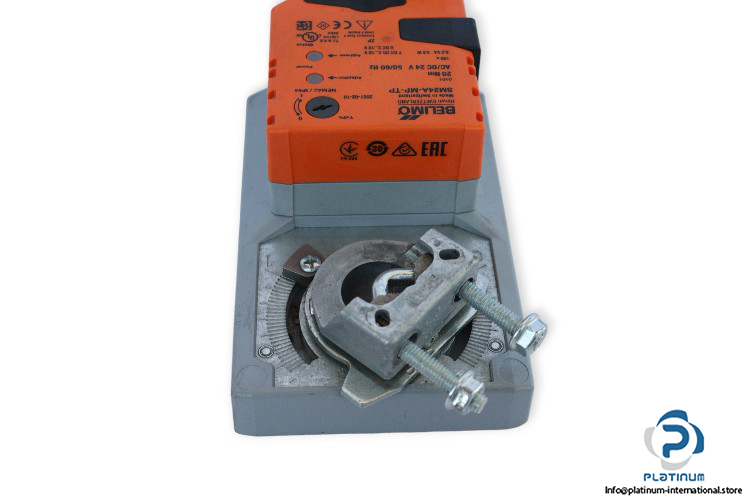

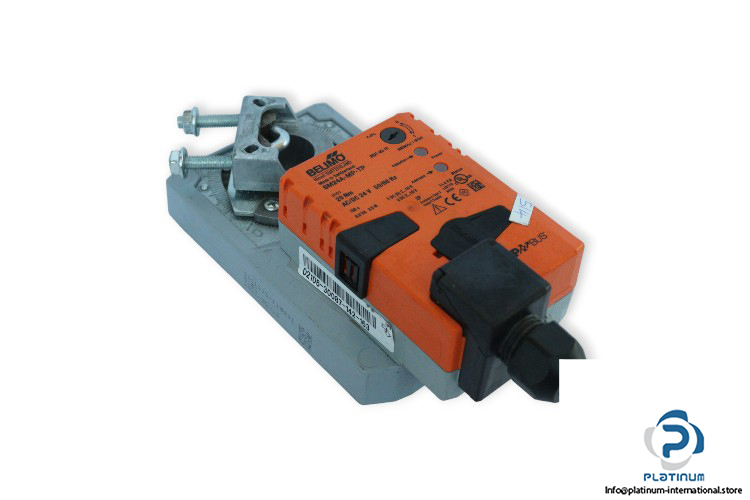

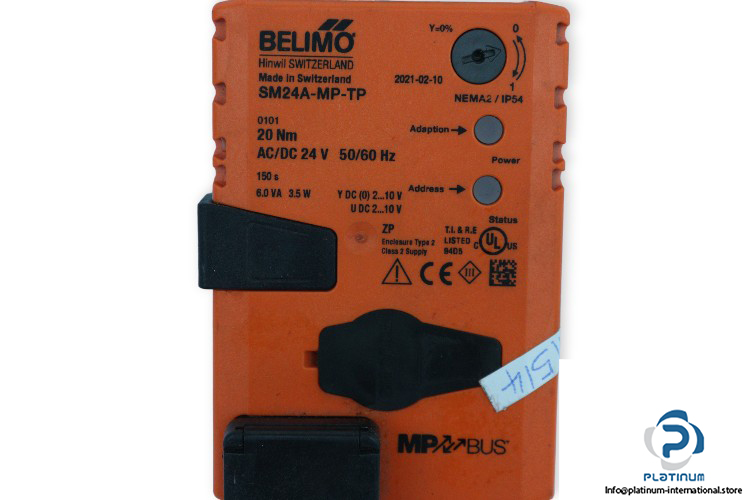

Manufacture: Belimo
Type: Rotary actuator
Model: SM24AMPTP

Torque motor: 20 Nm
Nominal voltage: 24 V AC/DC
Nominal voltage frequency: 50/60 Hz
Power consumption in operation: 3.5 W
Power consumption in rest position: 1.4 W
Power consumption for wire sizing: 6 VA
Position feedback U: 2 … 10 V DC
Operating range Y: 2 … 10 V DC
Running time motor: 150 s / 90°
Angle of rotation Max.: 95°
Degree of protection: IP54
Ambient temperature: -30 … 50°C
Dimensions: 58 x 88 x 196 mm
