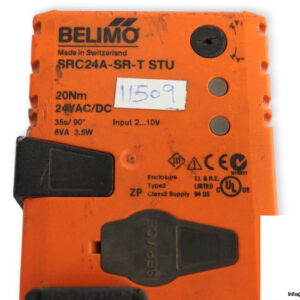

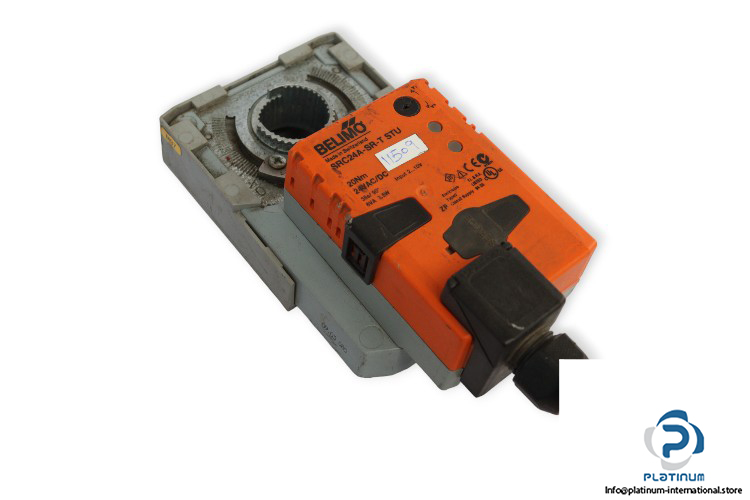

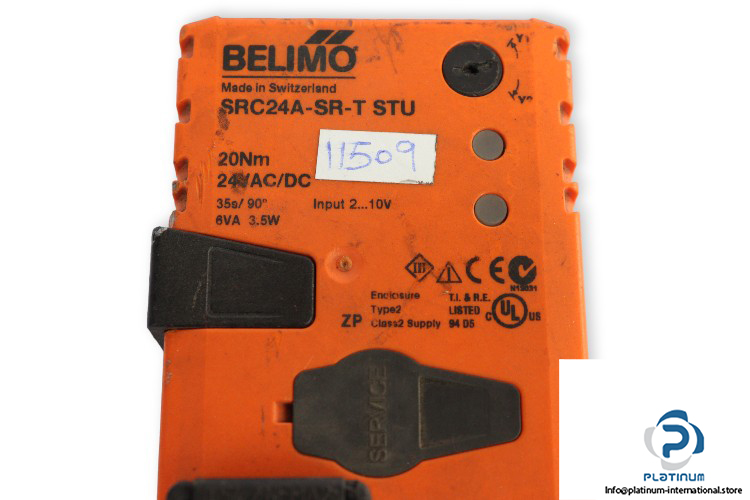

Manufacture: Belimo
Type: Rotary actuator
Model: SRC24ASRTSTU

Torque motor: 20 Nm
Nominal voltage: 24 V AC/DC (19.2 … 28.8 V AC / 21.6 … 28.8 V DC)
Nominal voltage frequency: 50/60 Hz
Power consumption in operation: 3.5 W
Power consumption in rest position: 1.5 W
Power consumption for wire sizing: 6 VA
Pollution degree: 3
Operating range Y: 2 … 10 V
Position feedback U: 2 … 10 V
Angle of rotation max.: 90°
Running time motor: 35s
Degree of protection: IP54
Ambient temperature: -30 … 50°C
Dimensions: 86 x 93 x 206 mm
