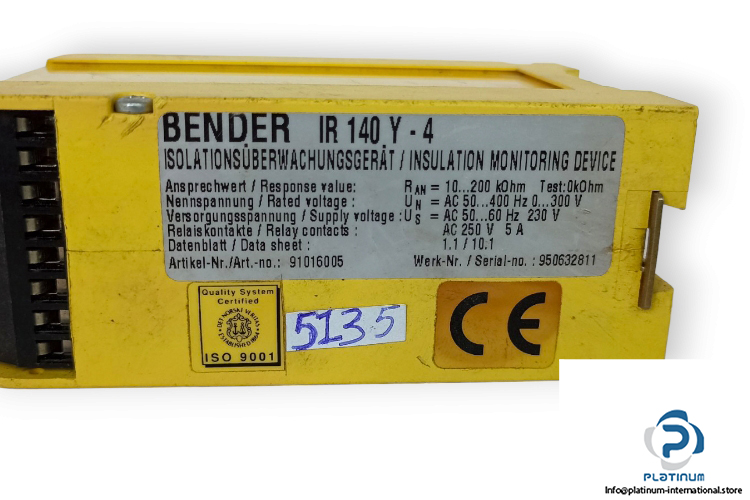

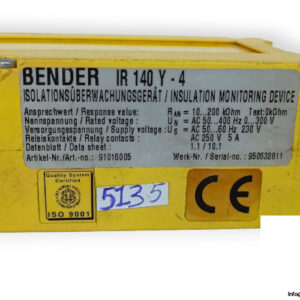

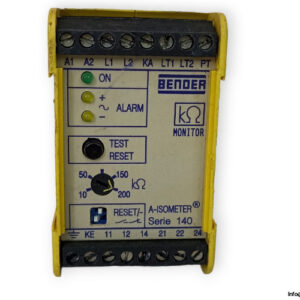

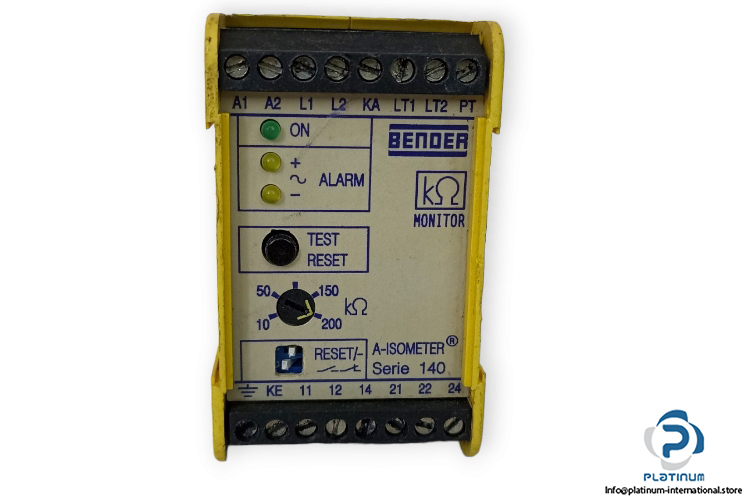

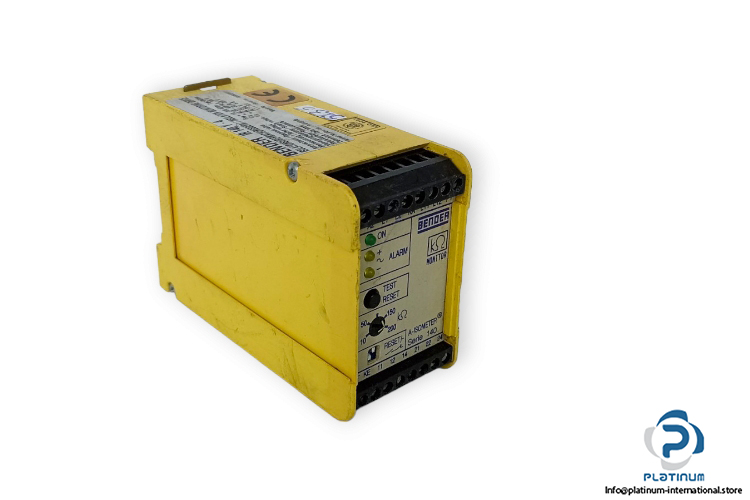

Manufacturer: BENDER
Type: Insulation Monitoring Device
Model: IR140Y-4
Art No.: 91016005

Supply Voltage: 230 V AC
Response Value: 10…200 kΩ
System Leakage Capacitance C: < 20 μF
Response time: < 0,8 s
Measuring Voltage: < 20 V
Measuring Current max: 0.17 mA
Internal resistance/impedance: > 120 kΩ/98 kΩ
Max. admissible Extraneous DC voltage: 300 V
Nominal Voltage range: 0 … 300 V AC
Ambient temperature range: -10 … 55 °C
