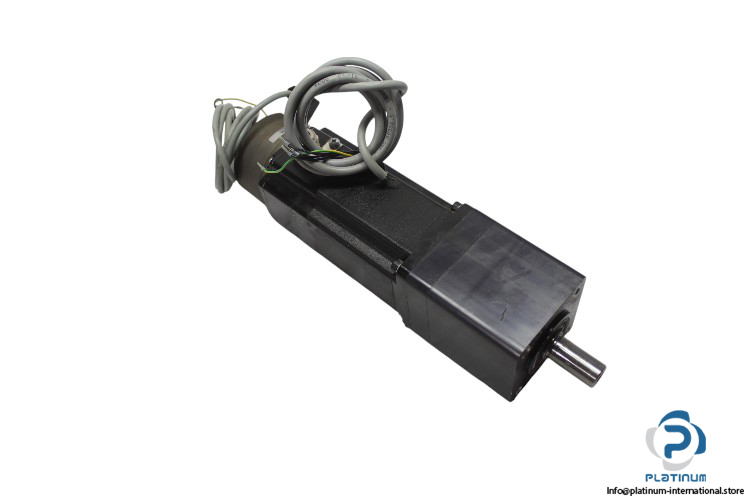

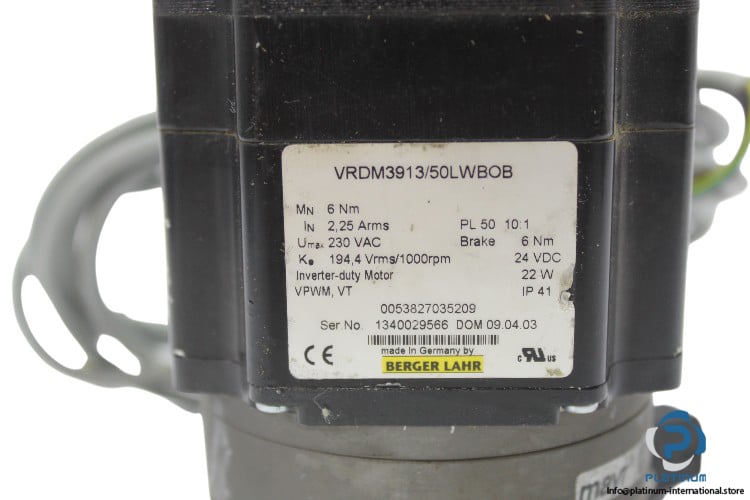

Berger Lahr VRDM3913/50LWBOB Stepper Motor with Gear
The Berger Lahr Stepper Motor with Gear VRDM3913/50LWBOB is designed for high precision and reliable performance in industrial applications. It features a maximum voltage of 230 V AC and a rated current of 2.25 Arms, ensuring efficient torque generation with a high IP41 protection rating.
Manufacturer: Berger Lahr
Model: VRDM3913/50LWBOB
Type: Stepper Motor with Gear
Part No.: 0053827035209
Technical Information:
- Max. Voltage: 230 V AC
- Rated Current: 2.25 Arms
- Rated Torque: 6 Nm
- Brake Voltage: 24 V DC
- Brake Power: 22 W
- Brake Torque: 6 Nm
- Class: F
- IP Rate: IP41

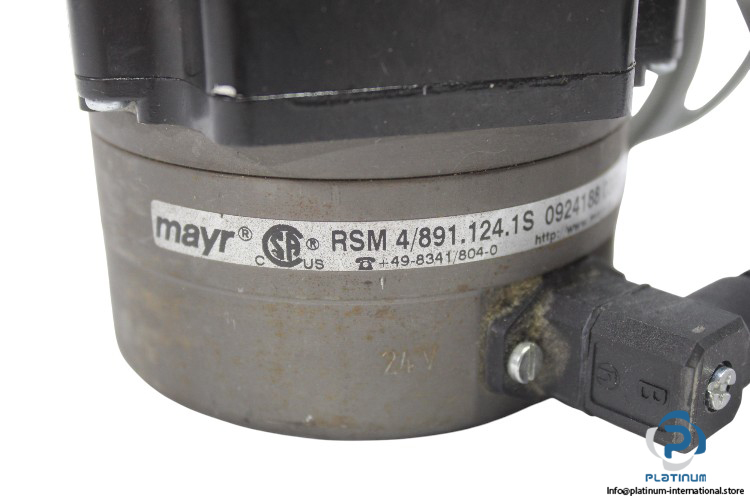

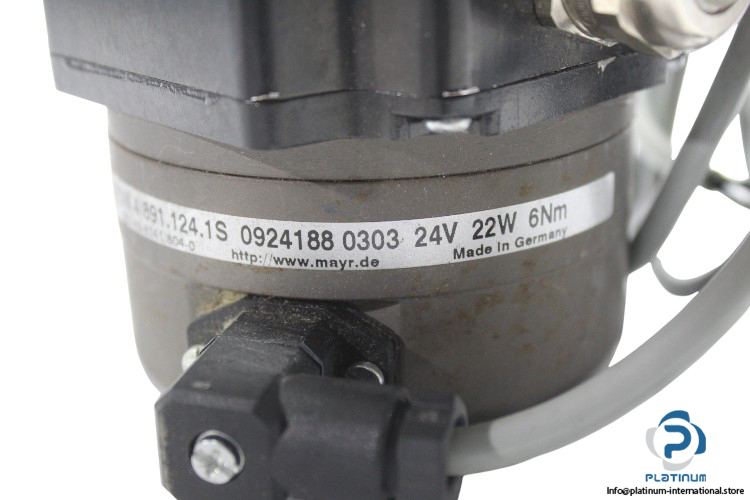

Attachment 1: MAYR RSM 4/891.124.1S MOTOR BRAKE
Mayr Motor Brake “ RSM 4/891.124.1S
Manufacturer: Mayr
Model: RSM 4/891.124.1S
Type: Motor Brake
- Voltage: 24 V
- Power: 22 W
- Torque: 6 Nm

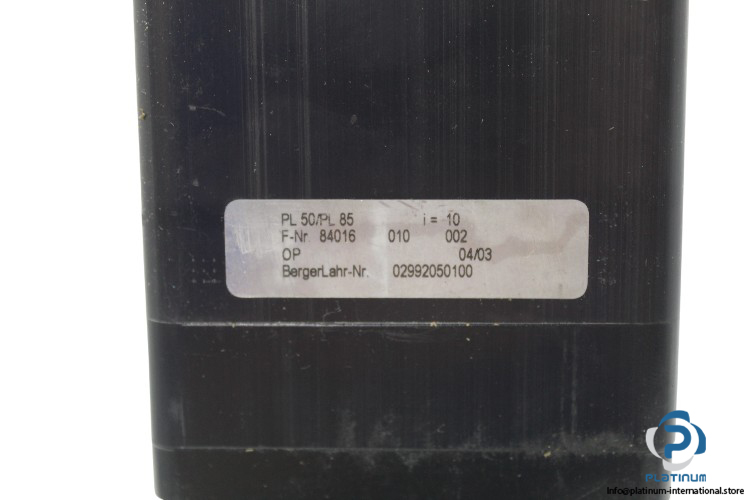

Attachment 2: BERGER LAHR PL50/PL85 GEAR
Berger Lahr Gear “ PL50/PL85
Manufacturer: Berger Lahr
Model: PL50/PL85
Part No.: 02992050100
- Ratio: 10
