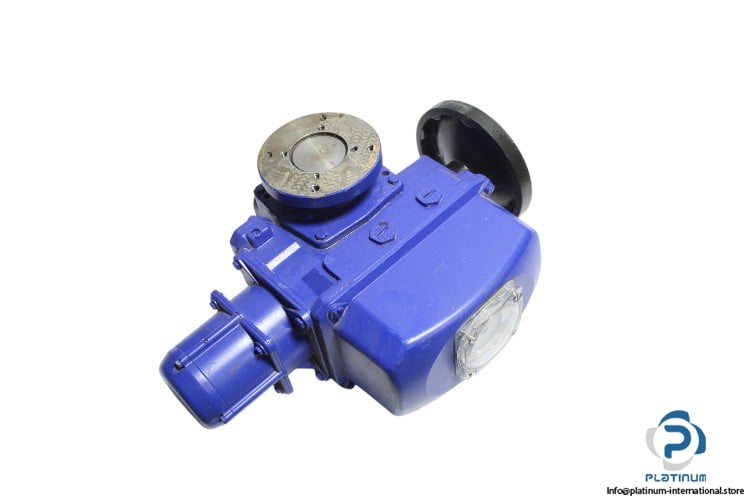

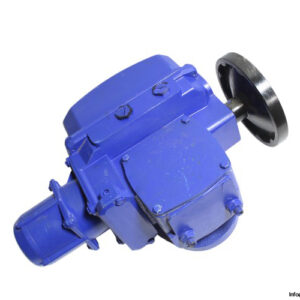

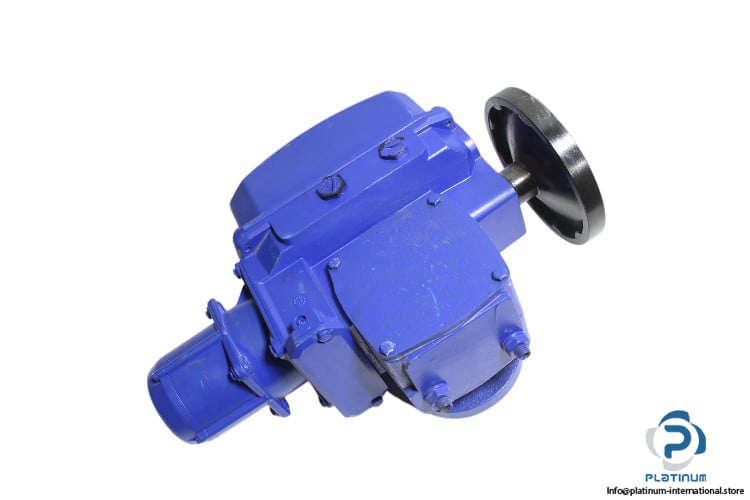

Bernard Controls ASP Valve Actuator
The Bernard Controls ASP Valve Actuator is a high-performance actuator designed for precise valve control in industrial applications. With a robust build, efficient motor, and reliable torque output, it ensures smooth and efficient operation in demanding environments.

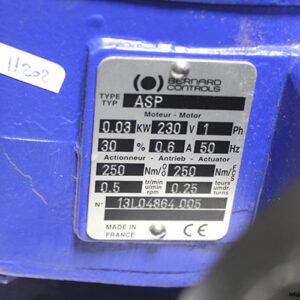

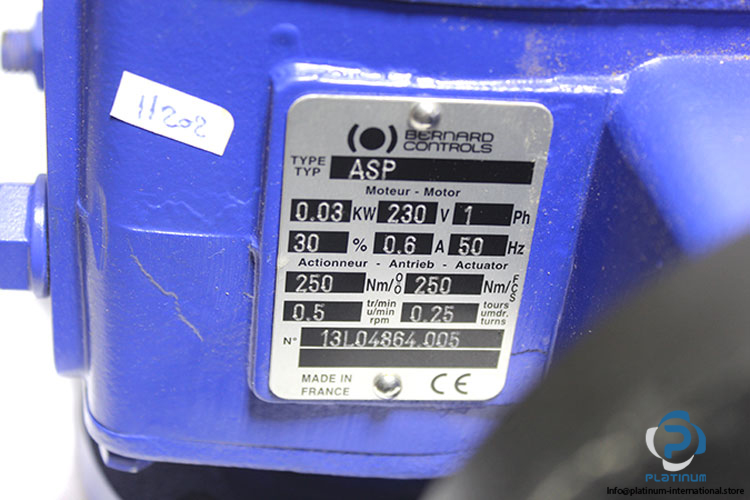

- Manufacturer: Bernard Controls
- Type: Valve Actuator
- Model: ASP
- Order No.: 13L04864.005
Technical Information
- Flange: F10
- Power: 0.03 kW
- Voltage: 230 V – 1 phase
- Current: 0.6 A
- Frequency: 50 Hz
- Efficiency: 30%
- Speed: 0.5 rpm
- Motor Torque: 250 Nm
- Center of Gravity: 40 x 46 x 88 mm
- Dimensions: 459 x 313 x 180 mm
- Handwheel Diameter: 160 mm
- Ambient Operating Temperature: -20 to +70 °C
Designed for precise and reliable valve automation, the Bernard Controls ASP ensures optimal performance and durability across various industrial applications.
