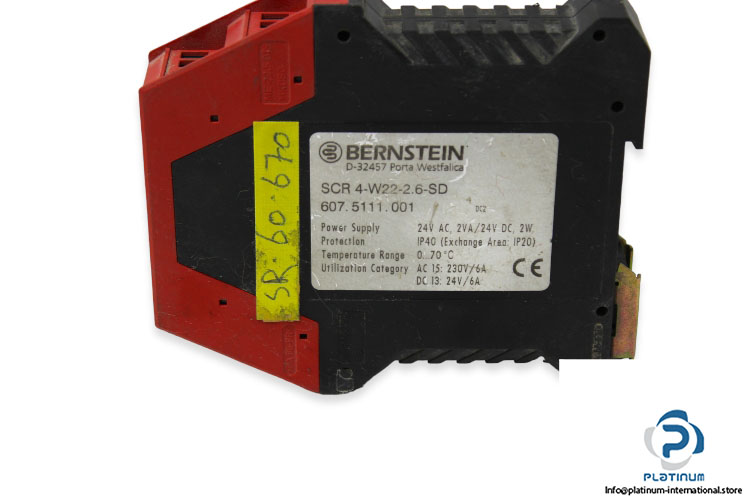

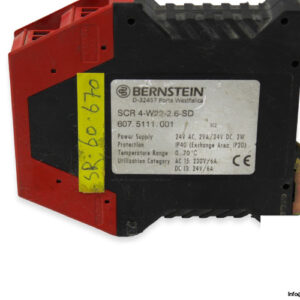

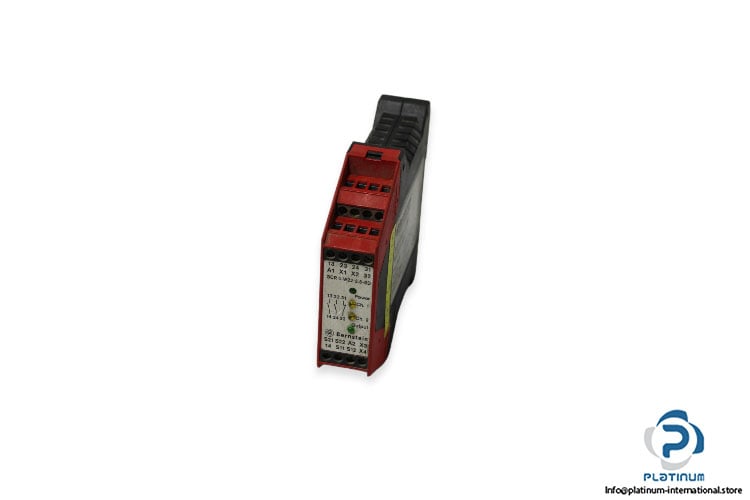

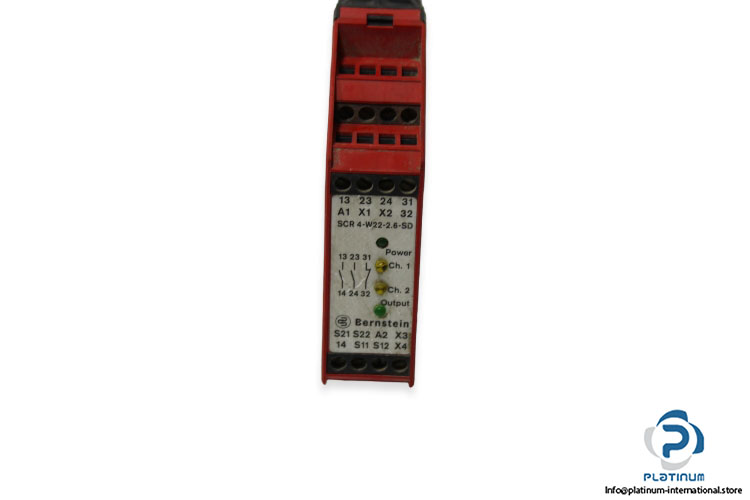

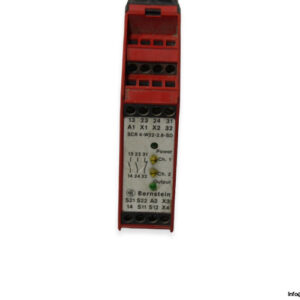

Manufacturer: Bernstein

Type: Safety Relay

Model: SCR 4-W22-2.6-SD

Art No.: 607.5111.001

Power supply: 24 V AC, 2 VA / 24 V DC, 2 W

Max. power consumption: 60 Ma

Number of channels: 2 channels

Contact/s type: 2 Normally open, 1 Normally closed

Output switching voltage: AC 15: 230V / 6A, DC 13: 24V / 6A

Temperature range: 0 … +70 °C

Degree of Protection:  terminal IP 40, Enclosure IP 20

Dimensions: 22.5 x 99 x 114.5
