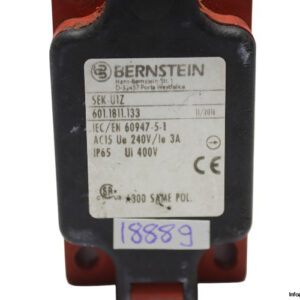

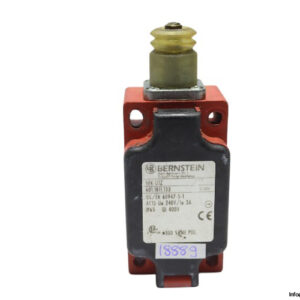

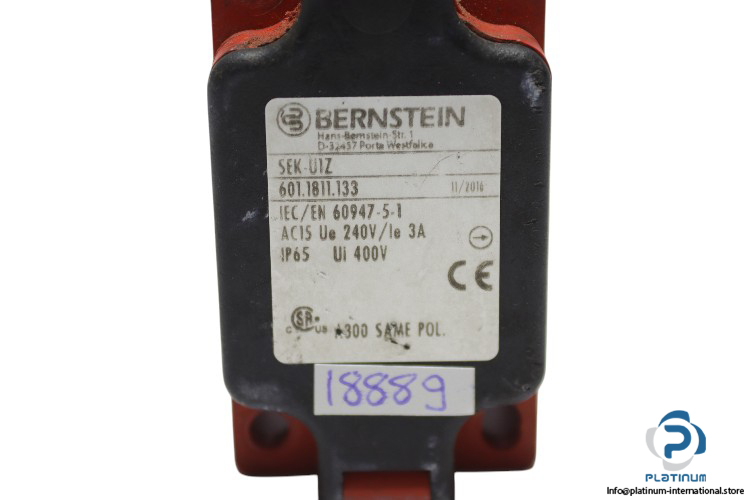

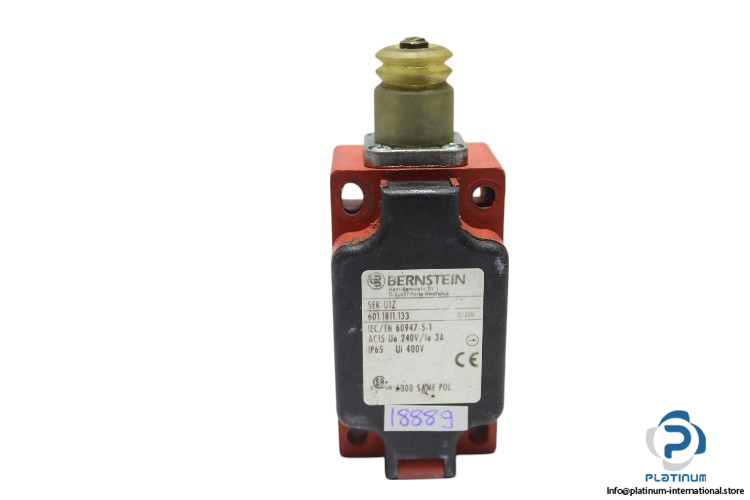

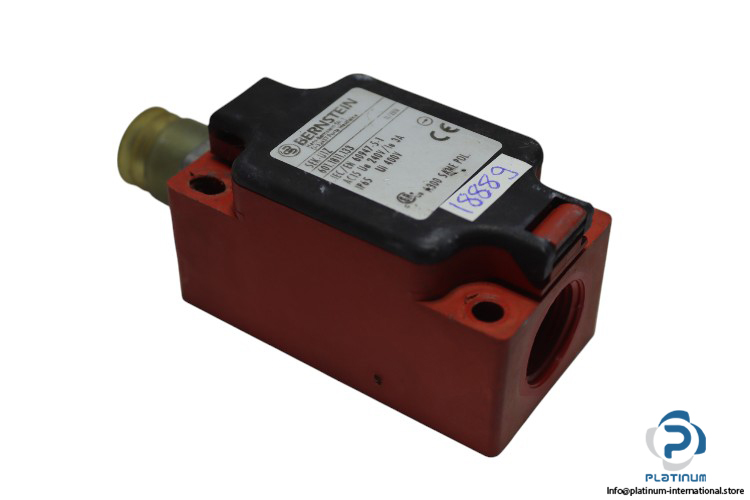

Bernstein SEKU1Z Rope Pull Switch Body
The **Bernstein SEKU1Z Rope Pull Switch Body** is designed for safety-critical applications, offering **400 V AC rated insulation voltage** and **240 V rated operational voltage**. It features **1 NC** and **1 NO contact type** for reliable operation. With a **rated operational current** of **3 A at 240 V AC15**, this switch is ideal for environments where protection and durability are paramount. The **IP65** degree of protection ensures it performs reliably even in harsh conditions, while the **ambient temperature range** of **-30 to +80 °C** provides versatility for different industrial environments.
- Manufacturer: Bernstein
- Type: Rope Pull Switch Body
- Model: SEKU1Z
Technical Information
- Rated Insulation Voltage (Ui): 400 V AC
- Rated Operational Voltage (Ue): 240 V
- Rated Operational Current: 3 A at 240 V AC15
- Short-Circuit Protective Device: Fuse 10 A gL/gG
- Conventional Enclosed Thermal Current (Ith): 10 A
- Contact Type: 1 NC, 1 NO
- Connection: 4 Screw Terminals (M3,5)
- Cable Entrance: 1 x M20x1,5
- Enclosure Material: Thermoplastic, Glass Fibre Reinforced
- Cover Material: Thermoplastic, Glass Fibre Reinforced
- Ambient Air Temperature: -30 to +80 °C
- Standard: IEC/EN 60947-5-1
- Degree of Protection: IP65
The **Bernstein SEKU1Z Rope Pull Switch Body** ensures safety and durability, making it perfect for industrial environments that require robust performance under tough conditions.
