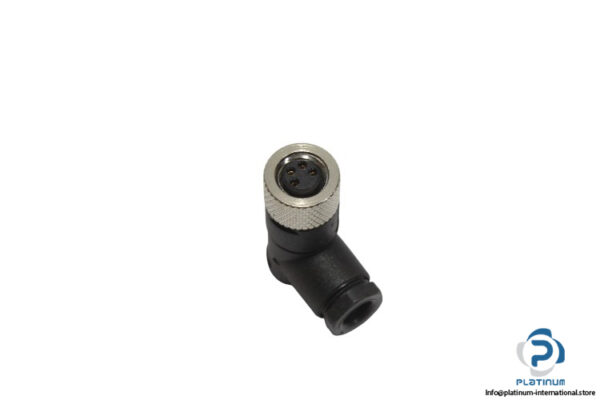

BINDER SERIE 768 Connector
The BINDER SERIE 768 (Part No. 99-3378-00-04, COMAS Part No. 0.476.120.001.010) is a compact and robust M8 connector engineered for reliable electrical connections in harsh environments. With IP67 protection, screw locking, and a wide temperature range, it is ideal for industrial automation and sensor applications.
- Manufacturer: BINDER
- Type: Connector
- Model: SERIE 768
- Part No.: 99-3378-00-04
- COMAS Part No.: 0.476.120.001.010
Technical Information:
- Rated Voltage: 60 V
- Test Voltage: 800 V
- Rated Current (40°C): 4 A
- Locking System: Screw M8x1
- Cable Outer Ø: 3.5 “ 5 mm
- Wire Gauge (AWG): 26 “ 20 (screw), 24 (solder)
- Degree of Protection: IP67
- Temperature Range: -40 to 85 °C
