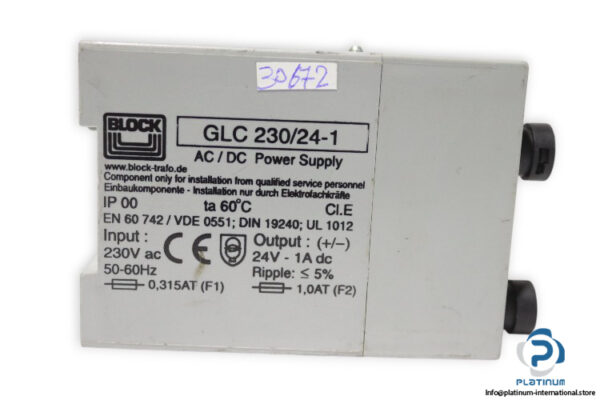

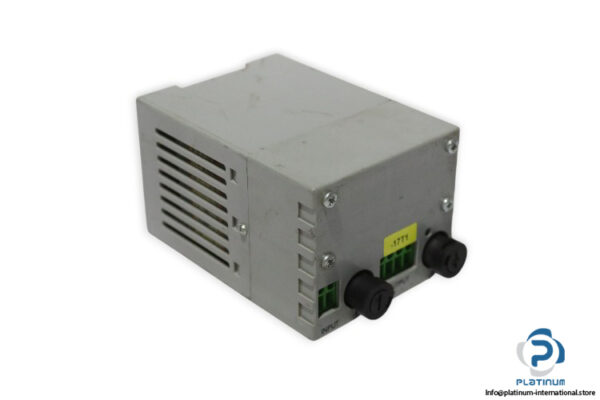

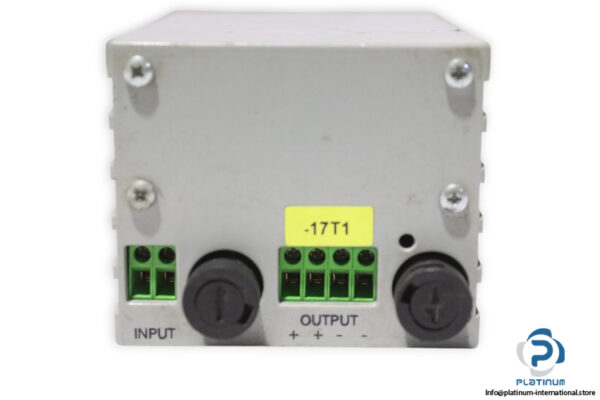

BLOCK GLC230/24-1 AC/DC Power Supply
The BLOCK GLC230/24-1 from the GLC series is a reliable single-phase, non-stabilized DC power supply designed for industrial use. With compact dimensions and high-quality standards, it provides efficient conversion from 230 Vac to 24 Vdc, ensuring dependable performance in various applications.
Manufacturer: BLOCK
Type: AC/DC Power Supply
Model: GLC230/24-1
Series: GLC
Technical Information
- Input Voltage: 230 Vac
- Output Voltage: 24 Vdc
- Output Current: 1.00 A
- Design: Single-phase, Non-stabilized DC Power Supply
- Dimensions (W/H/D): 85 x 116 x 62.5 mm
- Ambient Temperature: 140 °F / +60 °C
- Protection Index: IP 00
- Standards: EN 60 742, VDE 0551, DIN 19240, UL 1012
