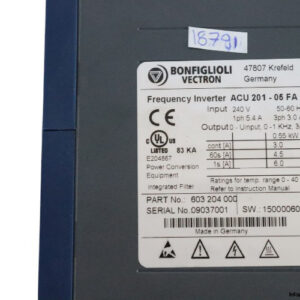

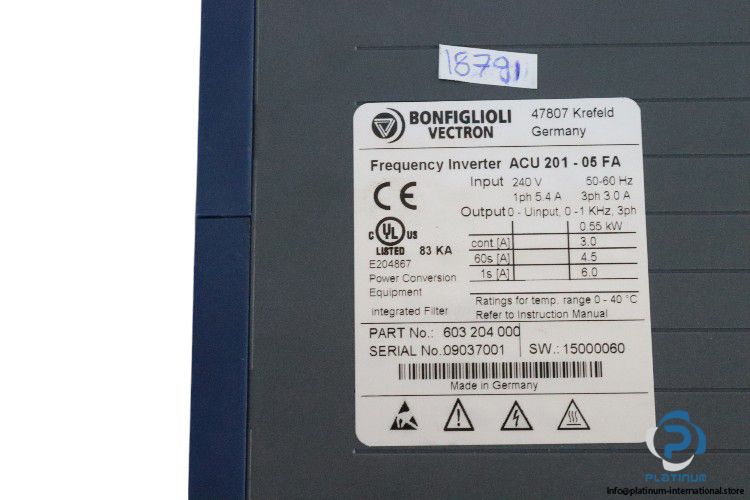

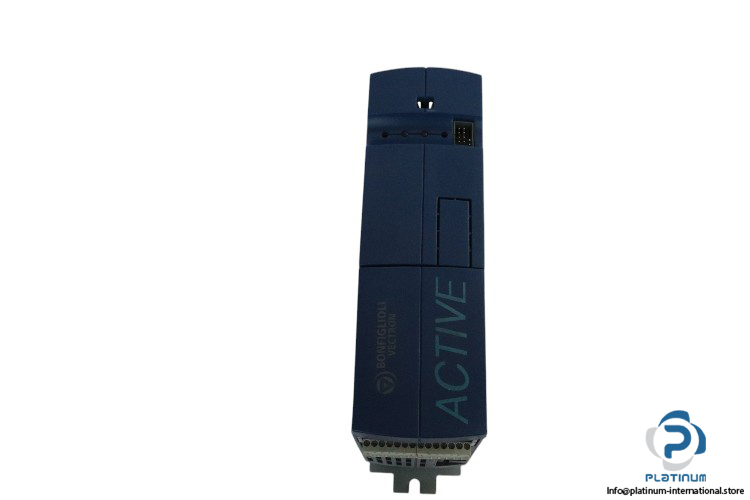

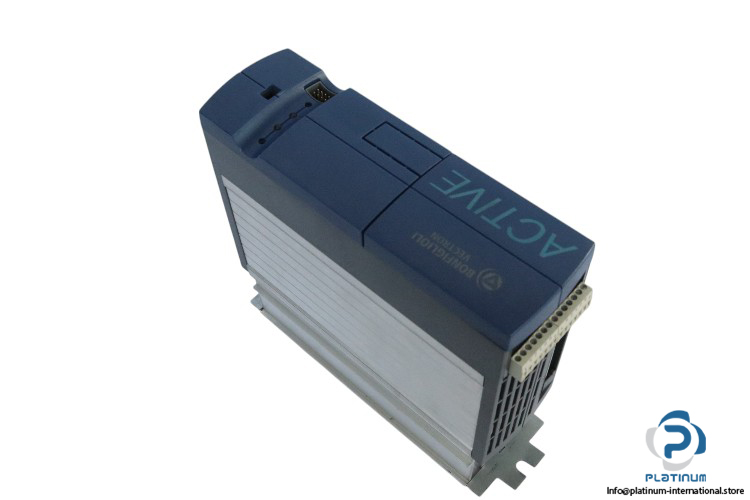

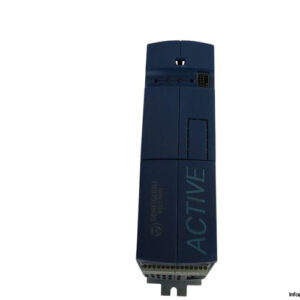

Bonfiglioli Vectron ACU201-05 FA Inverter
The Bonfiglioli Vectron ACU201-05 FA Inverter offers efficient motor control with a power rating of 0.55 kW and a wide frequency range of 0 to 1 kHz. With precise control over motor speed and an overload protection system, this inverter is ideal for industrial applications where reliable performance and high efficiency are required.
- Manufacturer: Bonfiglioli Vectron
- Type: Inverter
- Model: ACU201-05 FA
- Part No.: 603 204 000
- Series: ACU 201
Technical Information
- Input Voltage: Single-3 phase/240 V AC
- Rated Current (Input): 5.4 / 3 A
- Input Frequency: 50/60 Hz
- Output Voltage: 3 phase/0 to 240 V AC
- Rated Current (Output): 3 A (continuous)
- Long-Term Overload Current (60 s): 4.5 A
- Short-Term Overload Current (1 s): 6 A
- Output Frequency: 0 to 1 kHz
- Power: 0.55 kW
- Ambient Temperature: 0 to 40°C
- Dimensions: 190 x 60 x 175 mm
The Bonfiglioli Vectron ACU201-05 FA Inverter ensures reliable motor control in demanding industrial environments, providing continuous performance with efficient power management.
