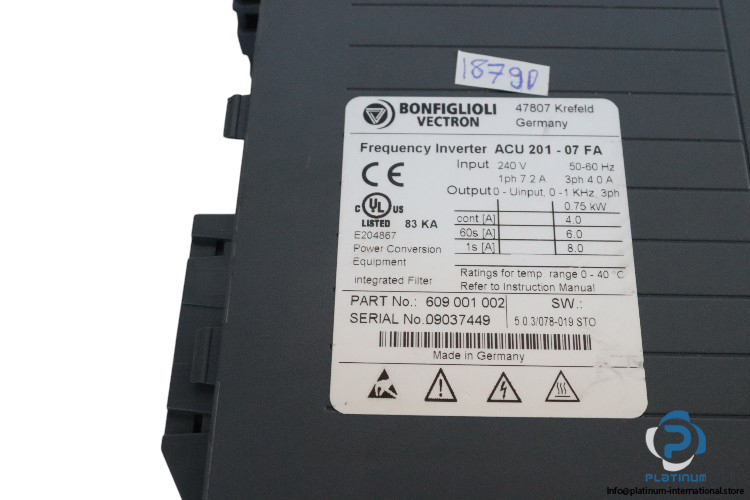

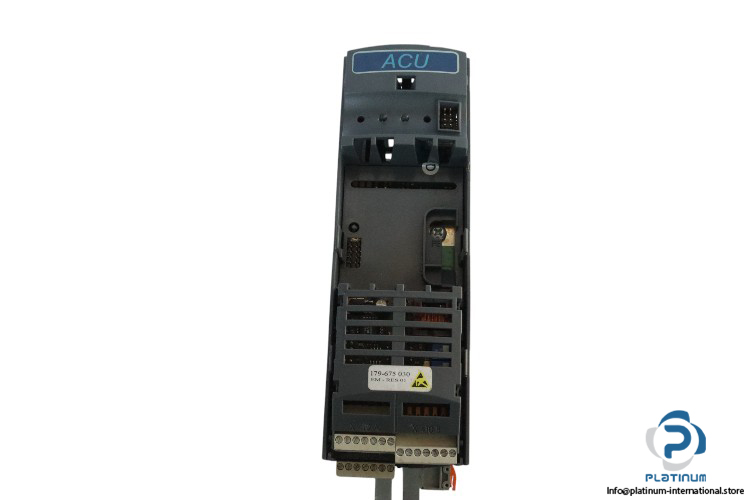

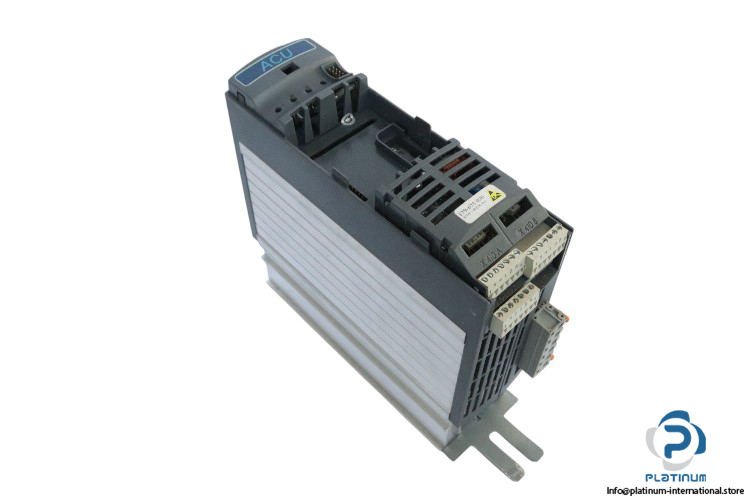

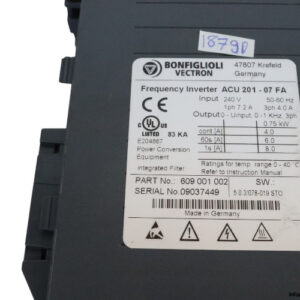

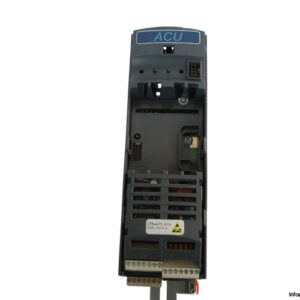

Bonfiglioli Vectron ACU201-07 FA Inverter
The Bonfiglioli Vectron ACU201-07 FA Inverter is designed for high-performance motor control in industrial applications. With a power rating of 0.75 kW and a frequency range of 0 to 1 kHz, it provides reliable and efficient operation for motor speed control systems. Its IP20 protection class and vertical installation position make it suitable for various demanding environments.
- Manufacturer: Bonfiglioli Vectron
- Type: Inverter
- Model: ACU201-07 FA
- Part No.: 609 001 002
- Series: ACU 201
Technical Information
- Input Voltage: Single-3 phase/240 V AC
- Rated Current (Input): 7.2 / 4 A
- Input Frequency: 50/60 Hz
- Output Voltage: 3 phase/0 to 240 V AC
- Rated Current (Output): 4 A (continuous)
- Long-Term Overload Current (60 s): 6 A
- Short-Term Overload Current (1 s): 8 A
- Output Frequency: 0 to 1 kHz
- Power: 0.75 kW
- Type of Protection: IP20
- Installation Position: Vertical
- Ambient Temperature: 0 to 40°C
- Dimensions: 190 x 82 x 140 mm
The Bonfiglioli Vectron ACU201-07 FA Inverter ensures efficient motor control with reliable overload protection, making it ideal for industrial environments requiring precise and robust performance.
