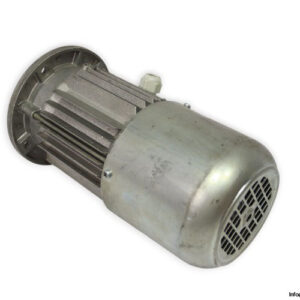

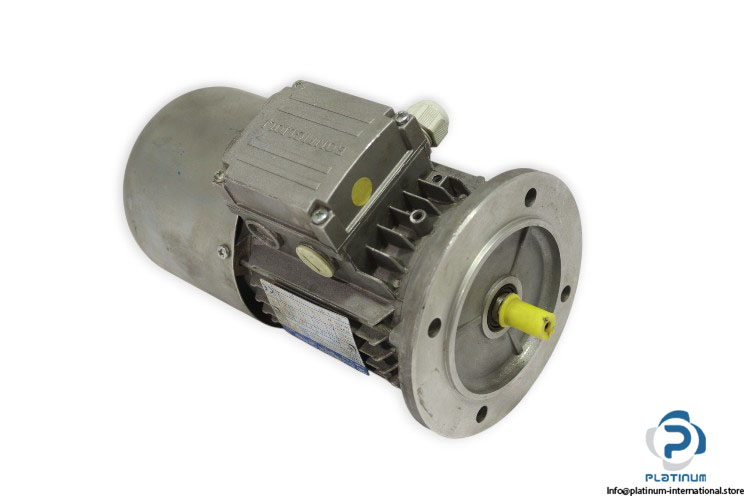

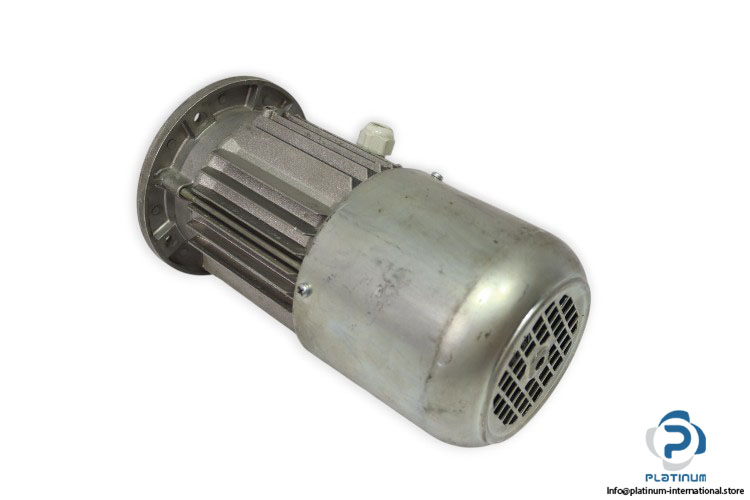

Bonfiglioli BN63C2FA Brake Motor

The Bonfiglioli BN63C2FA is a compact and efficient brake motor engineered for reliable performance in industrial drive applications. With continuous duty operation, high protection class, and versatile mounting, it delivers durability, precision, and consistent torque in automation and machinery systems.

Manufacturer: Bonfiglioli
Type: Brake Motor
Model: BN63C2FA
Part No.: 438959
Code: 8H11010015 -11205715

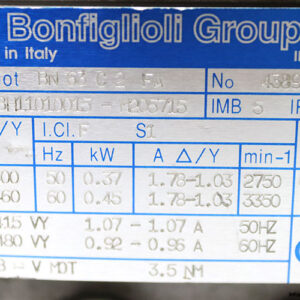

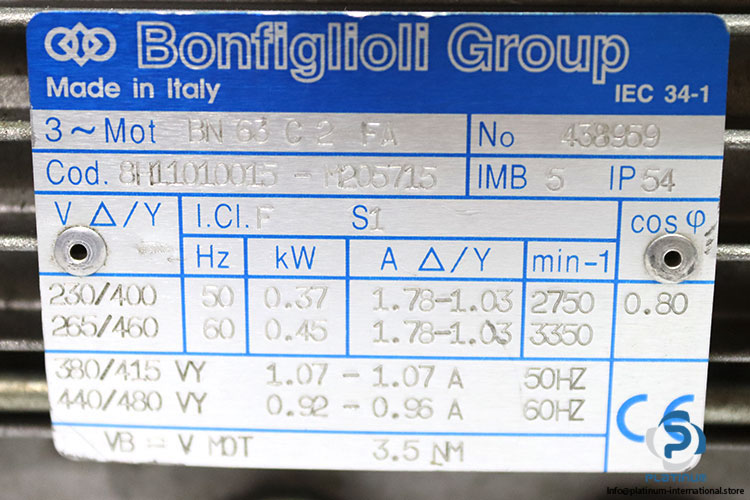

Technical information

• No. of Poles: 2
• Size: 63
• Mounting: IMB5
• Protection Class: IP54
• Voltage: 230/400 V, 380/415 V @ 50 Hz; 265/460 V, 440/480 V @ 60 Hz
• Power Output: 0.37 kW @ 50 Hz, 0.45 kW @ 60 Hz
• Current (Δ/Y): 1.78 “ 1.03 A; 1.07 “ 1.07 A @ 50 Hz; 0.92 “ 0.96 A @ 60 Hz
• Speed: 2750 rpm @ 50 Hz / 3350 rpm @ 60 Hz
• Cos φ (Power Factor): 0.80
• Insulation Class: F
• Duty Cycle: S1 (continuous duty)
• Torque: 3.5 Nm
