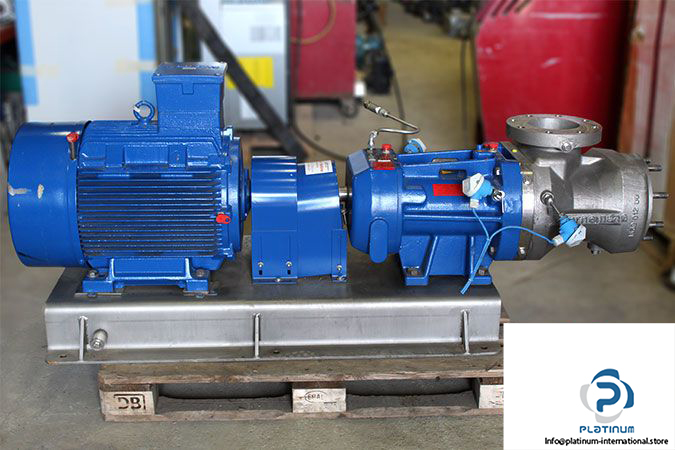

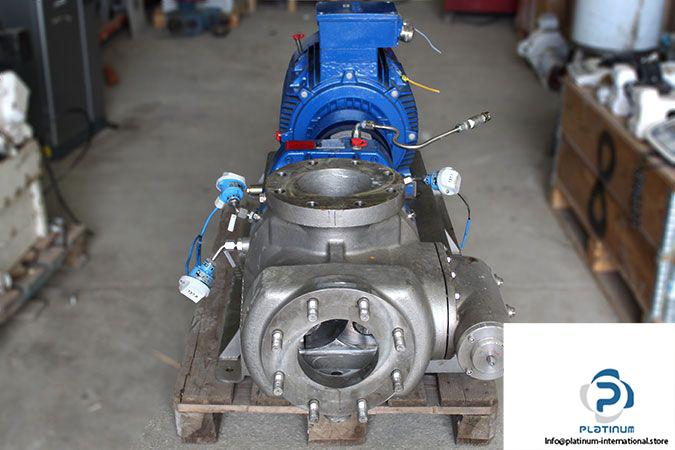

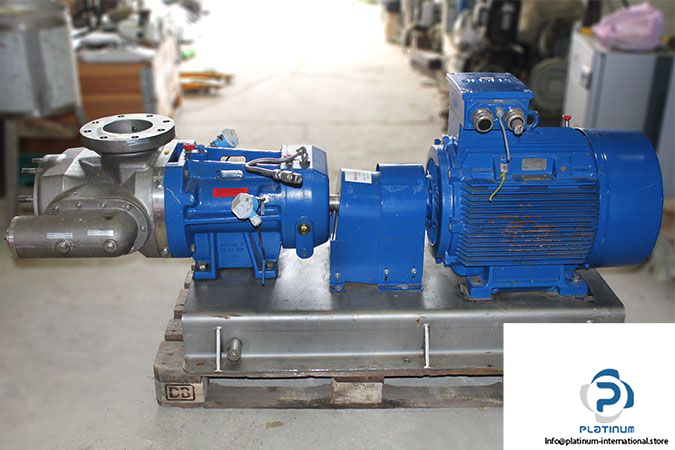

BORNEMANN SL 180-40 TWIN SCREW PUMP WITH SIEMENS MOTOR & ENDRESS+HAUSER SENSOR

The Bornemann SL 180-40 Twin Screw Pump is a high-performance, precision-engineered pump built to handle demanding industrial applications. Designed for efficiency, this unit delivers excellent flow rates and operates under high-pressure conditions, making it ideal for continuous-duty operations.

It includes a powerful Siemens low-voltage electric motor and an Endress+Hauser temperature sensor, offering a complete, integrated pumping solution.

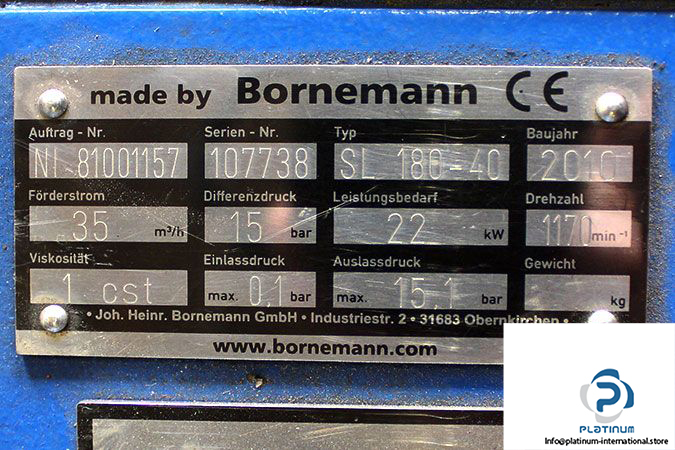

Manufacturer: BORNEMANN
Type: Twin Screw Pump
Model: SL 180-40
Order No.: 81001157
Serial No.: 107738

Pump Specifications

• Size: 180
• Slope: 40
• Flow Rate: 35 m³/h
• Differential Pressure: 15 bar
• Max. Admission Pressure: 0.1 bar
• Max. Outlet Pressure: 15.1 bar
• Power Requirement: 22 kW
• Speed: 1170 min»¹
• Viscosity: 1 cSt

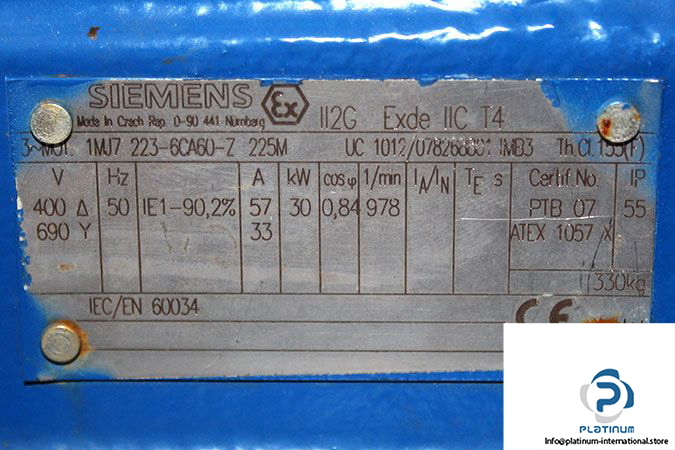

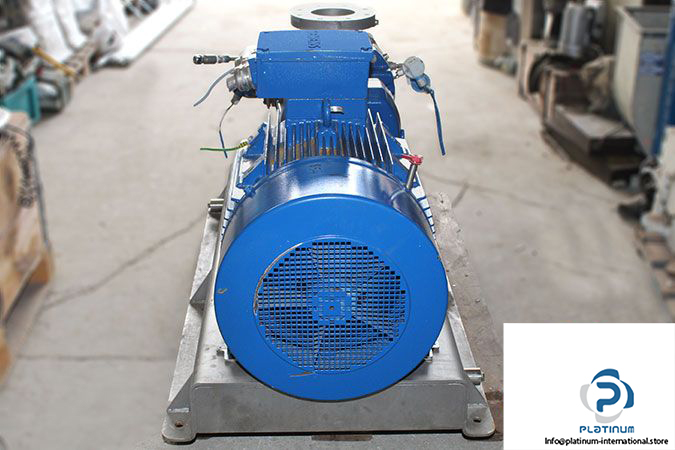

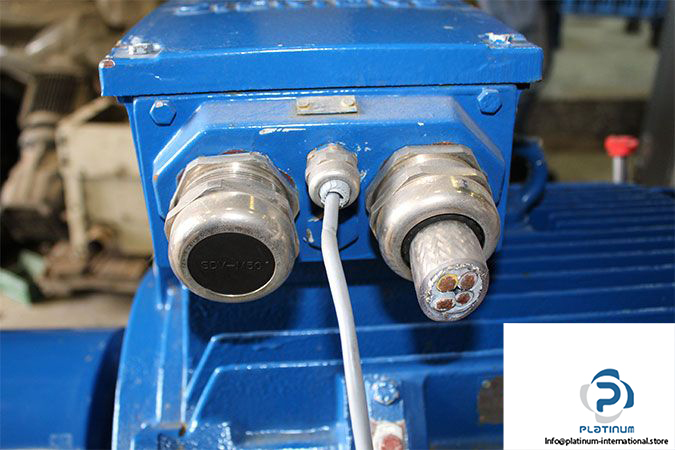

Electric Motor (SIEMENS 1MJ7 223-6CA60-Z 225M)

• Input Voltage (Star): 690 V AC
• Input Voltage (Delta): 400 V AC
• Input Current (Star): 33 A
• Input Current (Delta): 57 A
• Frequency: 50 Hz
• Output Power: 30 kW
• Speed: 978 min»¹
• Insulation Class: F
• Protection Class: IP55

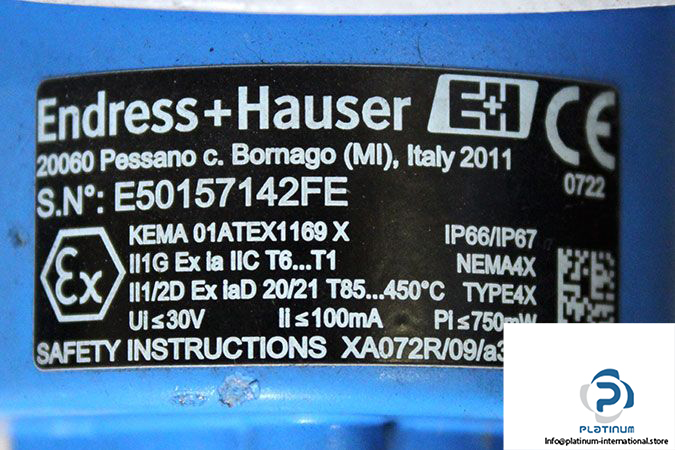

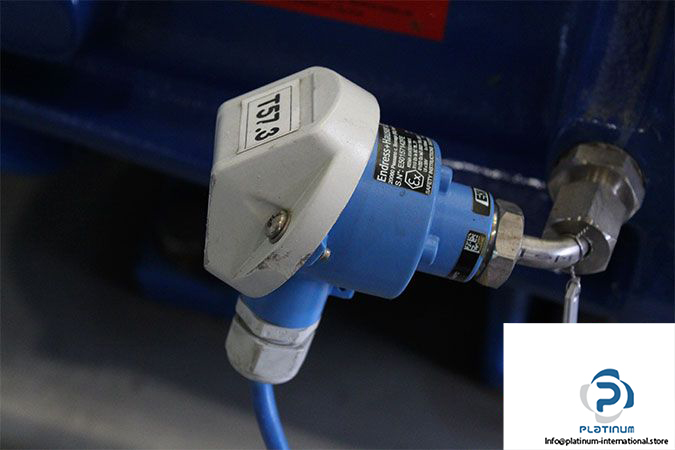

Temperature Sensor (Endress+Hauser TR12-EAD1SAC30000)

• Voltage: 30 V
• Current Consumption: 100 mA
• Power: 750 mW
• Temperature Range: 85“450 °C
• Size: NEMA4X
• Protection Proof: EX
• Protection Class: IP66/IP67
