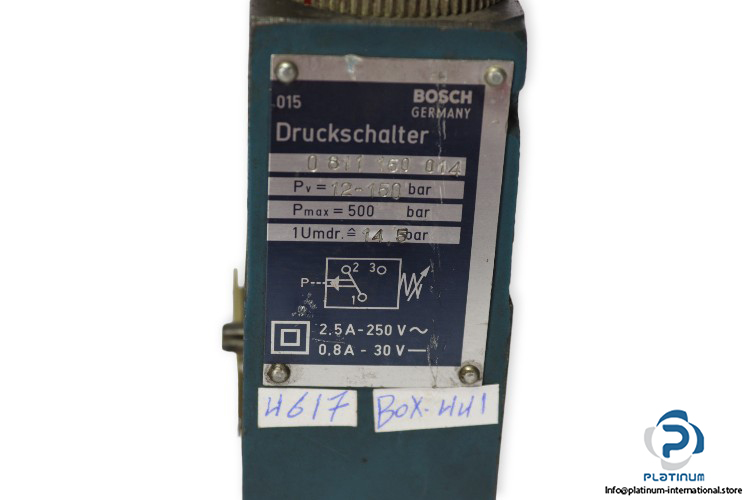

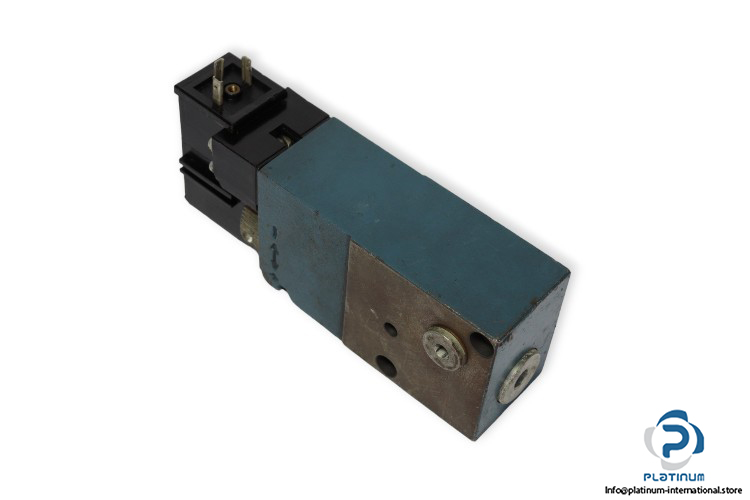

BOSCH / REXROTH 0811160014 PRESSURE SWITCH

The BOSCH / REXROTH 0 811 160 014 Pressure Switch is designed for precise and reliable pressure monitoring in demanding pneumatic and hydraulic systems. Its robust design, wide measuring range, and high protection class make it suitable for various industrial environments.

Manufacturer: BOSCH / REXROTH
Type: Pressure Switch
Model: 0 811 160 014

Technical Information

• Pressure Measuring Range: 12 / 150 bar
• Operating Pressure Max.: 500 bar
• Switching Contact: Change-over (CO)
• Contact Voltage: 250 V AC, 30 V DC
• Contact Current: 2.5 A / 0.8 A
• Electrical Connection: Plug Connection
• Pneumatic Connection: Sub-plate
• Protection Class: IP65
• Fluid Temperature Range: -25 / 80 °C
