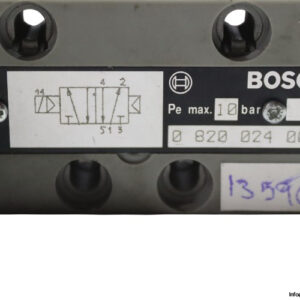

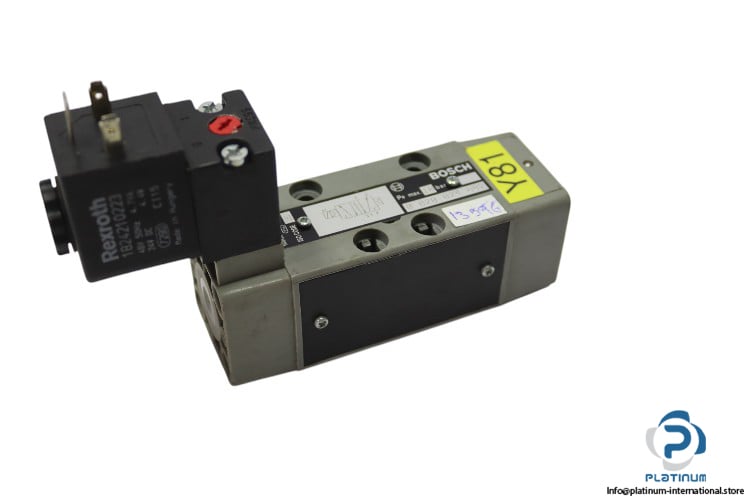

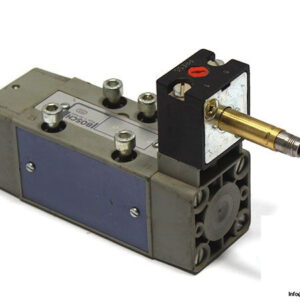

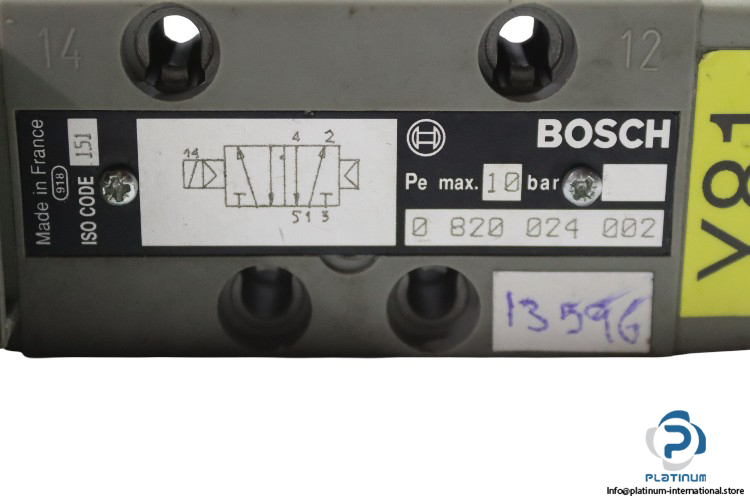

Bosch Rexroth 0820024002 Single Solenoid Valve
The Bosch Rexroth 0820024002 Single Solenoid Valve is an advanced component designed for precise control in pneumatic systems. With an electrically actuated mechanism, it provides reliable performance for air flow management, with a high flow rate and solid protection against dust and water ingress, thanks to its IP65 rating.
Manufacturer: Bosch Rexroth
Type: Single Solenoid Valve
Model: 0820024002
Technical Data:
- Type of Actuation: Electrically
- Max Operating Pressure: 10 bar
- Fluid: Air
- Flow Rate: 1060 l/min
- Pneumatic Connection: Sub-Based
- Ambient Temperature: -10 / 50 °C
- Protection Class: IP65

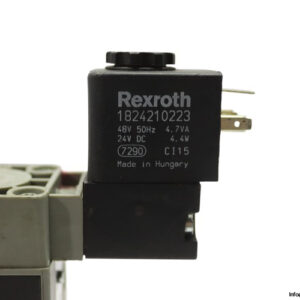

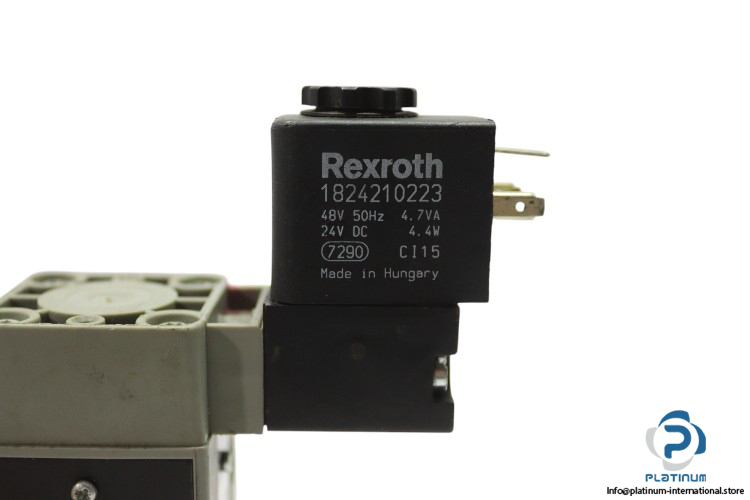

Attached Solenoid Coil:
- Manufacturer: Bosch Rexroth
- Type: Solenoid Coil
- Model: 1824210223
- Voltage: 48 VAC, 24 VDC
- Frequency: 50 Hz
- Power: 4.7 VA, 4.4 W
