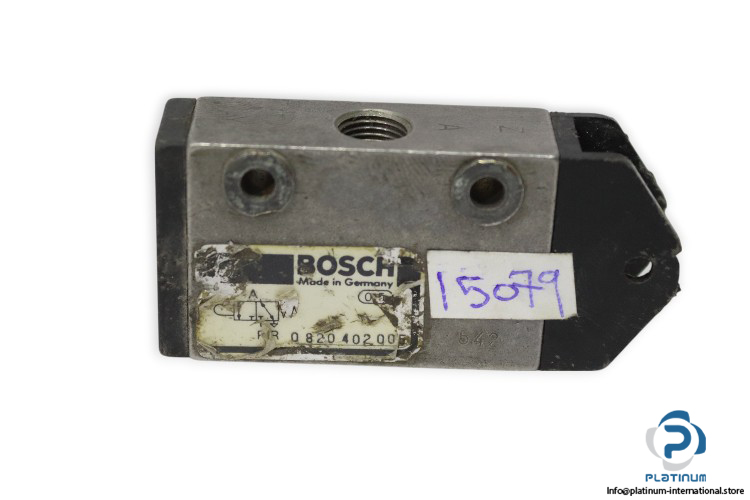

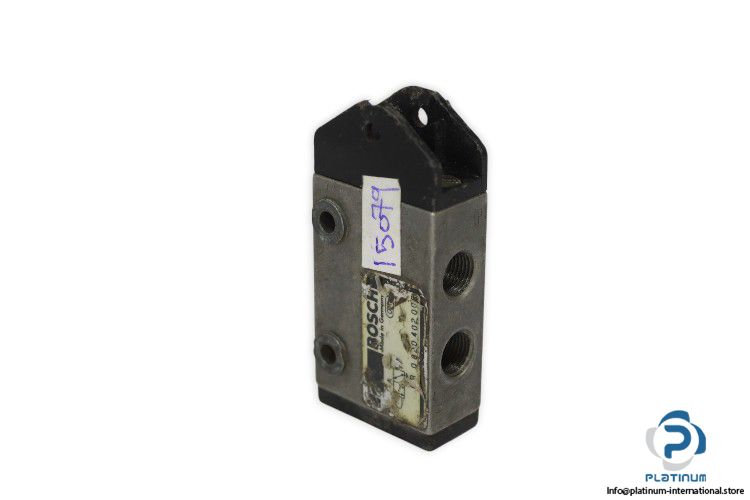

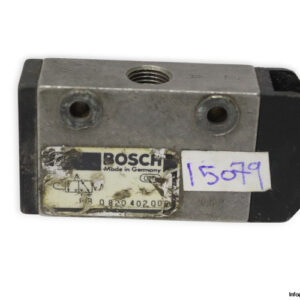

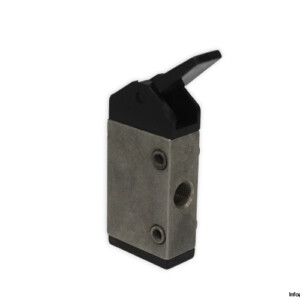

BOSCH 0 820 402 005 DIRECTIONAL VALVE
The Bosch 0 820 402 005 is a compact, efficient directional valve designed for pneumatic applications. Built from durable polyamide, it ensures reliable air flow control in various industrial environments.
Manufacturer: Bosch
Type: Directional Valve
Model: 0 820 402 005
Technical Information
- Connection: 1/8 inch
- Operating Pressure: 1 to 10 bar
- Fluid: Air
- Flow Rate: 280 l/min
- Ambient Temperature: -15 to 80 °C
- Max. Particle Size: 5 µm
- Material: Polyamide
- Mounting Screw Tightening Torque: 2.5 Nm
