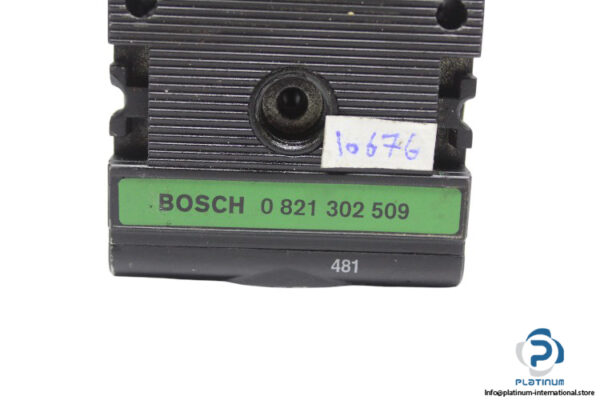

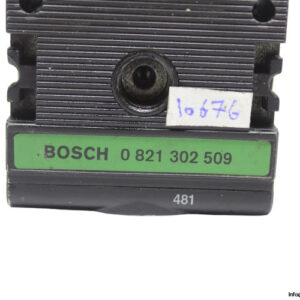

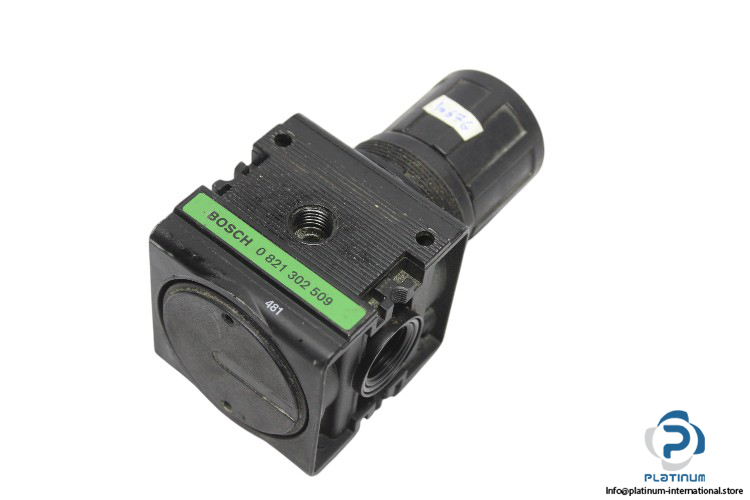

BOSCH PRESSURE REGULATOR
The Bosch Pressure Regulator (Model: 0821302509) is designed to maintain consistent pressure in pneumatic systems. With a flow rate of 9500 l/min and a working pressure range of 0.5 to 16 bar, this pressure regulator provides reliable performance for air systems in various industrial applications. The die-cast aluminum body ensures durability and long-lasting use, while the wide regulation range (0.1 to 3 bar) offers precise control over pressure levels.
Manufacturer: BOSCH
Type: Pressure Regulator
Model: 0821302509
Technical Specifications
- Fluid: Air
- Max. Pressure Gauge Diameter (Blocked State): 63 mm
- Flow Rate: 9500 l/min
- Body Material: Die-cast aluminum
- Working Pressure Range: 0.5 “ 16 bar
- Pressure Regulation Range: 0.1 “ 3 bar
- Temperature of Medium: -10 to 60 °C
- Pneumatic Connection: G1/2
