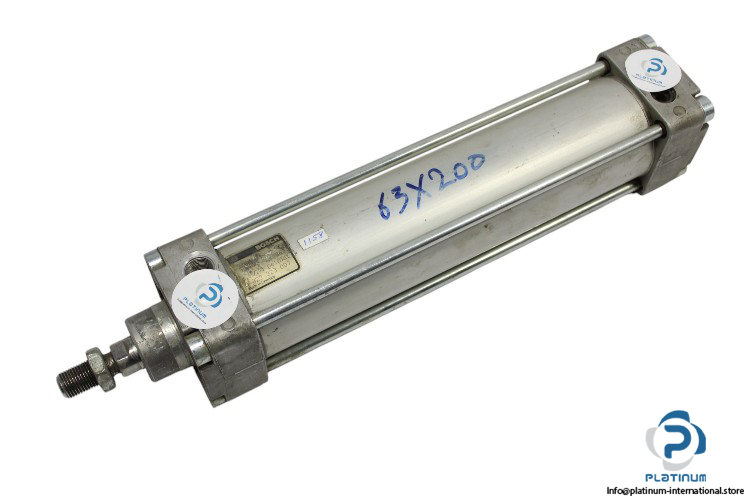

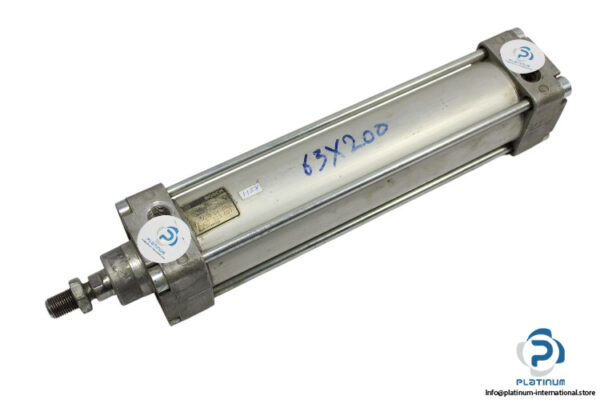

BOSCH ISO Cylinder 0 822 323 007
The BOSCH ISO Cylinder 0822323007 is designed for efficient pneumatic operations. This high-performance cylinder is built to handle compressed air and offers reliable operation with a maximum pressure of 10 bar. It features a bore diameter of 63 mm, a stroke of 200 mm, and is ideal for a variety of industrial applications requiring precise movement and durability.
Manufacturer: BOSCH
Model: 0 822 323 007
Technical Specifications
- Media: Compressed Air
- Bore Diameter: 63 mm
- Stroke: 200 mm
- Bore x Stroke: 63 x 200 mm
- Rod Diameter: 20 mm
- Frame Dimensions: 75 x 310 mm
- Pneumatic Connection: G 3/8
- Pressure Max.: 10 bar
- Operation Mode: Double
- Piston Rod End: Male
- Shape: Square
- Rod Direction: One Side
