Manufacturer: BOSCH

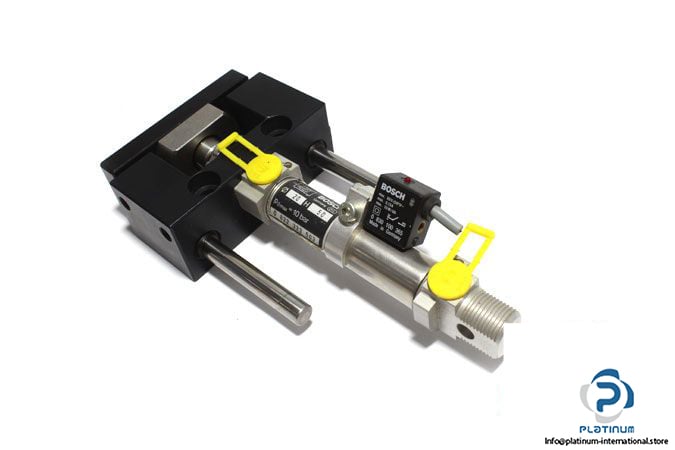

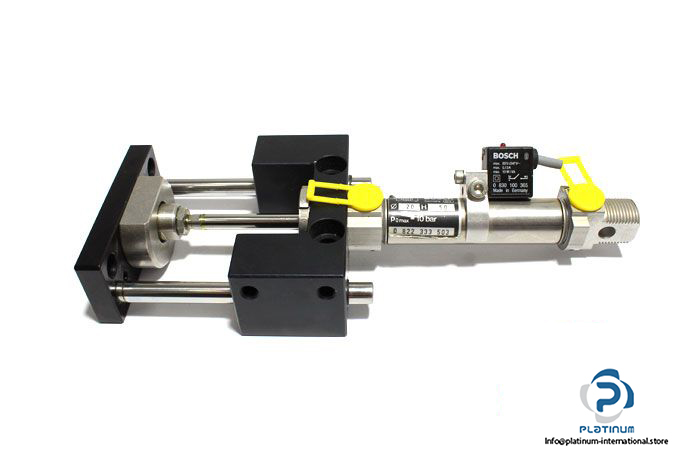

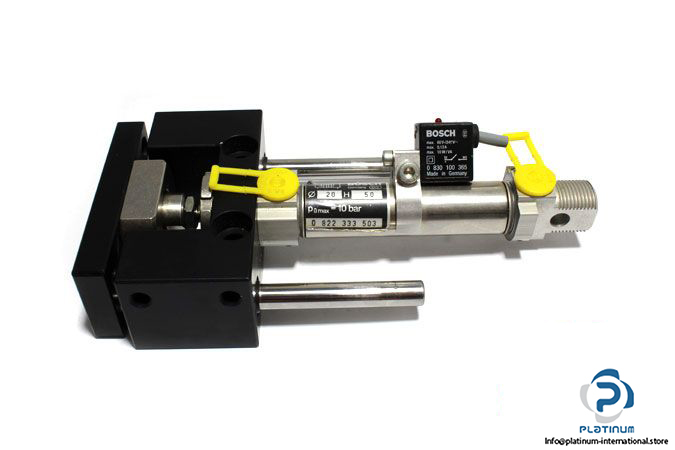

Type: Guided Piston Rod Cylinder

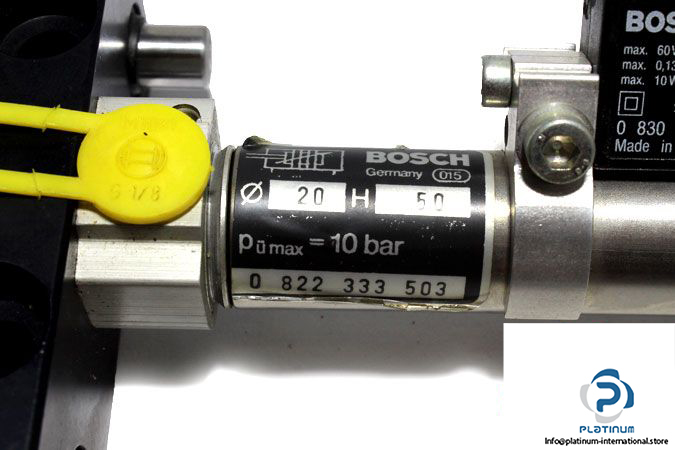

Model: 0 822 333 503

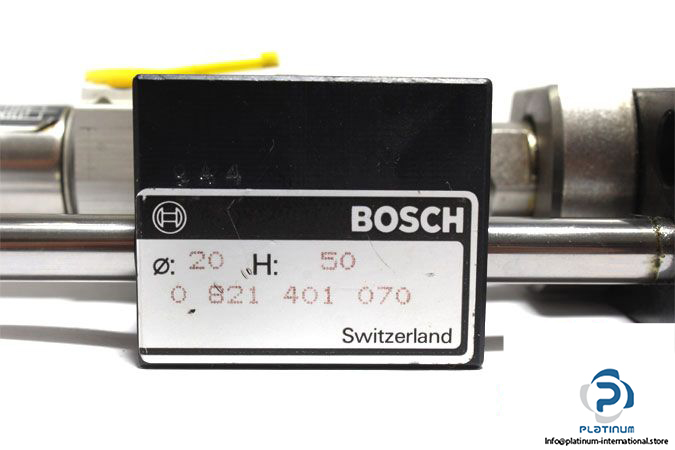

Guide Model: 0 821 401 070

Operating Pressure: 10 bar

Stroke Length: 50 mm

Bore Size: 20 mm

Piston Rod Thread: M8

Connection Ports: G 1/8

Piston Rod Diameter: 8 mm

Cylinder Outer Thread: M22 x 1.5

Max. Particle Size: 5 µm

Mode of Operation: Double acting, with magnetic piston

Temperature Range: -25 … 80^°C

Attachments:

Guide: 0 821 401 070

Stroke: 50 mm

Bore Size: 20 mm

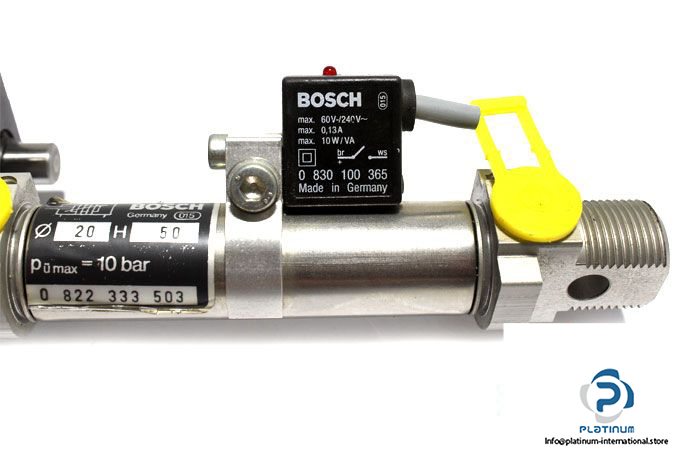

Coil: 0 830 100 365

Supply Voltage: 60 V DC, 240 V AC

Max. Current Rating: 0.13 A

Max. Power Rating: 10 W

Switching Output: Normally open Contact

Weight: 1.00 kg
