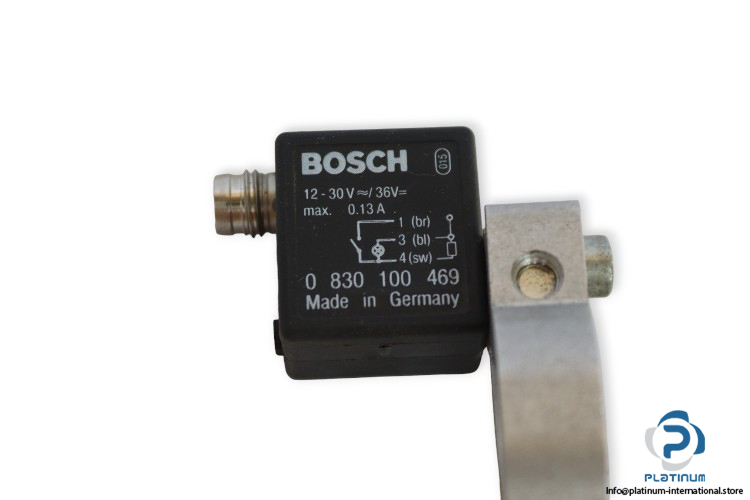

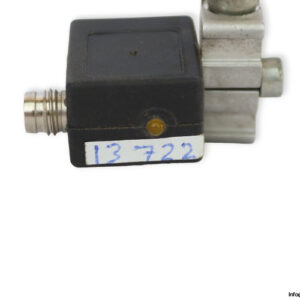

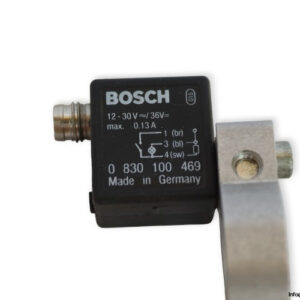

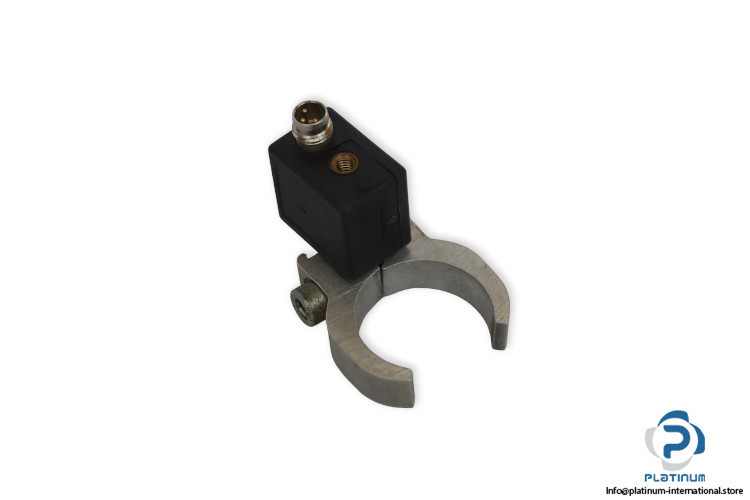

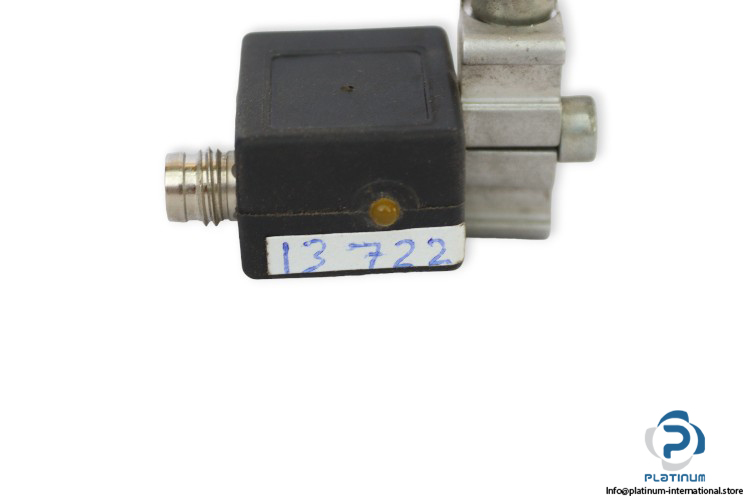

BOSCH 0830100469 Proximity Cylinder Switch
The BOSCH 0830100469 Proximity Cylinder Switch is a reliable magnetic reed switch designed for precise position sensing in pneumatic and automation systems. Built with a durable polyamide housing and IP67 protection, it ensures stable operation in demanding industrial environments. This switch offers easy installation, high switching accuracy, and compatibility with standard M8 connectors.
Manufacturer: BOSCH
Type: Proximity Cylinder Switch
Model: 0830100469
Technical Information
- Control Voltage: 12 / 30 V AC / 36 V DC
- Rated Thermal Current (Ith): 0.13 A
- Frequency: 40 / 60 Hz
- Switching Capacity: 5.5 W
- Contact Type: Reed 1 Normally Open (NO)
- Electrical Connection: M8, 3-Pin Plug
- Housing Material: Polyamide
- Protection Class: IP67
- Ambient Temperature: ˆ’20 / 80 °C
- Dimensions: 24 × 22 × 16 mm
