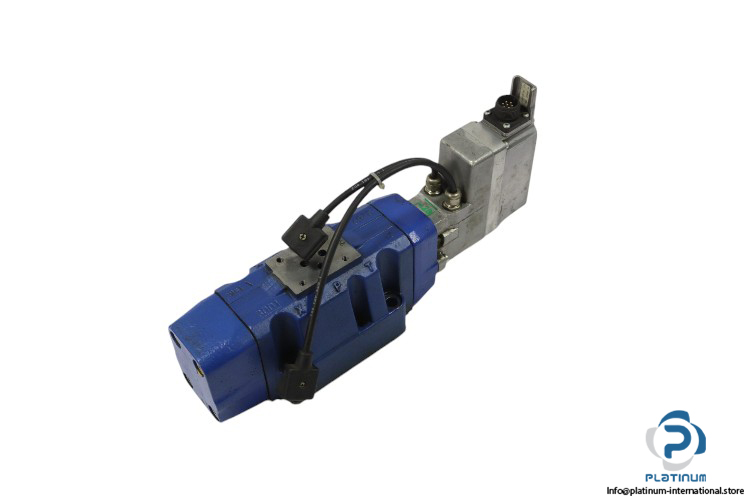

BOSCH 4WRBKE 16 Proportional Directional Control Valve
The BOSCH 4WRBKE 16 Proportional Directional Control Valve is a high-performance hydraulic component designed for precise flow and pressure control. With electrically actuated operation and a sub-plate hydraulic connection, this valve ensures efficient and reliable performance in demanding industrial applications. It supports a maximum working pressure of 350 bar and delivers a nominal flow rate of 180 l/min, making it ideal for high-pressure systems.
- Manufacturer: BOSCH
- Type: Proportional Directional Control Valve
- Model: 4WRBKE 16 W1-180SJ-10/6ZG24EK31/A1D3M
- MNR: 0811404933
Technical Specifications
- Nominal Size: NG 16
- Type of Actuation: Electrically
- Max. Working Pressure (Port P, A, B): 350 bar
- Max. Pressure (Port T): 250 bar
- Nominal Flow Rate: 180 l/min
- Hydraulic Connection: Sub-Plate
- Ambient Temperature Range: -20 / .. +50 °C
- Power Supply: 24 VDC
- Max. Differential Input Voltage: 18 V
