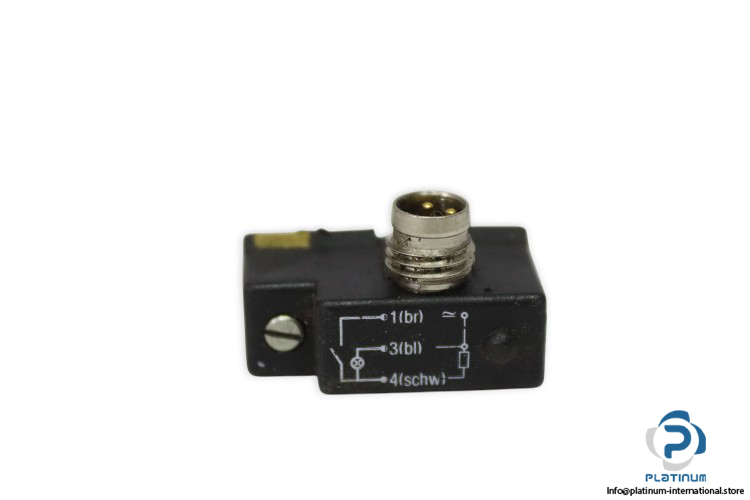

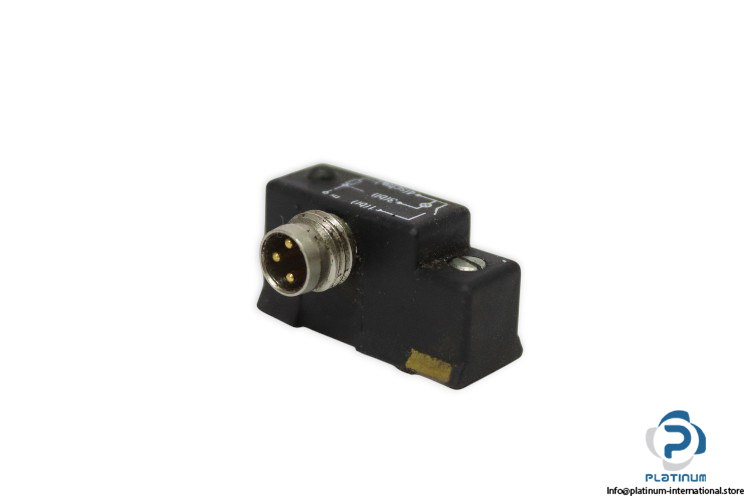

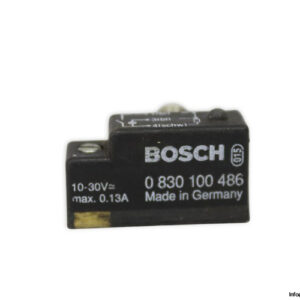

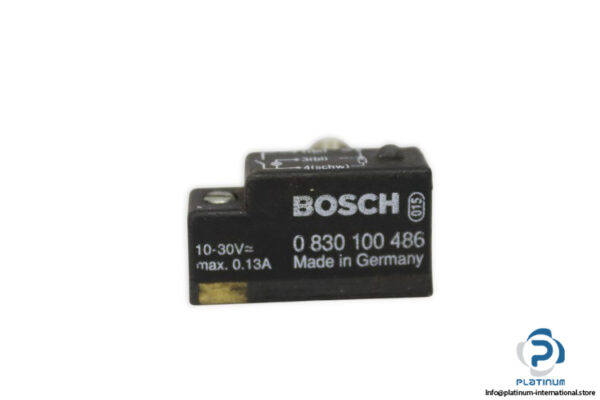

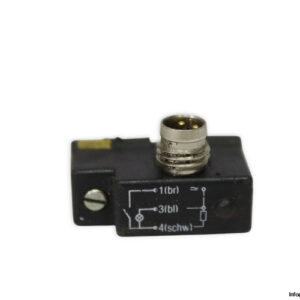

BOSCH 0 830 100 486 Magnetic Sensor
The BOSCH 0 830 100 486 Magnetic Sensor from the ST9 Series is designed for direct mounting on KHZ series actuators. Featuring high durability, excellent shock and vibration resistance, and IP65/IP67 protection, it ensures reliable performance in demanding industrial environments.
Manufacturer: BOSCH
Type: Magnetic Sensor
MRN: 0 830 100 486
Technical Information
- Series: ST9
- Direct Mounting: For Series KHZ
- Slot Width: 9 mm Groove
- Type of Contact: Reed
- Nominal Current (Actuated State): 7 mA
- Switching Capacity: 3 W / 5 VA
- Protection Class: IP67, IP65
- Ambient Temperature Range: -20 °C to +80 °C
- DC Switching Current (Max): 0.13 A
- AC Switching Current (Max): 0.2 A
- Electrical Connection 2: M8 Plug
- Number of Poles: 3-pin
- Operating Voltage DC: 10“30 V DC
- Operating Voltage AC: 10“30 V AC
- Short Circuit Resistance: Protected Against Polarity Reversal
- Shock Resistance: 100 g / 11 ms
- Vibration Resistance: 60 g (50“2000 Hz)
- Housing Material: Polyamide
