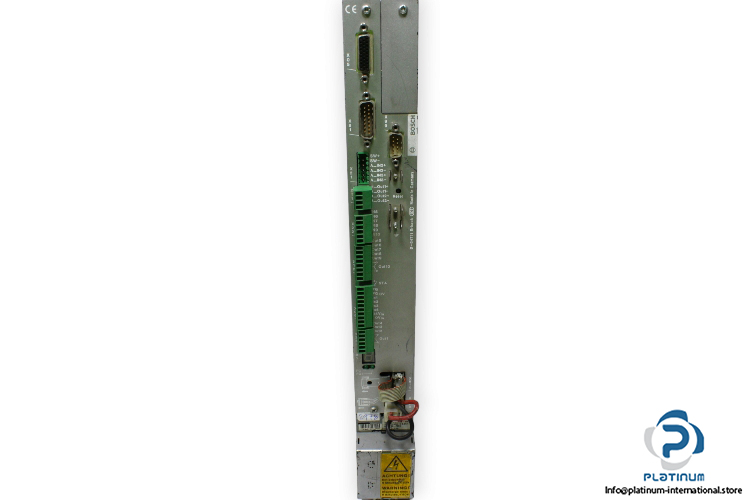

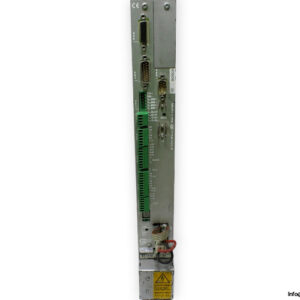

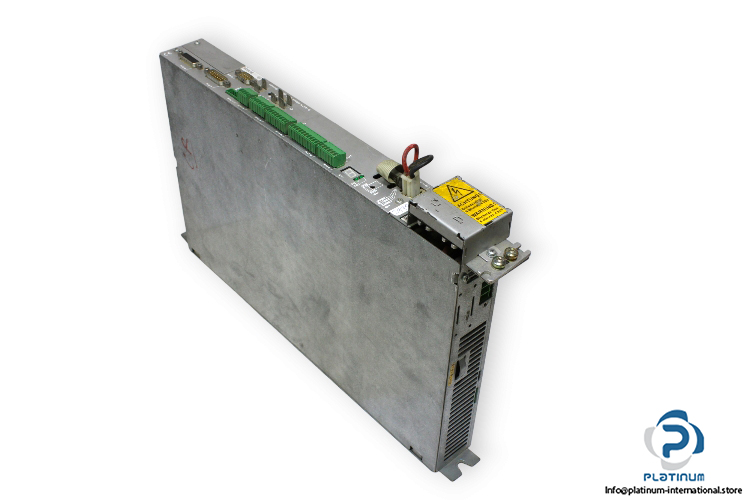

BOSCH DM 15K 3301-D VARIABLE SPEED DRIVE

The Bosch DM 15K 3301-D is a compact and efficient variable speed drive engineered for precision control in industrial automation. Designed for high-frequency output, robust analog interface, and compact integration, it ensures reliable performance in demanding applications.

Manufacturer: Bosch
Type: Variable Speed Drive
Model: DM 15K 3301-D

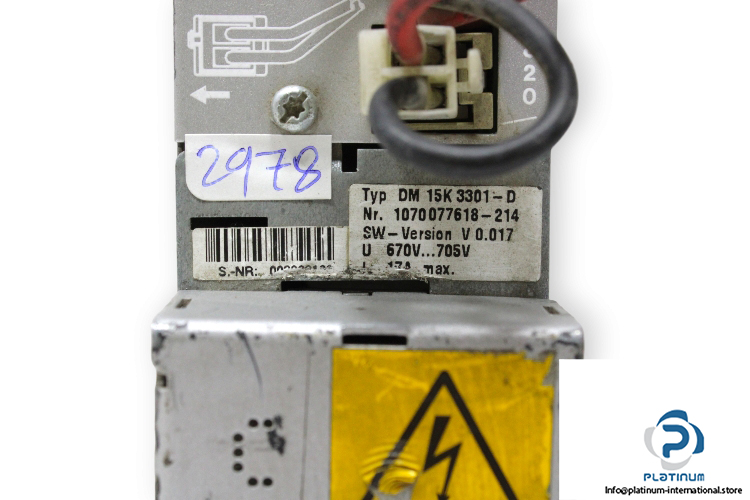

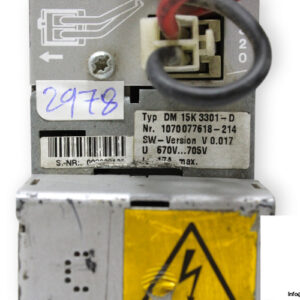

Part No.: 1070 077618-214

Technical Information

• Input Voltage: 670 / 705 V DC
• Input Current: 6 A
• Output Voltage: 3ph/400 V, 0 / 800 Hz, 8 kHz
• Output Current Max.: 17 A
• Max. Power Loss: 121 W
• Sew Version: V 0.017
• Interface: Analog interface, 12 Bit resolution
• Module Width: Compact mechanics
• Encoder Interface: Resolver
• Degree of Protection: IP20
