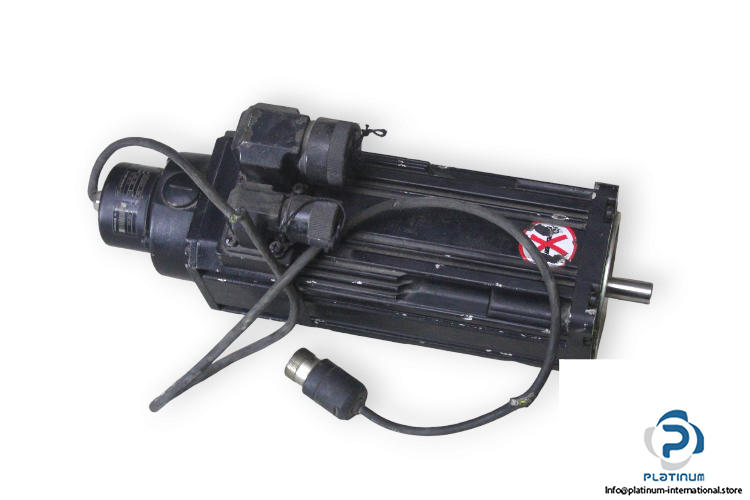

BOSCH SE-B2.020.030-14.005 Synchronous Servo Motor With Encoder
Engineered for dynamic and precise control, the BOSCH SE-B2.020.030-14.005 synchronous servo motor is equipped with high-performance components for advanced automation tasks. It includes the ROD 426.029A-2500 encoder for superior feedback accuracy, making it ideal for robotics, CNC machinery, and industrial automation applications.
Manufacturer: BOSCH
Type: Synchronous Servo Motor
Model: SE-B2.020.030-14.005
MPN: 0133500242
Search No: 1 070 916 213 / 0 133 500 242
S No: 364 000 026

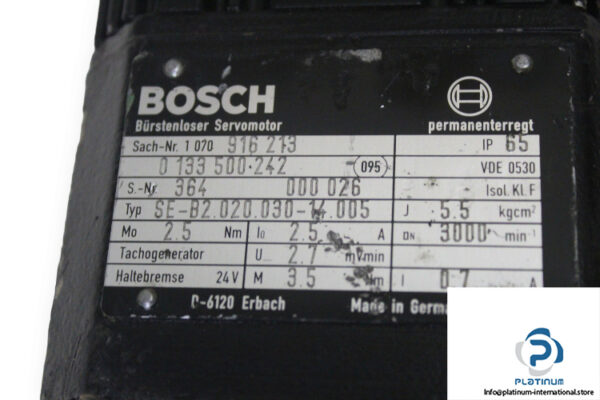

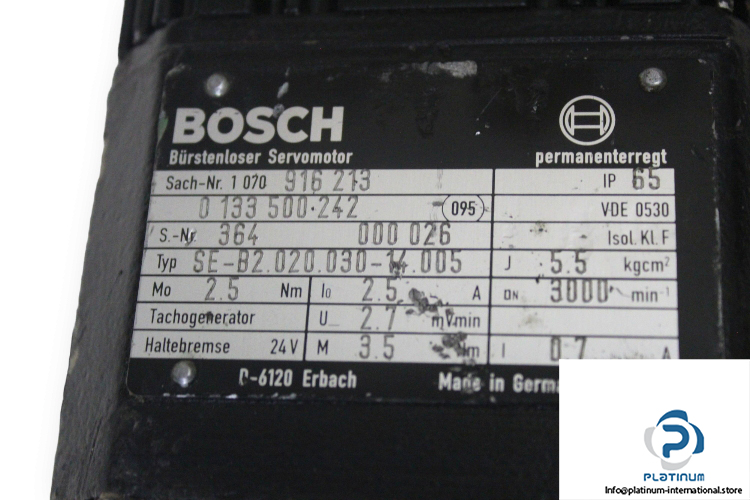

Technical Information “ Motor
- Current at Standstill: 2.5 A
- Static Torque: 2.5 Nm
- Nominal Speed: 3000 RPM
- Moment of Inertia (Tacho Generator): 5.5 Kgcm²
- Holding Brake Supply Voltage: 24 V
- Protection Class: IP67
- Insulation Class: F
- Tachogenerator Constant: 2.7 mV/min
- Brake Voltage: 24 V
- Brake Torque: 3.5 Nm
- Brake Current: 0.7 A

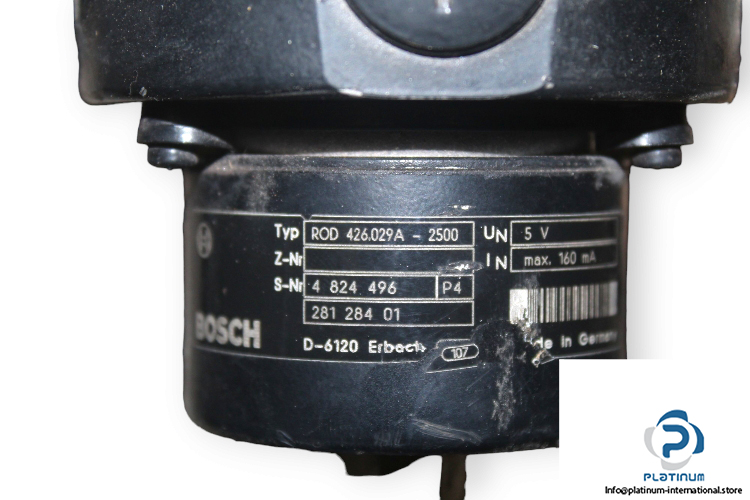

Attached Encoder: BOSCH ROD 426.029A-2500
- Type: Encoder
- Model: ROD 426.029A-2500
- S No: 4 824 496 / 281 284 01
- Rated Voltage: 5 V
- Rated Current: 160 mA
