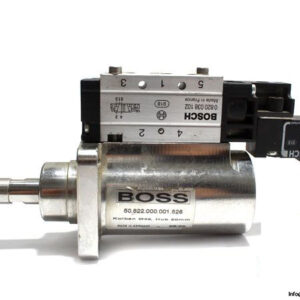

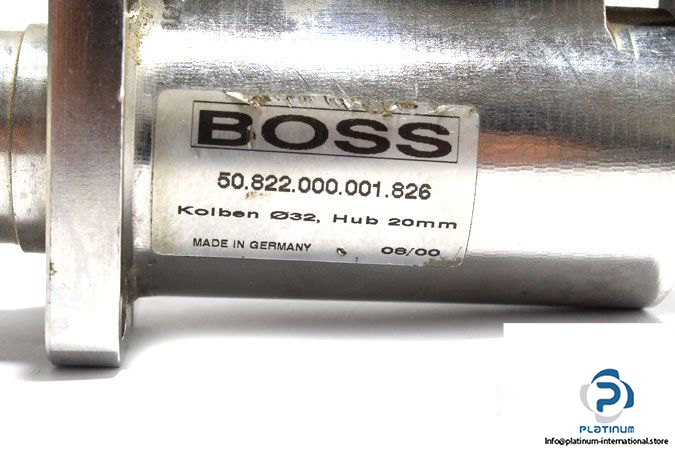

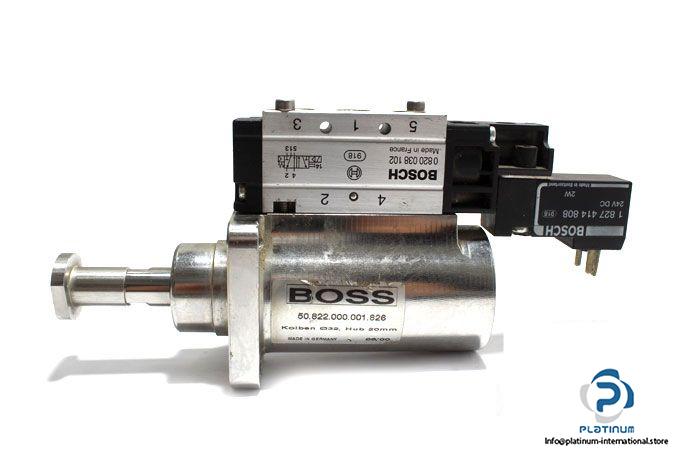

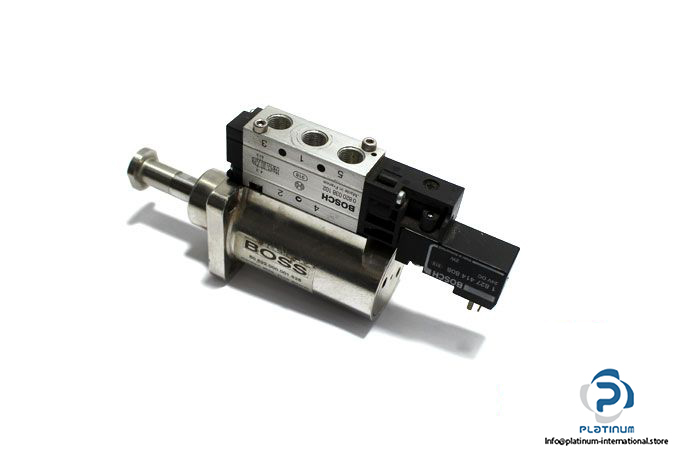

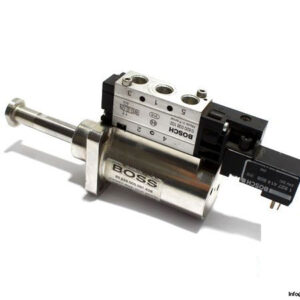

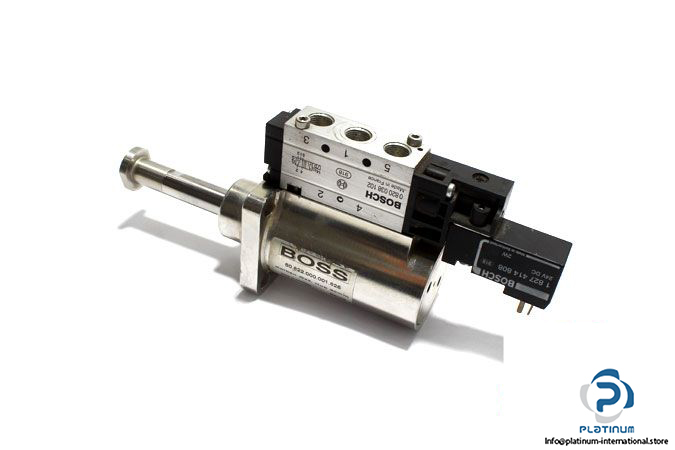

BOSS 50.822.000.001.826 Pneumatic Actuator
The BOSS 50.822.000.001.826 is a compact and efficient pneumatic actuator designed for precise linear motion. With a 32 mm piston diameter and a 20 mm stroke length, it ensures reliable performance in industrial automation systems. The actuator is supported by Bosch solenoid valve and coil attachments for enhanced control.
Manufacturer: BOSS
Type: Pneumatic Actuator
Model: 50.822.000.001.826
Technical information
- Piston Diameter: 32 mm
- Stroke Length: 20 mm
- Rod Diameter: 12 mm
Attachment 1: Bosch Single Solenoid Valve
- Manufacturer: BOSCH
- Type: Single Solenoid Valve
- Model: 0820038102
- Media: Air
- Function: 5/2 way valve
- Operating Pressure: 0 / 10 bar
- Pneumatic Connection: G 1/8

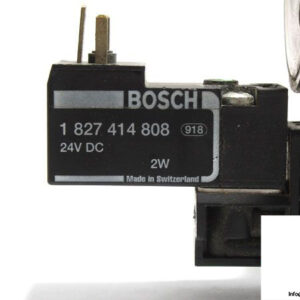

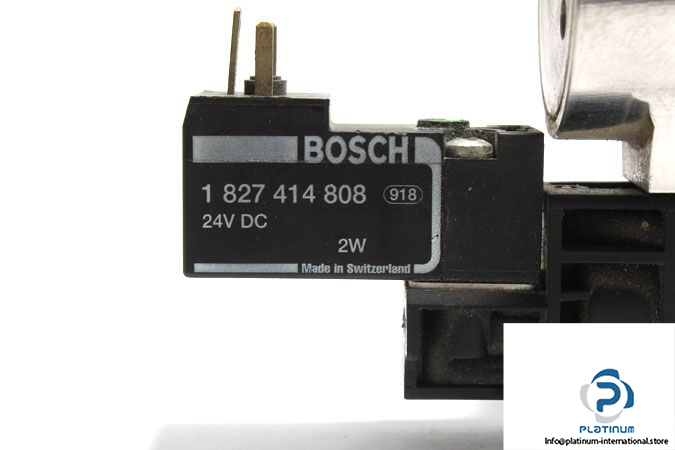

Attachment 2: Bosch Solenoid Coil
- Manufacturer: BOSCH
- Type: Solenoid Coil
- Model: 1827414808
- Power Supply: 24 V DC
