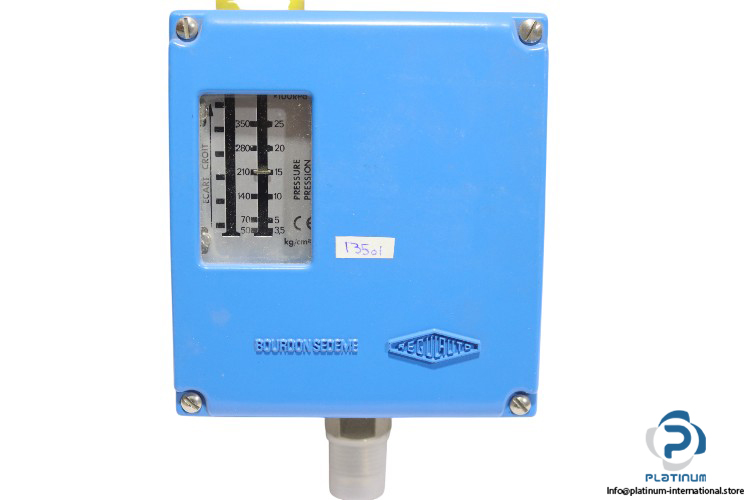

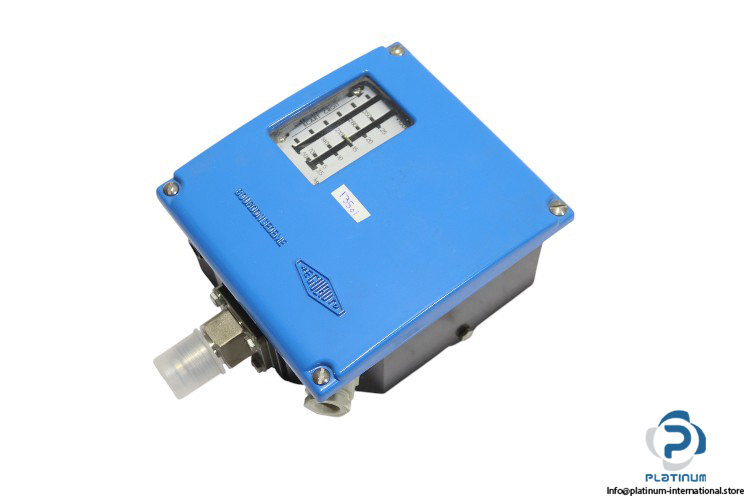

Bourdon Haenni RPPN EA3 205 Industrial Pressure Switch

The Bourdon Haenni RPPN EA3 205 is a highly durable industrial pressure switch designed for precise pressure monitoring in demanding environments. With an IP66 protection rating, it ensures long-lasting reliability in harsh conditions. It is ideal for applications where high sensitivity and accurate switching are required, offering a wide measurement range and repeatability.

Manufacturer: BOURDON HAENNI

Type: Industrial Pressure Switch

Model: RPPN EA3 205

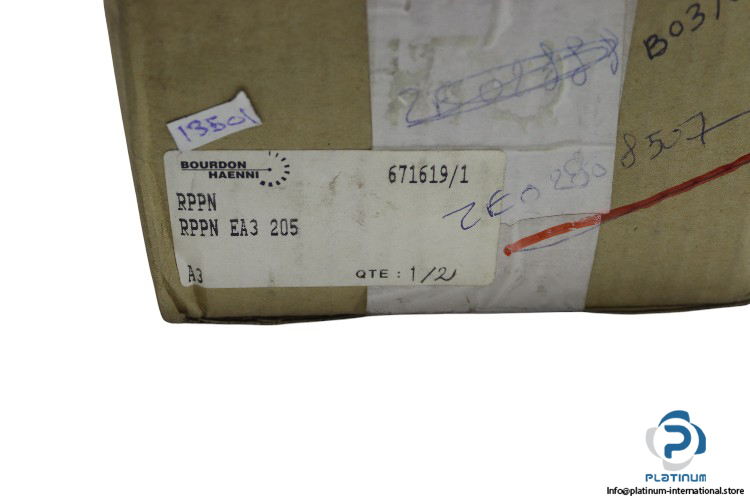

Ref No.: 671619/1

Technical Data:

• Measurement Unit and Range: 3.5 to 25 bar
• Protection Rating (EN60529): IP66
• Cover: Blue painted, zamak
• Captive Stainless Steel Screws: Case material, black painted, zamak
• Changeover Switch: Ultra sensitive 1xSPDT, 2 A/250 Vac / 1 A/30 Vdc

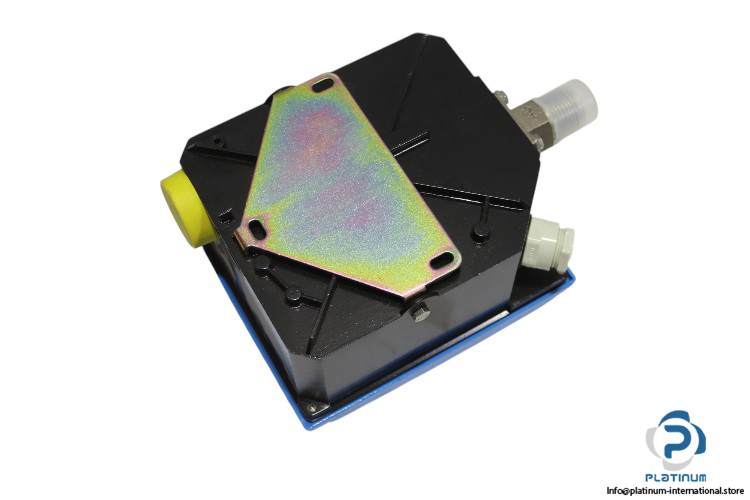

• Mounting: Wall mounting bracket
• Scale: Internal, accuracy on reading ± 5 % FS
• Repeatability: ± 1 % FS
• Electrical Connection: Via internal terminal block with plastic cable gland for Ø 7 to 10.5 mm
• Ambient Temperature: -25°C … +55°C
• Port Size: G1/2
