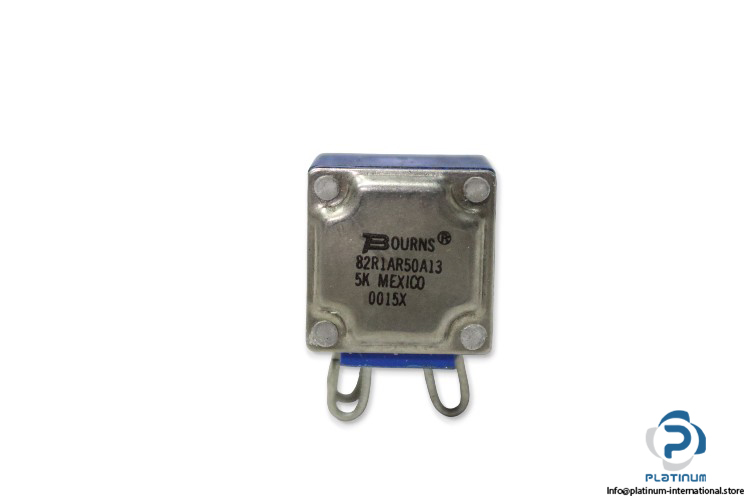

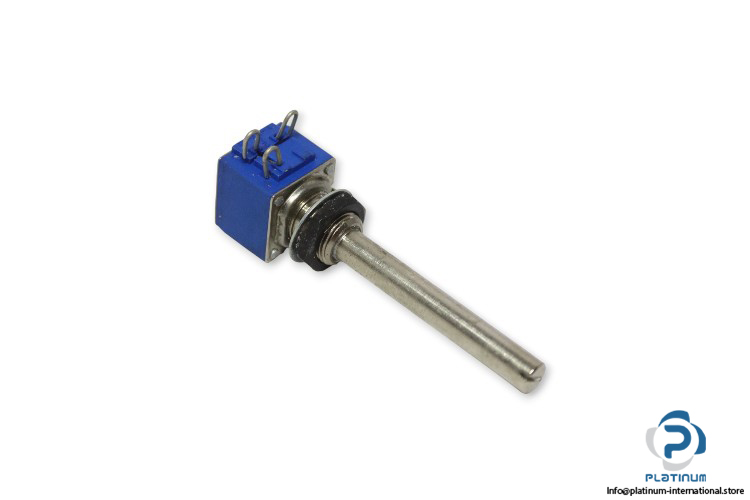

Bourns 82R1AR50A13 Potentiometer

The Bourns 82R1AR50A13 Potentiometer is a high-precision cermet panel-mount control designed for reliable adjustment of resistance values in industrial and electronic applications. Built for durability, smooth operation, and long service life, it ensures stable performance even in demanding environments.

Manufacturer: Bourns
Type: Potentiometer
Model: 82R1A-R50-A13

Technical Information

• Series: 82
• Shaft Diameter: 6 mm
• Shaft Length: 50 mm
• Element Type: Cermet
• Tolerance: 10 %
• Resistance: 5 kOhm
• Insulation Voltage: 500 V
• Power: 2 W
• Number of Turns: 1 Turn
• Shaft Type: Smooth / Slotted
• Mounting Style: Panel Mount
• Termination Style: Solder Lug
• Protection Class: IP40
• Ambient Temperature: -40 / 125 °C
