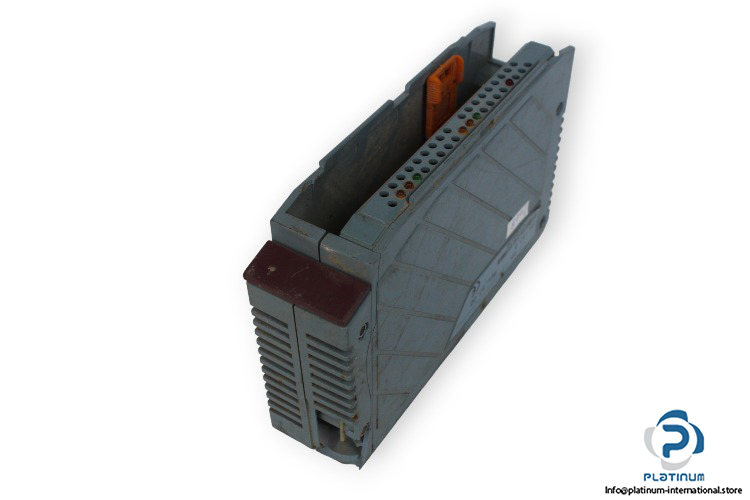

B&R 3NC150.6 COUNTER AND POSITIONING MODULE

The B&R 3NC150.6 is a high-precision counter and positioning module engineered for industrial automation systems. It supports flexible encoder inputs and provides accurate digital and analog signal processing, making it ideal for advanced control applications.

Manufacturer: B&R
Type: Counter and Positioning Module

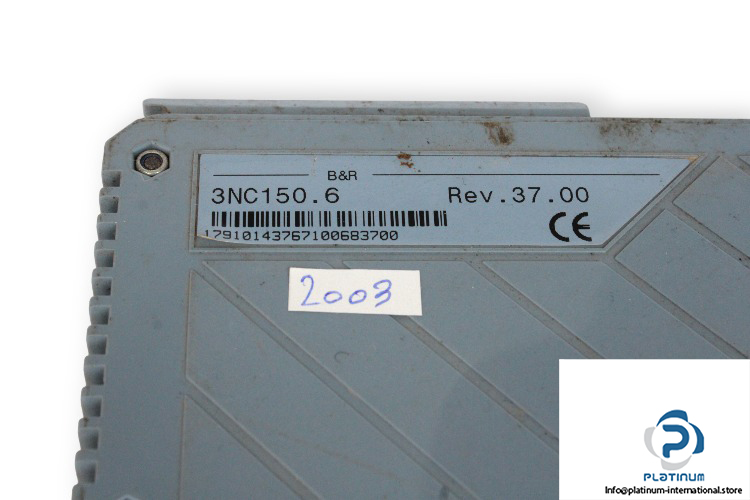

Model: 3NC150.6
Part No.: Rev.37.00
Ref No.: 17910143767100683700

Technical Information

• Encoder Supply: 5 / 30 V external
• Module Requirements: Typically, 40 mA at 5 V / 120 mA at 30 V
• Input Frequency: 100 KHz
• Input Filter: 2 times, can be set using software
• Counter Size: 32-bit
• Number of Analog Outputs: 2
• Digital Converter Resolution: 12-bit
• Signal Encoder Connections: Two 9-pin DSUB sockets
• Encoder Inputs: Symmetric and asymmetric
