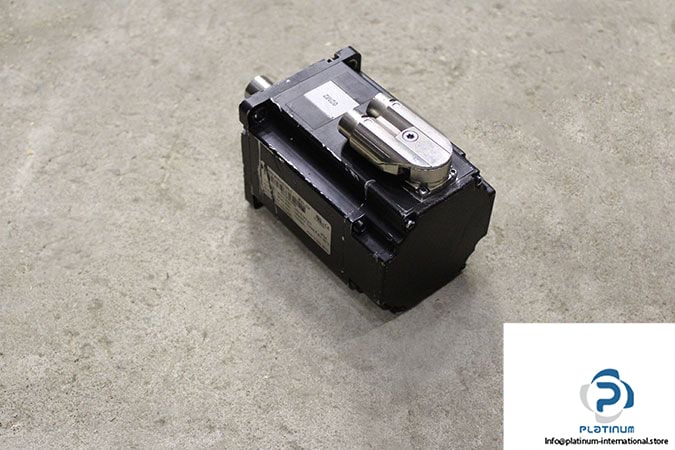

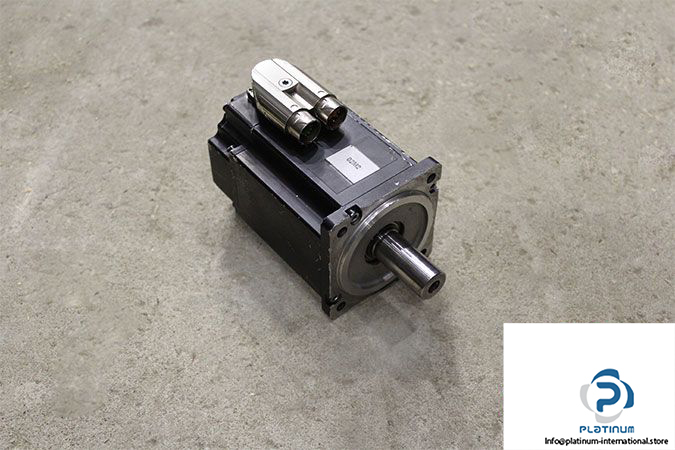

B&R 8LVA33.B1021D000-0 SYNCHRONOUS SERVO MOTOR
The B&R 8LVA33.B1021D000-0 is a high-efficiency synchronous servo motor engineered for precise automation systems. Offering powerful torque performance with optimal control characteristics, it suits high-demand industrial tasks.
Manufacturer: B&R Industrial Automation
Type: Synchronous Servo Motor

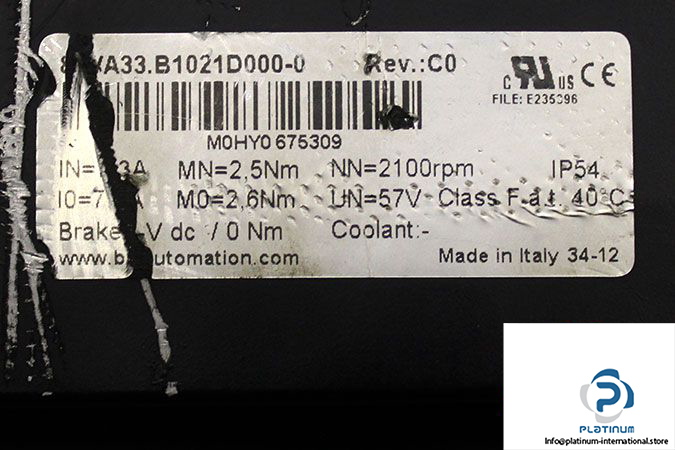

Model: 8LVA33.B1021D000-0
Part No.: M0HY0675309
Technical Information
- Nominal Speed: 2100 rpm
- Number of Pole Pairs: 4
- Nominal Voltage: 57 V
- Nominal Torque: 2.5 Nm
- Nominal Power: 539 W
- Nominal Current: 7.3 A
- Stall Torque: 2.6 Nm
- Stall Current: 7.9 A
- Maximum Torque: 7.20 Nm
- Maximum Current: 26.0 A
- Maximum Speed: 6600 rpm
- Torque Constant: 0.33 Nm/A
- Voltage Constant: 19.9 V/1000 rpm
- Stator Resistance: 0.503 Ω
- Stator Inductance: 2.0 mH
- Electrical Time Constant: 4.000 ms
- Thermal Time Constant: 34.0 min
- Moment of Inertia: 0.95 kgcm²
- Shaft End: Smooth Shaft
- Connection Type: Connector
- Connector Size: 1.0
- Cross Section for B&R Motor Cables: 0.75 mm²
- Connection Direction: Angled (Swivel)
- Encoder: B1 2.2 Bat Inductive 16-Line Multi-Turn
- Ambient Temperature: 40 °C
- Protection Class: IP54
- Insulation Class: F
