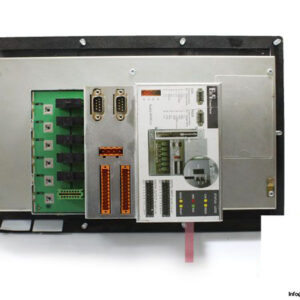

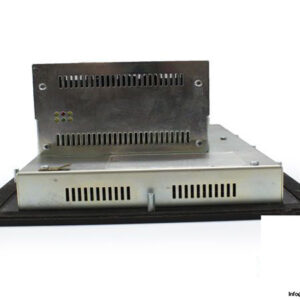

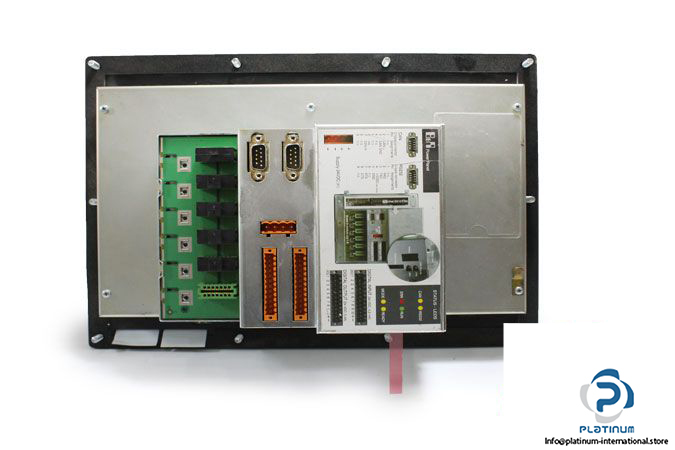

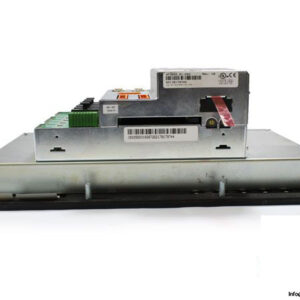

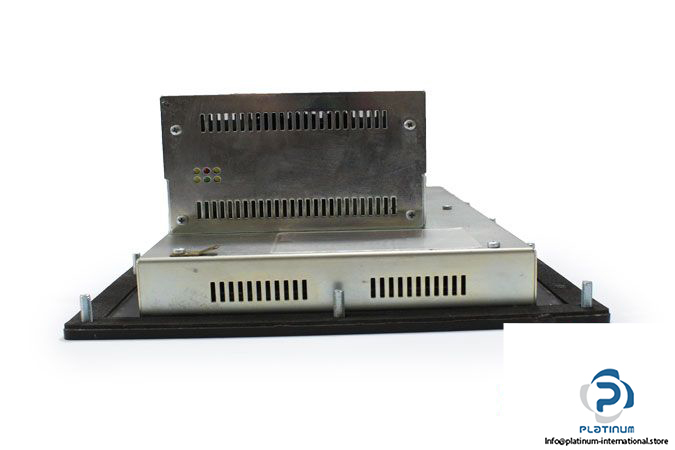

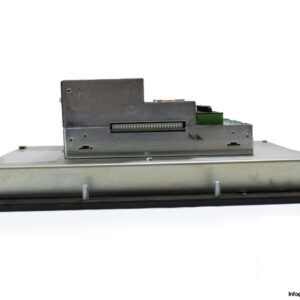

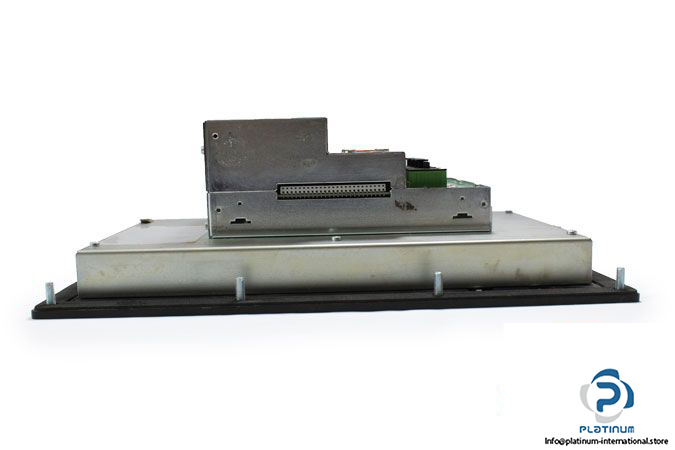

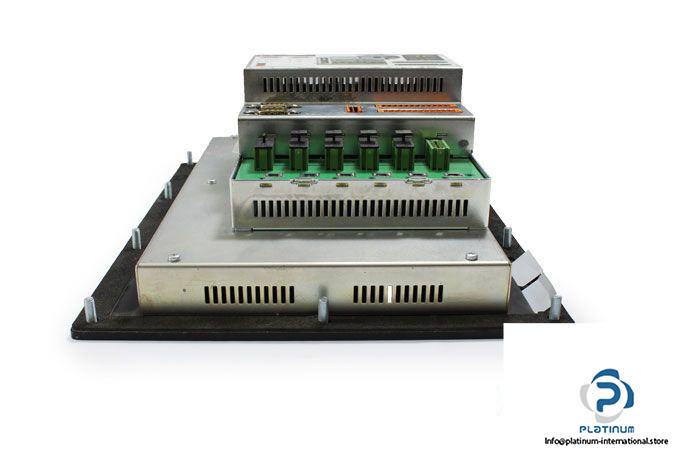

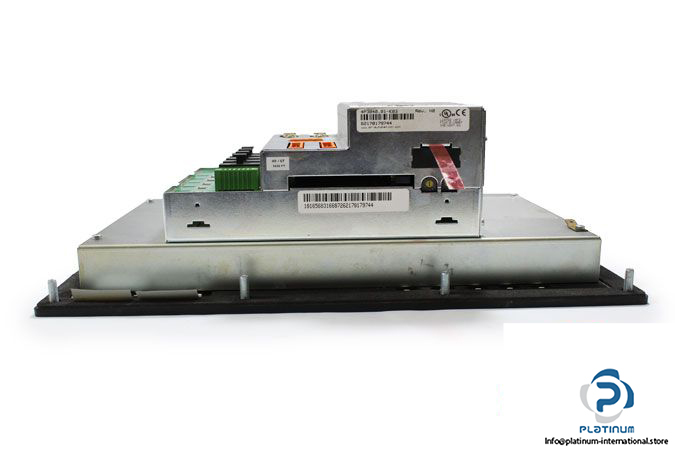

Manufacturer: B&R-AUTOMATION

Type: POWER PANEL

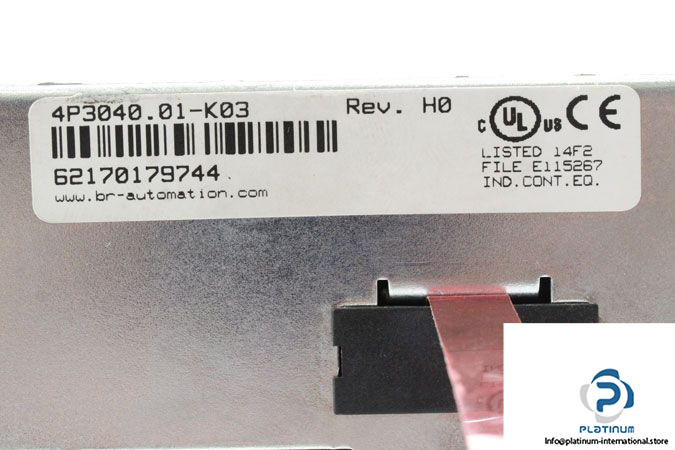

Model: 4P3040.01-K03

MRN: 62170179744

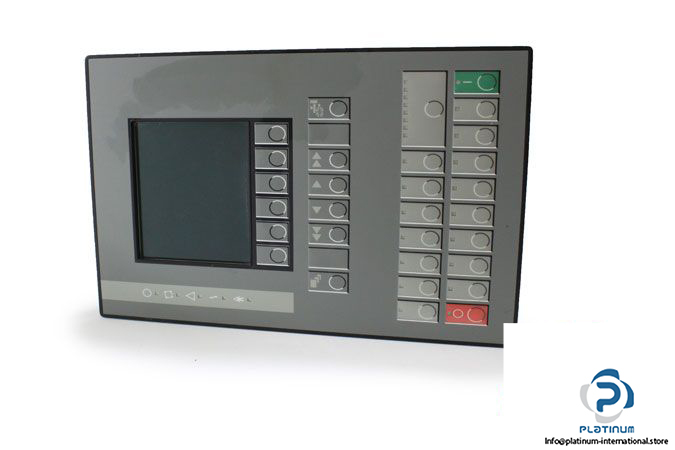

Display:

Type: LCD

Diagonal: 5.7 inch

Brightness: 150 cd/m²

Function keys: 16, with LED

Processor:

User RAM: 700 KB SRAM

System PROM: 600 kB Flash PROM

User PROM: 1.4 MB Flash PROM

Data Buffering with Backup Battery: Lithium battery 3 V / 950 mAh

Peripherals:

Slots for B&R 2003 Screw-in Modules: 6

For Serial Asynchronous Communication: 3

For TPU: 3

Standard communication interfaces:

IF1 application interface:

         Type: RS232

         Design: 9-pin DSUB plug

         Max. Baud Rate: 115.2 kBits/s

IF2 application interface:

        Type: CAN bus

        Design: 9-pin DSUB plug

        Max. Baud rate: 500 kBits/s

Power supply:

Rated Voltage: 24 VDC

Input Current at Rated Voltage: Approx. 4 mA

Power Consumption: Max. 20 W

Operational Temperature: 0 … +50°C

Protection Type: IP65 (front side)

Weight: approx. 2.1 kg
