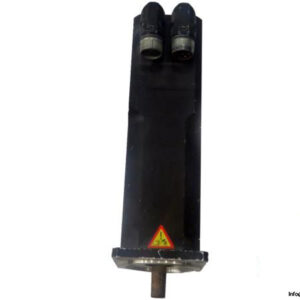

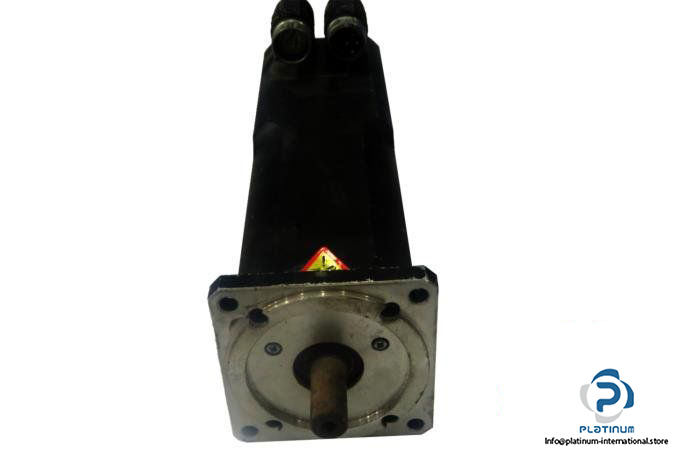

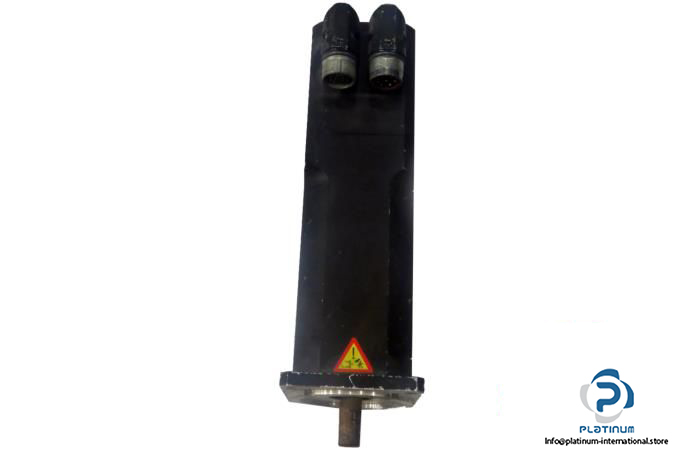

B&R AUTOMATION 8MSA3L E3-46 SERVO MOTOR

The B&R Automation 8MSA3L E3-46 is a high-performance 3-phase synchronous servo motor engineered for demanding industrial automation systems. Designed with advanced self-cooling technology and precise EnDat multi-turn encoder system, this motor offers exceptional reliability, speed, and torque consistency.

Manufacturer: B&R Automation
Type: Servo Motor “ 3 Phase Synchronous Motors
Model: 8MSA3L E3-46
Part No.: 47660293805
Revision: d0
Cooling Type: Self Cooling

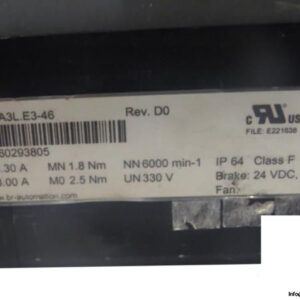

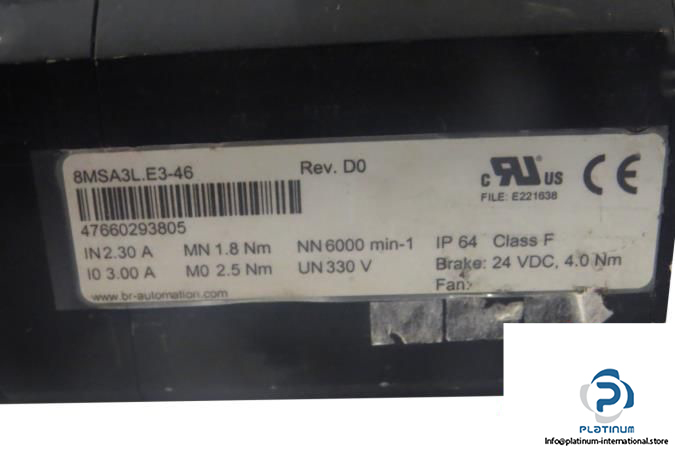

Technical Information

• Size: 3
• Length: Large Rated Torque
• Encoder System: EnDat Multi-turn, 32 Lines, Inductive
• Rated Current: 2.30 A
• Stall Current: 3.00 A
• Rated Torque: 1.8 Nm
• Stall Torque: 2.5 Nm
• Speed: 6000 min»¹
• Voltage: 330 V
• Protection Class: IP64
• Brake Voltage: 24 VDC
• Brake Rated Torque: 4.0 Nm
