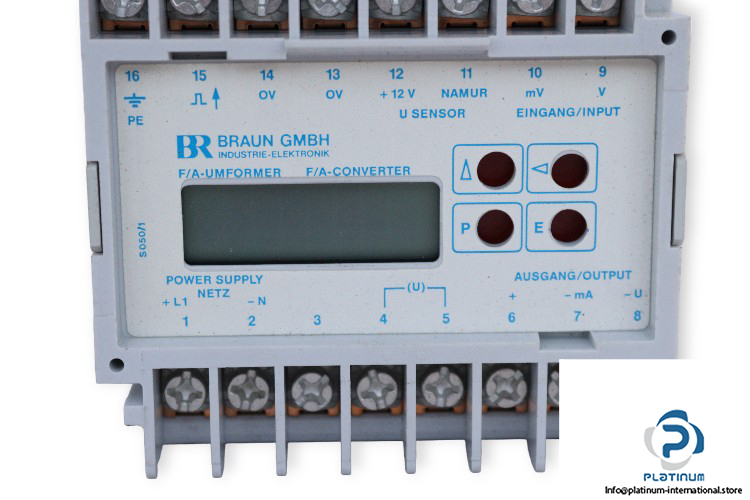

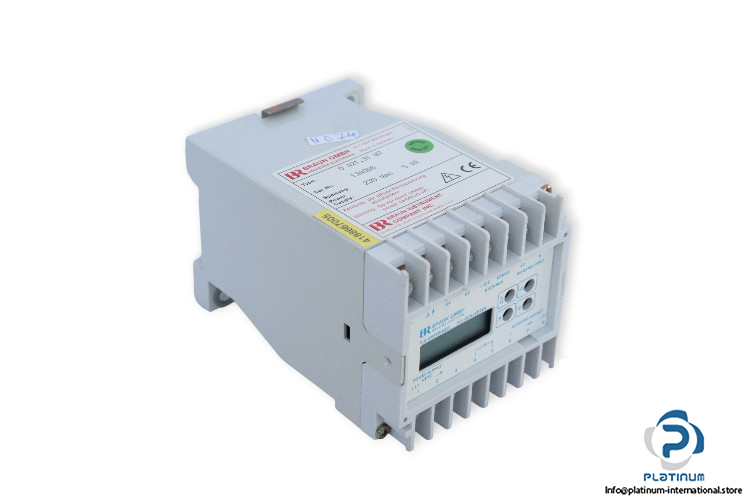

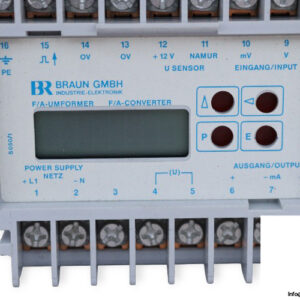

BRAUN D421.31W2 COMPACT CONVERTER

The Braun D421.31W2 Compact Converter is designed to provide reliable signal conversion with isolated and programmable analog outputs. Built for precision and stability, it supports NAMUR sensors with high sensitivity and is suitable for a wide range of industrial applications.

Manufacturer: Braun
Type: Compact Converter
Model: D421.31W2

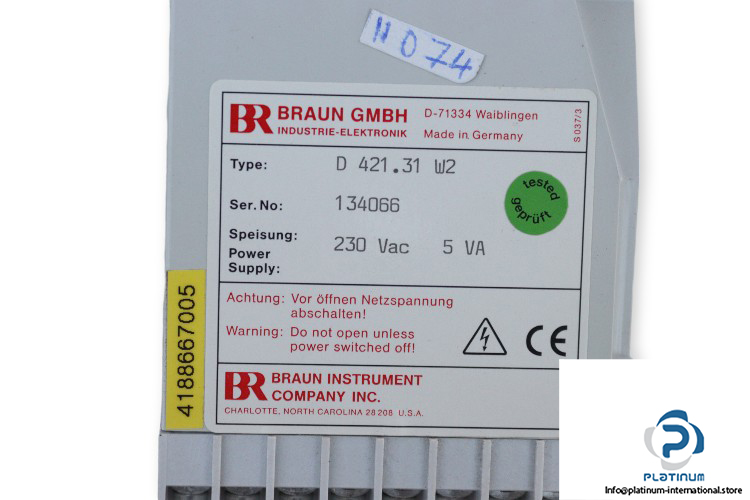

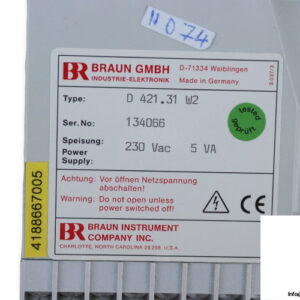

Art No.: 4188667005

Technical Information

• Supply Voltage: 230 V AC
• Power: 5 VA
• Signal Input:
• Input Impedance: 100 kohms
• Sensor Supply: 12 V / max. 60 mA
• Sensor Type: NAMUR
• High Sensitivity Path: 500 mV RMS
• Frequency: 0.1 / 1 Hz
• Analog Output: Isolated & programmable 0/4 / 20 mA, 0/2 / 10 V
• Resolution: 12 bit
• Max Load: 750 ohms
• Ambient Temperature: 0 / 50 °C
• Protection Degree: IP20
• Dimension: 160 x 120 x 75 mm
• Code: S050/1
