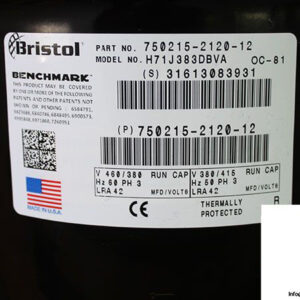

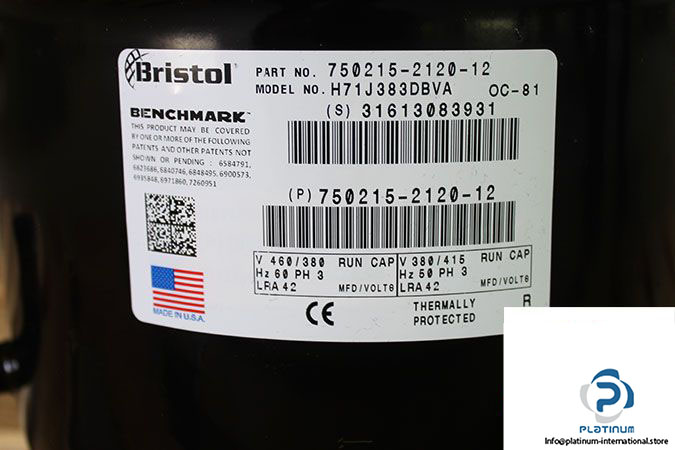

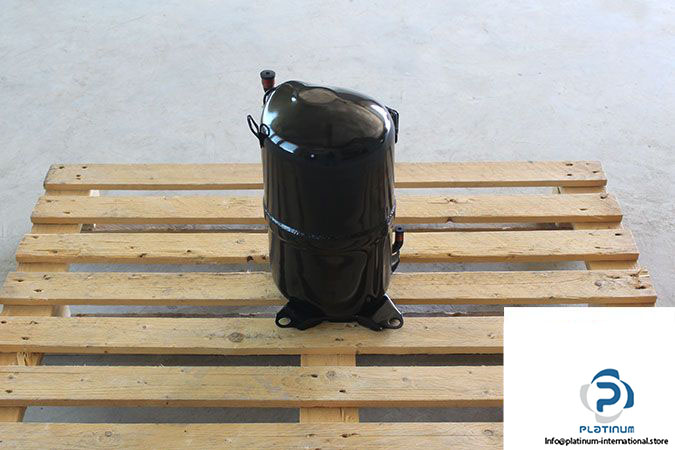

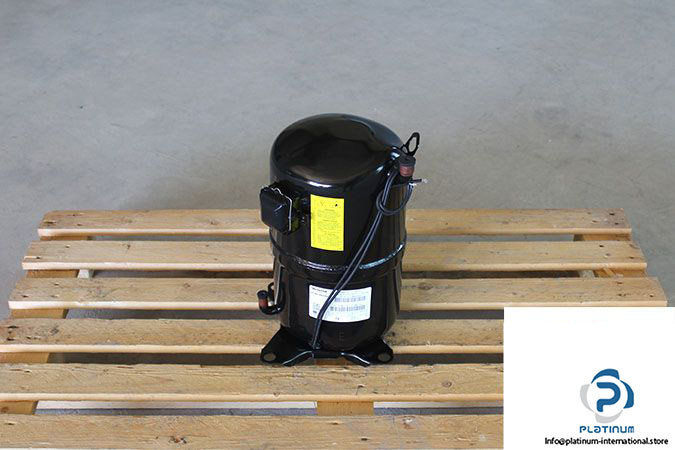

BRISTOL H71J383DBVA COMPRESSOR

This high-performance, three-phase compressor by Bristol is designed for high-temperature refrigeration applications. Built as a second-generation standard model, it delivers powerful cooling performance with a nominal capacity of 38,000 BTU/hr and supports R407C refrigerant systems. Ideal for commercial HVAC and refrigeration setups requiring reliability, efficiency, and flexible voltage support.

Manufacturer: Bristol
Type: Compressor
Model: H71J383DBVA
Part No.: 750215-2120-12
Code: OC-81
Serial No.: 31613083931

Technical Information

• Phase: 3~ Three Phase
• Refrigeration Application: High Temperature
• Generation: Second Generation “ Basic Standard Model
• Nominal Capacity [BTU/HR]: 38,000
• Horsepower [HP]: 14.93
• Dimension [in]: 7.5 x 7.5
• Rated Voltage [V]: 380 to 415 / 380 to 460
• Frequency [Hz]: 50 / 60
• Refrigerant: R407C
• LRA: 42
