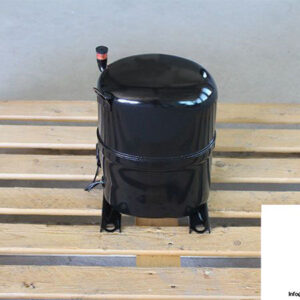

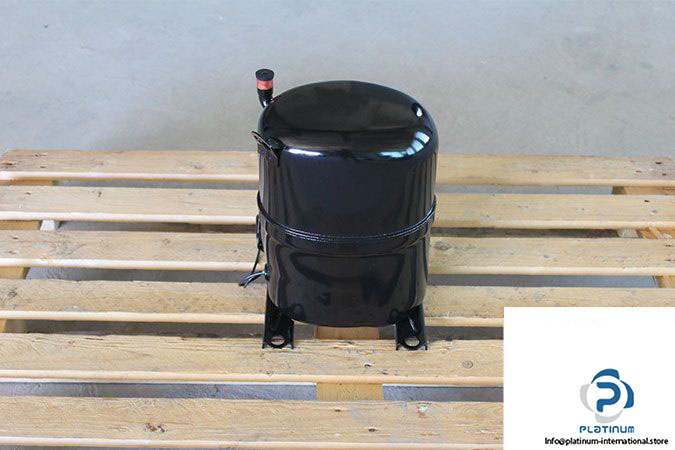

BRISTOL H79B28UDBVA COMPRESSOR

The Bristol H79B28UDBVA is a high-performance three-phase compressor engineered for high-temperature refrigeration systems. With a sixth-generation upgraded design, it delivers exceptional reliability, capacity, and energy efficiency for commercial cooling applications.

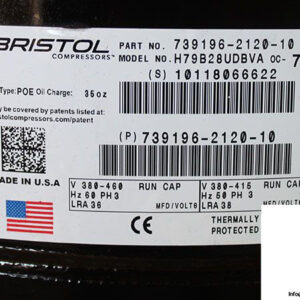

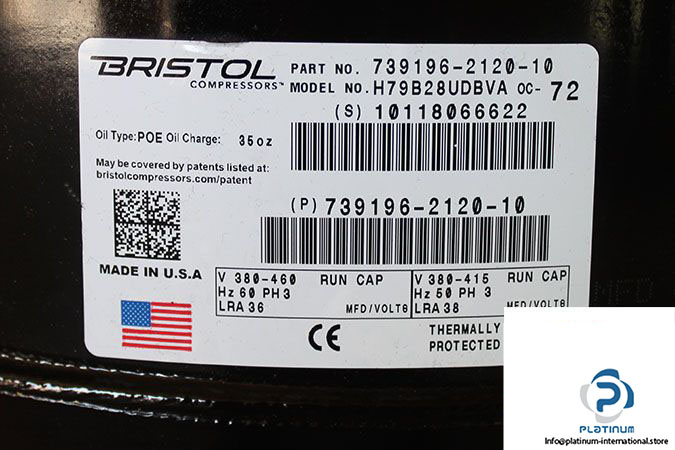

Manufacturer: Bristol
Type: Compressor
Model: H79B28UDBVA
Part No.: 739196-2120-10
Code: OC-72
Serial No.: 10118066622

Technical Information

• Phase: 3~ Three Phase
• Refrigeration Application: High Temperature
• Generation: Sixth Generation-Basic Standard Model Upgrade
• Nominal Capacity [BTU/HR]: 28000
• Horsepower [HP]: 11.0
• Dimension [in]: 7.5 x 7.5
• Rated Voltage [V]: 380-415 / 380-460
• Frequency [Hz]: 50/60
• Refrigerant: R407C
• Oil Type: POE, Charge 35 oz
• LRA: 36
