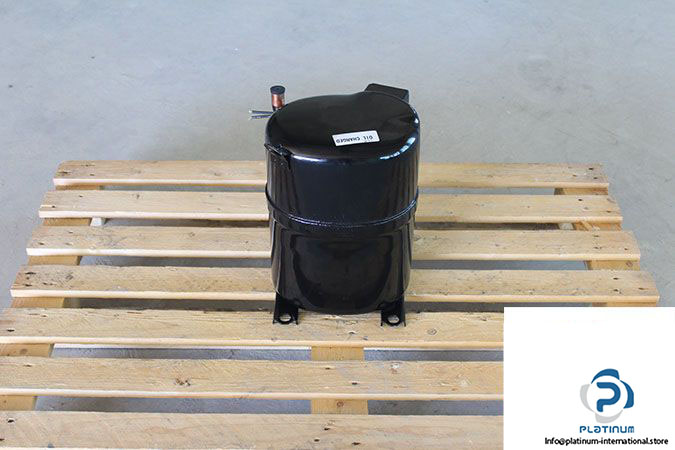

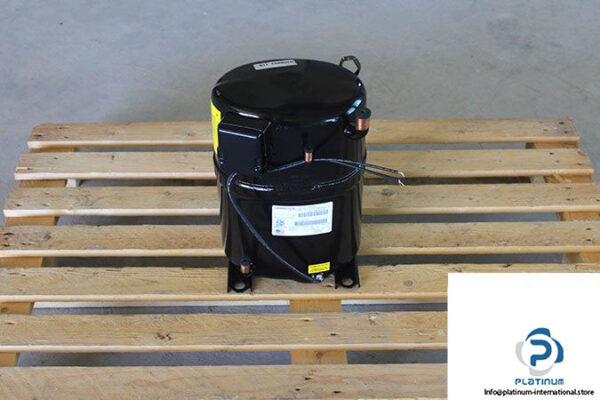

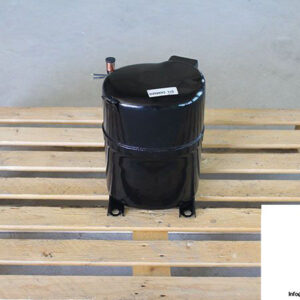

BRISTOL L63A952BBKA COMPRESSOR

The Bristol L63A952BBKA is a fourth-generation, low-temperature refrigeration compressor engineered for single-phase systems. With a nominal cooling capacity of 9500 BTU/hr and 3.73 HP output, it is ideal for commercial refrigeration applications using R404A refrigerant. The unit is factory-charged with POE oil and built for durability and consistent thermal performance.

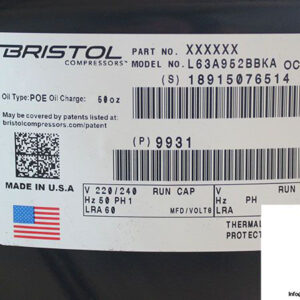

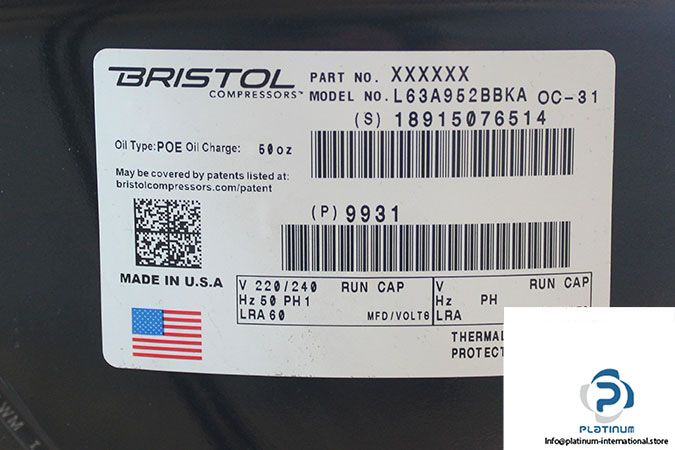

Manufacturer: Bristol
Type: Compressor
Model: L63A952BBKA
Code: OC-31
Serial No.: 18915076514 / 9931

Technical Information

• Phase: 1~ Single Phase
• Refrigeration Application: Low Temperature
• Generation: Fourth Generation-Basic Standard Model
• Nominal Capacity: 9500 BTU/HR
• Horsepower: 3.73 HP
• Dimension: 7.5 x 7.5 in / Offset Mounting Rail
• Rated Voltage: 220 to 240 V
• Frequency: 50 Hz
• Refrigerant: R404A
• Oil Type: POE
• Oil Charge: 50 oz
• LRA: 60
