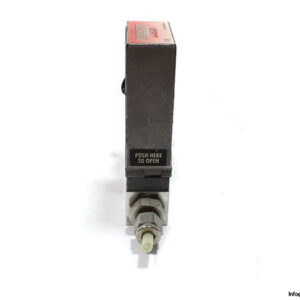

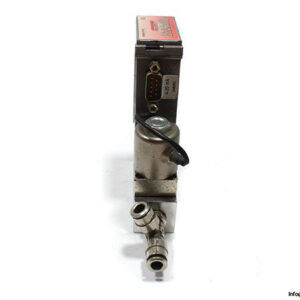

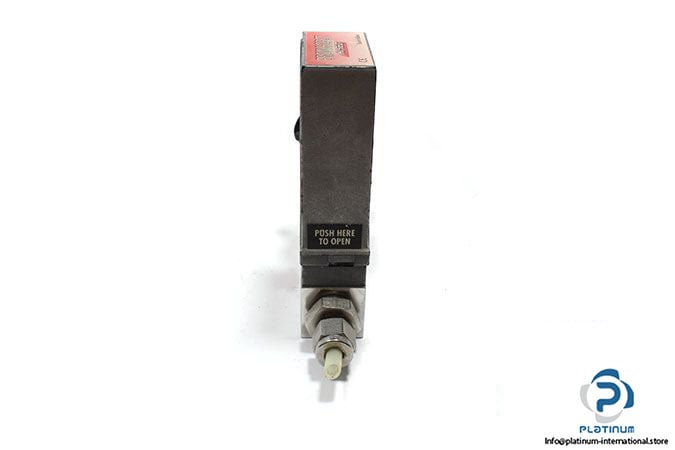

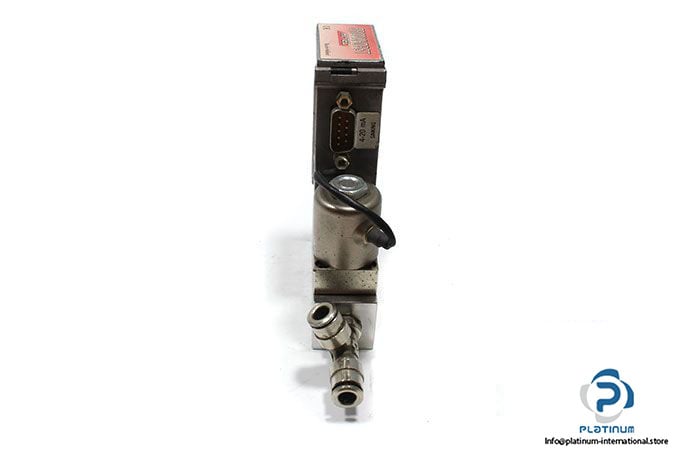

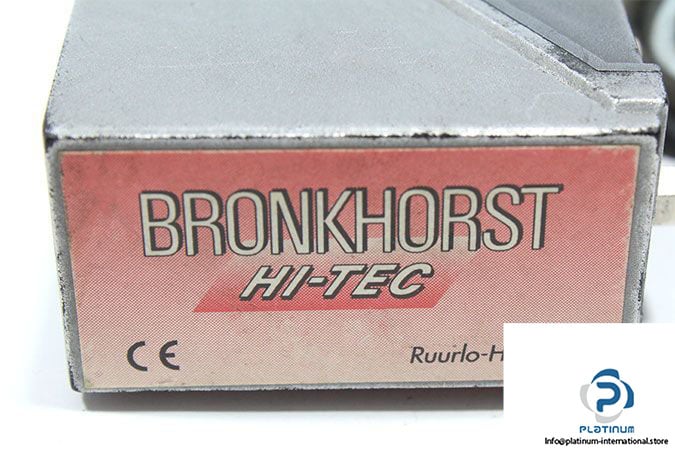

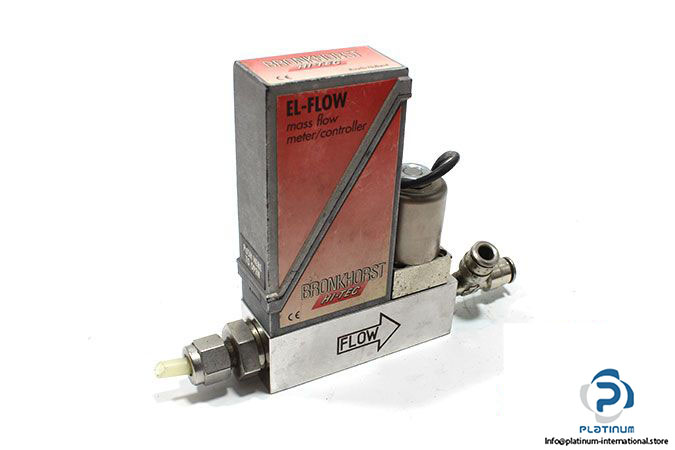

Manufacturer: BRONKHORST
Type: Digital Thermal Mass Flow Controller for Gases

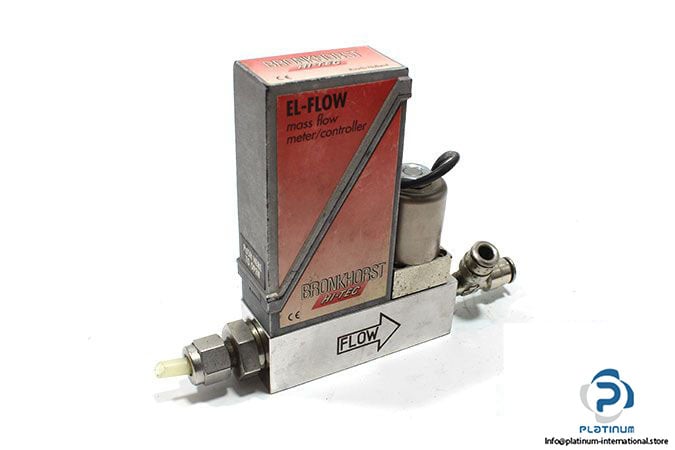

Model: EL-FLOW SELECT F-201CV

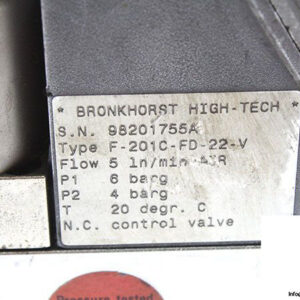

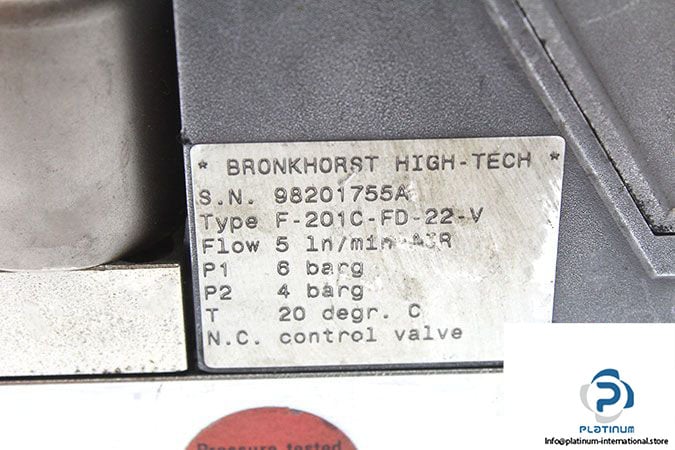

MRN: F-201C-FD-22-V
Flow Range based on N2:
min. 0,16…8 mln/min
max. 0,5…25 ln/min
Pressure rating (PN): 64 bar
Material (wetted parts): Stainless steel 316L or comparable
Max. Kv-value: 6,6 x 10-2
Power supply: 15 … 24 Vdc
Analog output: 0…5 (10) Vdc or 0 (4)…20 mA (sourcing output)
Accuracy: ± 0,5 %
Operating Temperature: -10 … 70 °C
Weight: 0.63 kg
