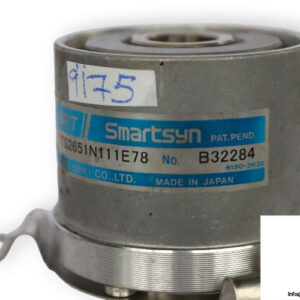

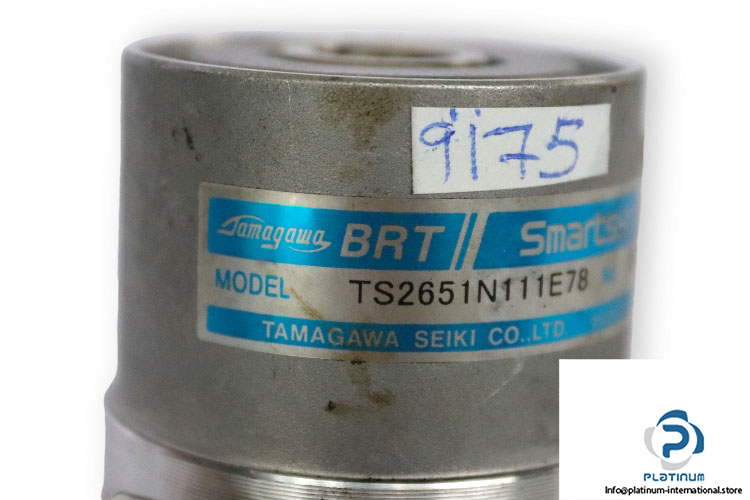

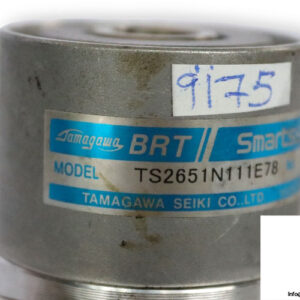

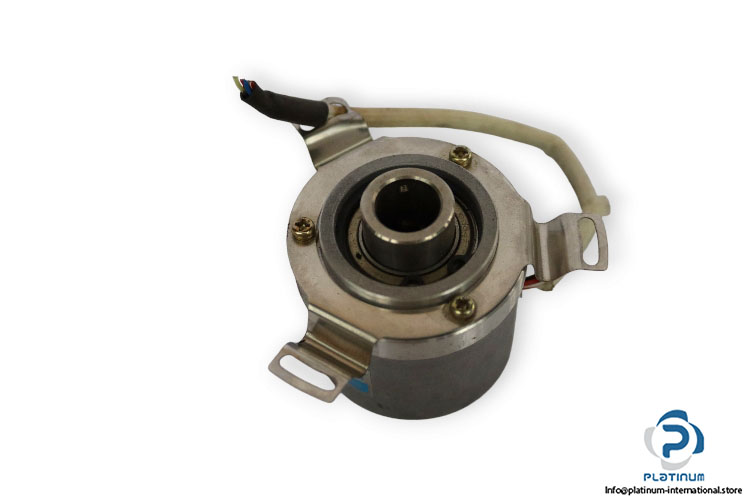

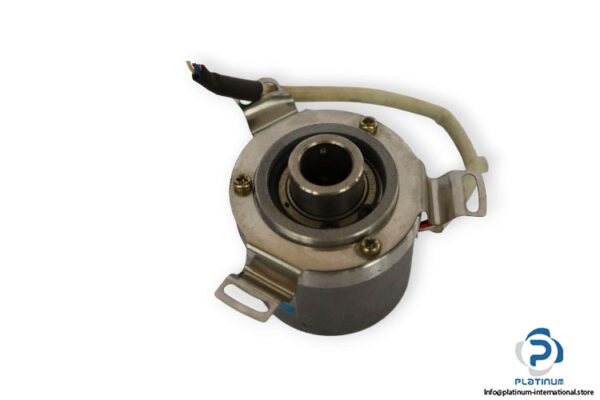

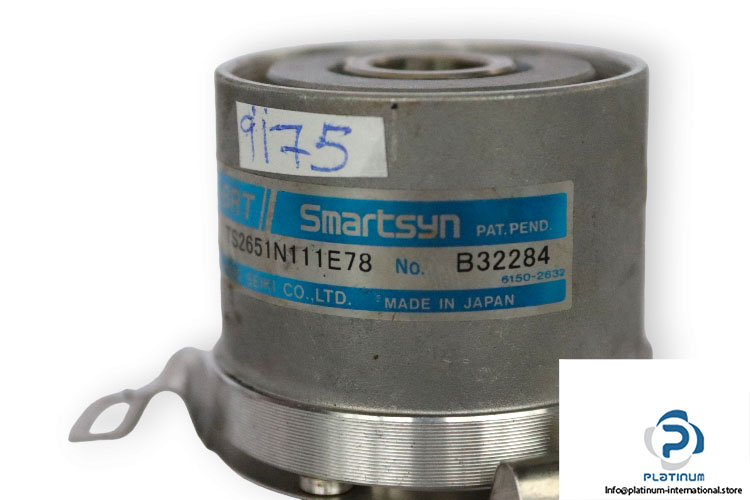

TAMAGAWA BRT TS2651N111E78 HOLLOW SHAFT RESOLVER
The TS2651N111E78 from Tamagawa BRT is a high-precision hollow shaft resolver, designed for rugged industrial environments. Belonging to the SMARTSyn range, it ensures reliable position sensing and motion control even under extreme conditions.
Manufacturer: TAMAGAWA BRT
Type: Hollow Shaft Resolver
Model: TS2651N111E78
Part No.: B32284
Technical Information
- Range: SMARTSyn
- Shaft Diameter: 14 mm
- Operating Speed: 133.3 S»¹
- Transformation Ratio: 0.3
- Input Voltage: 3.5 V rms
- Input Frequency: 4 kHz
- Electrical Connection: Cable, 2 m
- Protection Class: IP54
- Operating Temperature: -10 / 150 °C
