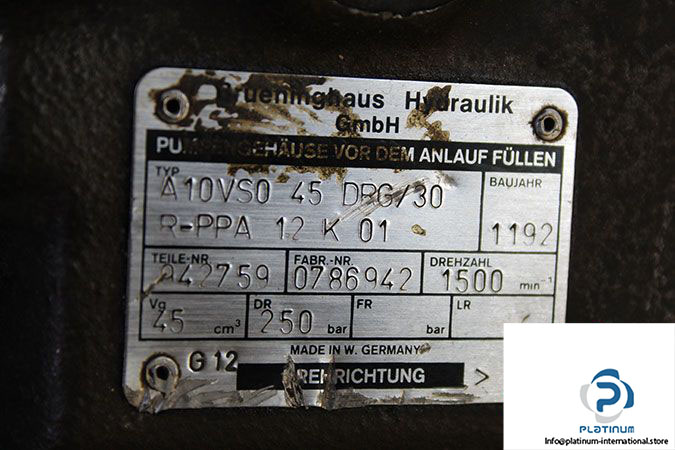

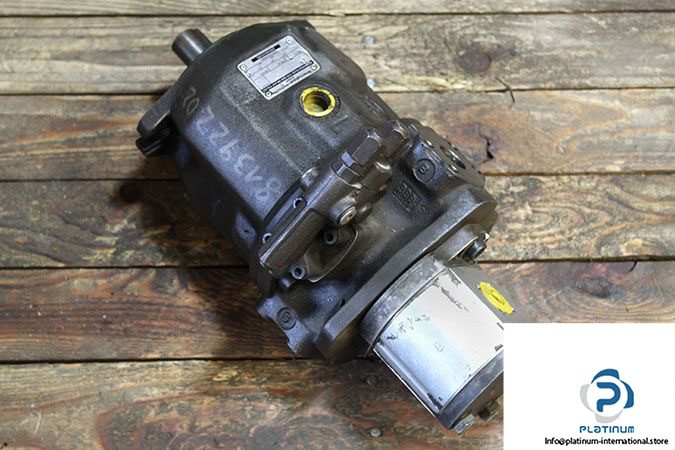

Manufacturer: Brueninghaus Hydraulik

Type: Axial Piston Variable Pump

Model: A10VSO45DR/30R-PPA12K01

Size: 45

Displacement: 45 cm³

Direction of Rotation: Clockwise

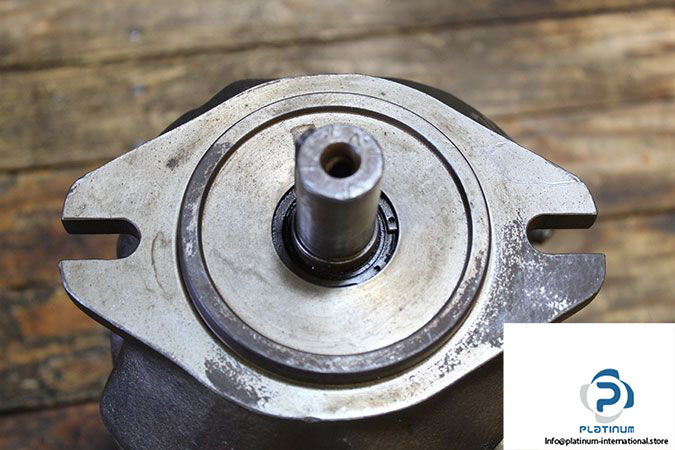

Shaft Diameter: 25 mm

Maiximum Speed: 2600 rpm

Flow Rate at 1500 rpm: 68 l/m

Power at 280 bar, 1500 rpm: 32 KW

Torque at 280 bar: 200 N.M

Viscosity Range: 16 ….  36 mm²/s

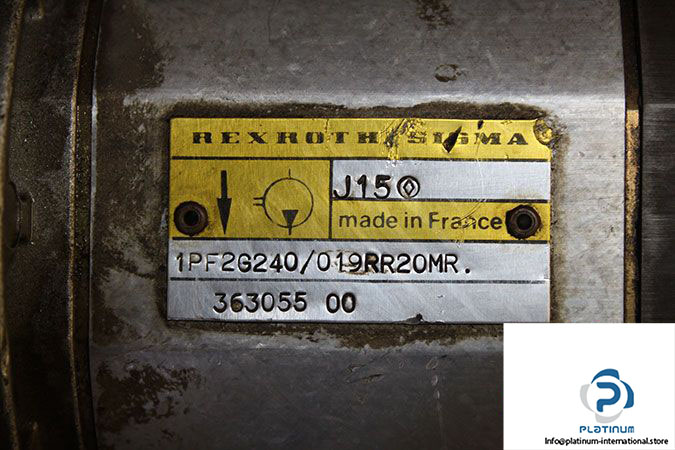

Attachment: REXROTH 1PF2G240/019RR20MR EXTERNAL GEAR PUMP

Manufacturer: Rexroth

Type: External Gear Pump­­­­­­­­­

Model: 1PF2G240/019RR20MR

Size: 19

Displacement: 19 cm³

Direction of Rotation: Clockwise

Weight: 27.5 Kg
