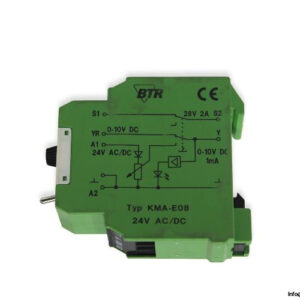

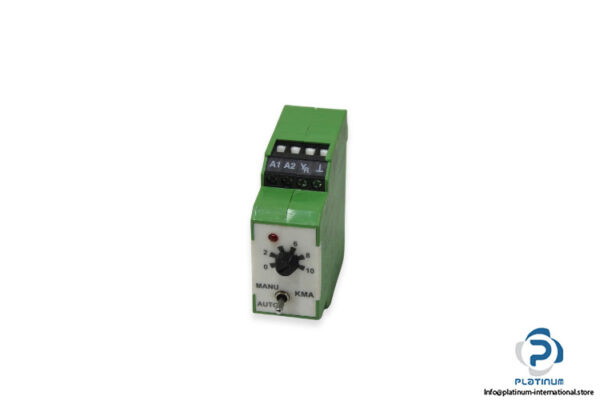

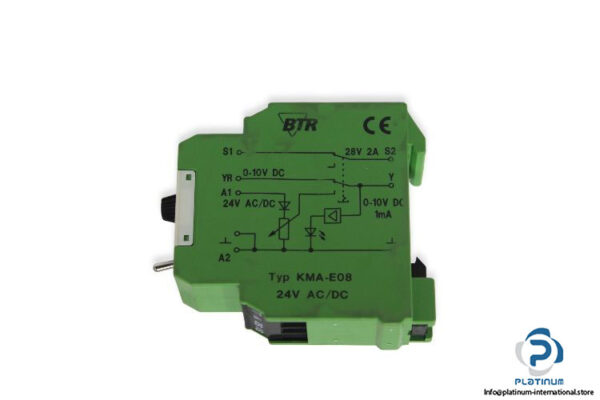

BTR KMA-E08 ANALOG DATA ENCODER
The BTR KMA-E08 Analog Data Encoder is a compact and efficient solution for analog signal processing in automation systems. Designed for reliable voltage input/output control, this encoder ensures accurate signal transmission with minimal power consumption, ideal for integration in control panels and industrial setups.
Manufacturer: BTR
Type: Analog Data Encoder
Model: KMA-E08
Technical Information
- Operating Voltage: 24 V AC/DC
- Power Consumption: AC (max.) 24 mA, DC (max.) 19 mA
- Voltage Input: 0 / 10 V DC
- Voltage Output: 0 / 10 V DC
- Output Current Max.: 10 mA
- Dimensions: 22.5 x 61.3 x 60 mm
- Connection Type: Screw-type terminal blocks
- Housing Material: Polyamide 6.6 V0
- Operating Temperature: -10 / 50 °C
- Degree of Protection: Housing IP40, Terminal Blocks IP20
