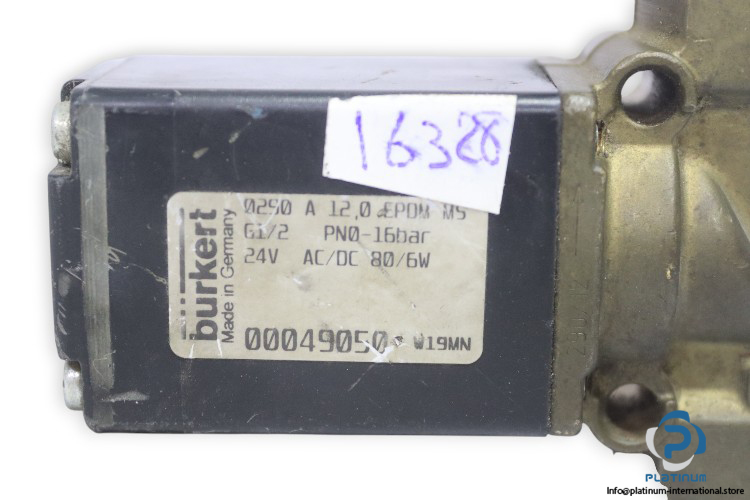

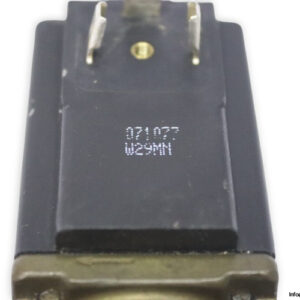

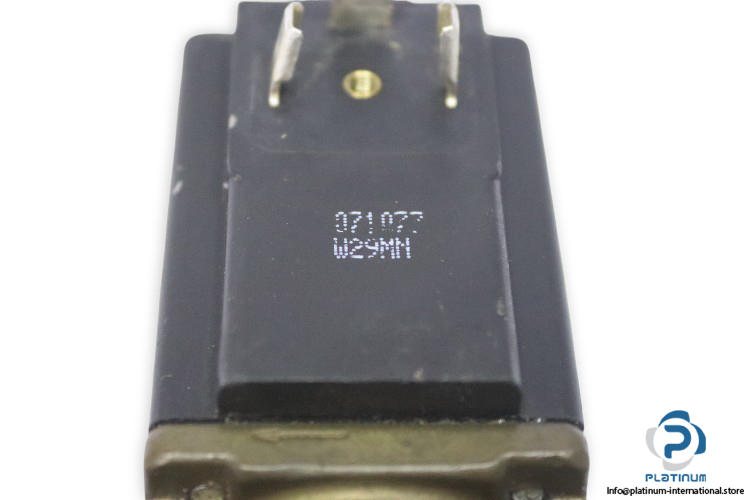

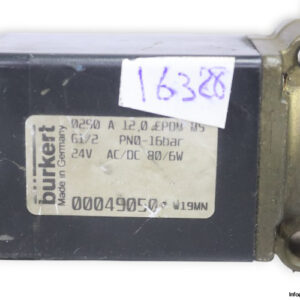

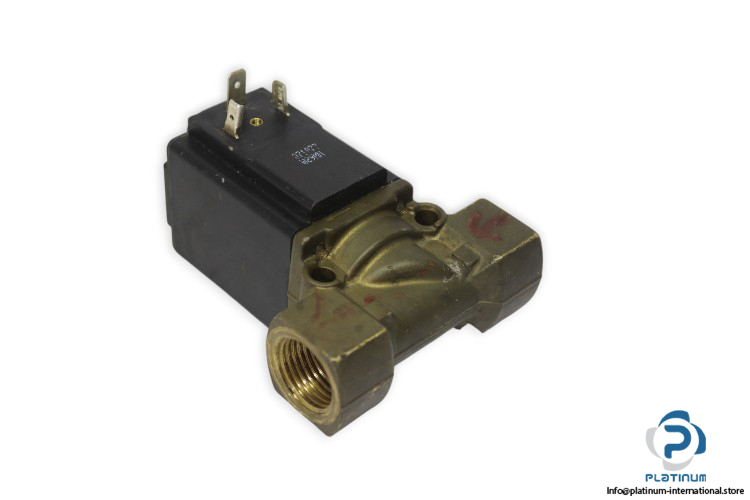

BURKERT 0290 A 12,0 EPDM MS G1/2 Single Solenoid Valve
The BURKERT 0290 A 12,0 EPDM MS G1/2 Single Solenoid Valve offers reliable fluid control with a durable brass and stainless steel body. Designed for demanding industrial applications, this 2/2-way valve ensures efficient operation and long service life under various pressure and temperature conditions.
Manufacturer: BURKERT
Type: Single Solenoid Valve
Model: 0290 A 12,0 EPDM MS G1/2
ID No.: 00049050
Ref Code: W19MN
Technical Information
- Main Valve Orifice 1 (P): 12 mm
- Valve Function: 2/2 Way Valve
- Type of Actuation: Electrical
- Working Pressure: 0 “ 16 bar
- Pneumatic Connection: G 1/2
- Supply Voltage: 24 V AC/DC
- Rated Power Consumption: 80 W
- Main Valve Wetted Material: Brass
- Body Material: Brass, Stainless Steel
- Temperature Medium Min: -30 °C
- Seat Seal Material: EPDM (Ethylene-propylene-diene rubber)
- Port Connection 1 Thread Marking: ½
- Valve Function: Normally Closed
