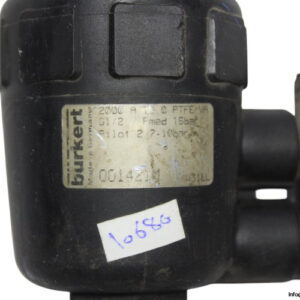

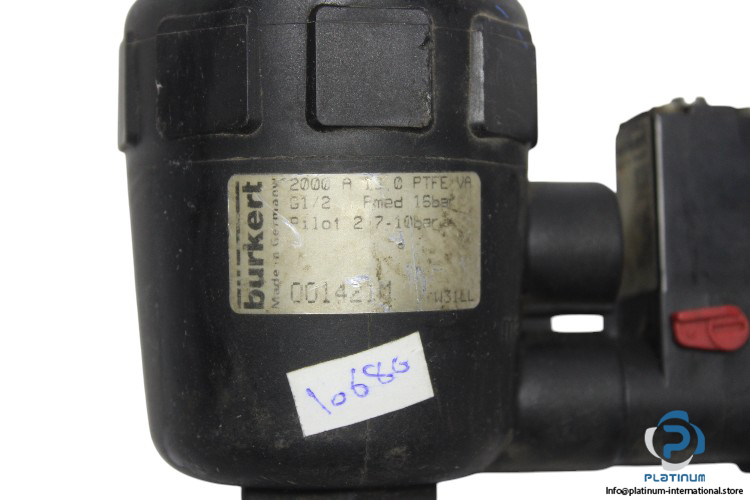

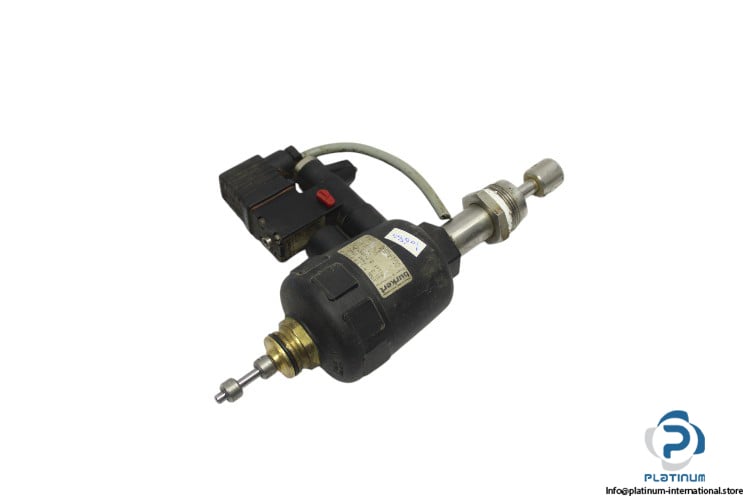

BURKERT Angle Seat Valve 2000 A 10.0 PTFE VA G1/2

The BURKERT Angle Seat Valve 2000 A 10.0 PTFE VA G1/2 is designed for controlling the flow of a wide range of media, including neutral gases, water, alcohols, oils, fuels, salt solutions, lye, organic solvents, and steam. This manually operated valve features a 2/2-way body configuration and is capable of handling a pilot operation pressure between 2.7 and 10 bar. The valve comes with G 1/4 and G 3/4 port sizes and is constructed with high-quality materials, ensuring reliable performance in various industrial applications.

Manufacturer: BURKERT

Type: Angle Seat Valve

Model: 2000 A 10.0 PTFE VA G1/2

Part No.: 0014214

Technical Specifications

• Medium: Neutral Gases, Water, Alcohols, Oils, Fuels, Salt Solutions, Lye, Organic Solvents, Steam
• Body Configuration: 2/2-Way Body
• Operation Mode: Manually
• Pilot Operation Pressure: 2.7 to 10 bar
• Port Size: G 1/4 & G 3/4

Attachment: BURKERT 0300 C 1,2 NBR PA G1/8-6 DIRECT-ACTING PLUNGER SOLENOID VALVE

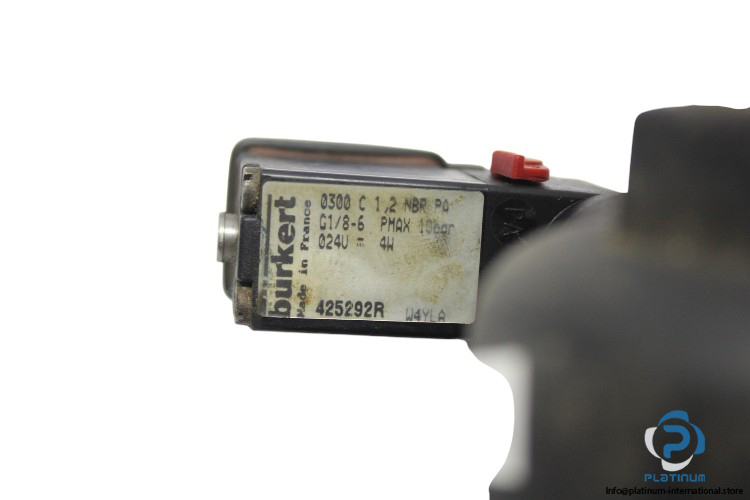

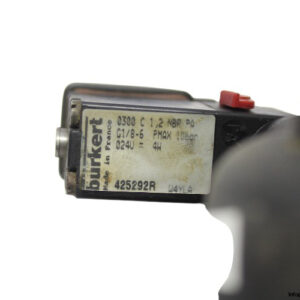

BURKERT Direct-Acting Plunger Solenoid Valve 0300 C 1,2 NBR PA G1/8-6

The BURKERT 0300 C 1,2 NBR PA G1/8-6 Direct-Acting Plunger Solenoid Valve is designed for air fluid control in industrial automation systems. With a body configuration of 3/2-way and electrically actuated operation, this solenoid valve is ideal for controlling the flow of air. It operates at a maximum pressure of 10 bar, and its supply voltage is 24 V DC with a power consumption of 4 W. The port size is G 1/8, ensuring seamless integration into various systems.

Manufacturer: BURKERT

Type: Direct-Acting Plunger Solenoid Valve

Model: 0300 C 1,2 NBR PA G1/8-6

Part No.: 425292R

Technical Specifications

• Fluid: Air
• Body Configuration: 3/2-Way
• Actuation Type: Electrically
• Operation Pressure Max.: 10 bar
• Supply Voltage: 24 V DC
• Power Consumption: 4 W
• Port Size: G 1/8
