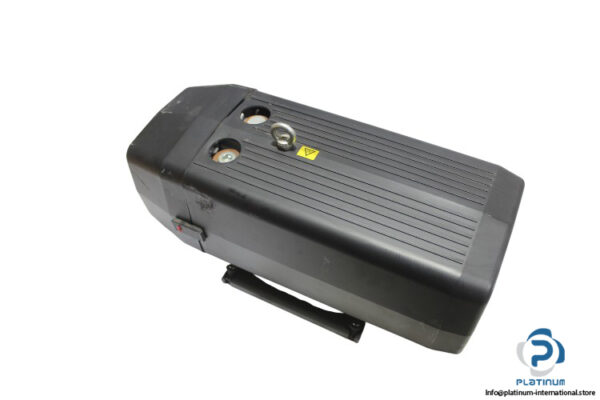

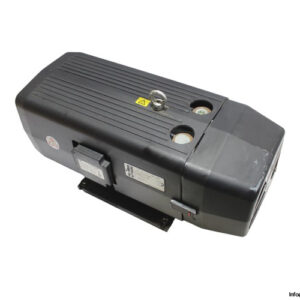

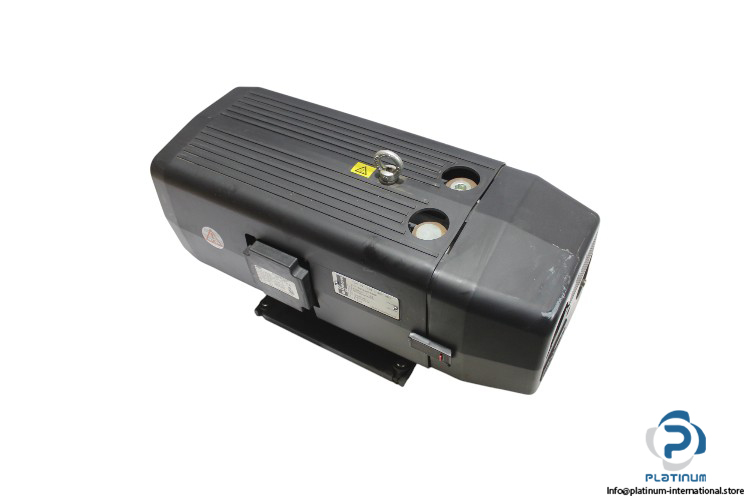

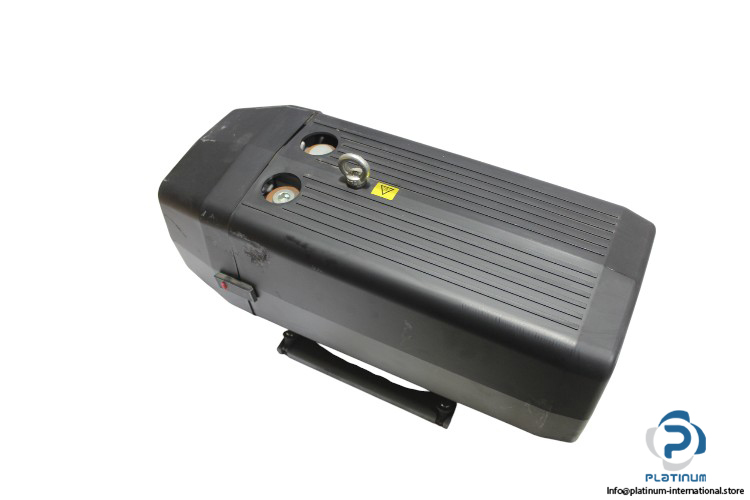

Busch Vacuum Pump SV 1040 C 000 INXX
The Busch Vacuum Pump SV 1040 C 000 INXX is engineered to deliver efficient and reliable performance in various industrial applications. With an ultimate pressure of 120 hPa, this vacuum pump ensures effective vacuum generation for your systems.
Manufacturer: Busch
Model: SV 1040 C 000 INXX
Type: Vacuum Pump

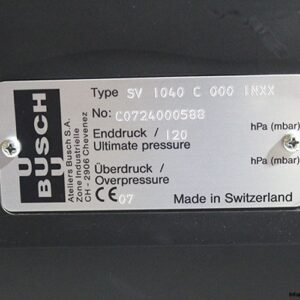

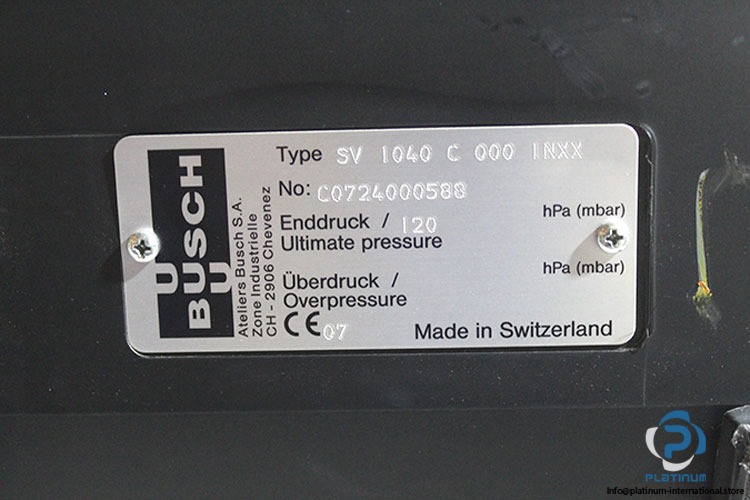

Part No.: C0724000588
Ultimate Pressure: 120 hPa
Attachment: ATB 211432601-X 0019 MOTOR

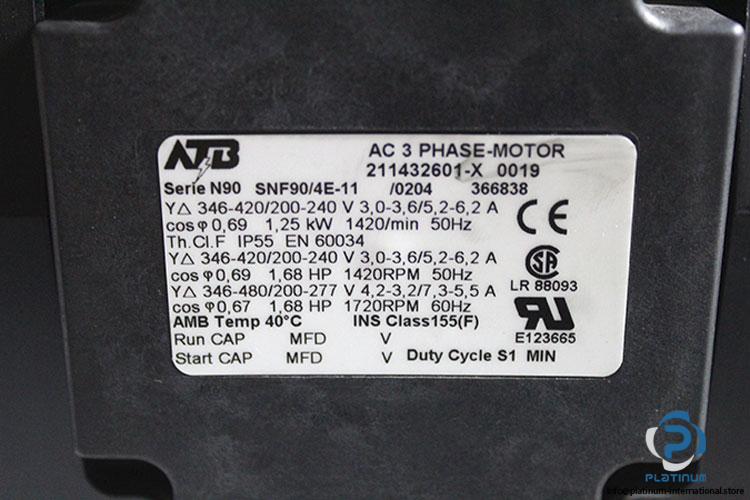

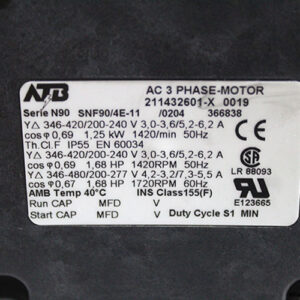

ATB Motor 211432601-X 0019
Manufacturer: ATB
Model: 211432601-X 0019
Type: Motor
Serial No.: N90 SNF90/4E-11 /0204
Part No.: 366838
Technical Information:
- Rated Voltage at 50Hz: 346 to 420 V / 200 to 240 V
- Rated Current at 50Hz: 3 to 3.6 A / 5.2 to 6.2 A
- Power: 1.25 kW / 1.68 hp
- Speed: 1420 rpm
- Power Factor (cos): 0.69
- Rated Voltage at 60Hz: 346 to 480 V / 200 to 277 V
- Rated Current at 60Hz: 4.2 to 3.2 A / 7.3 to 5.5 A
- Power at 60Hz: 1.68 hp
- Speed at 60Hz: 1720 rpm
- Power Factor at 60Hz (cos): 0.67
- IP Rating: IP55
- Thermal Class: 155 F
- Temperature: 40°C
