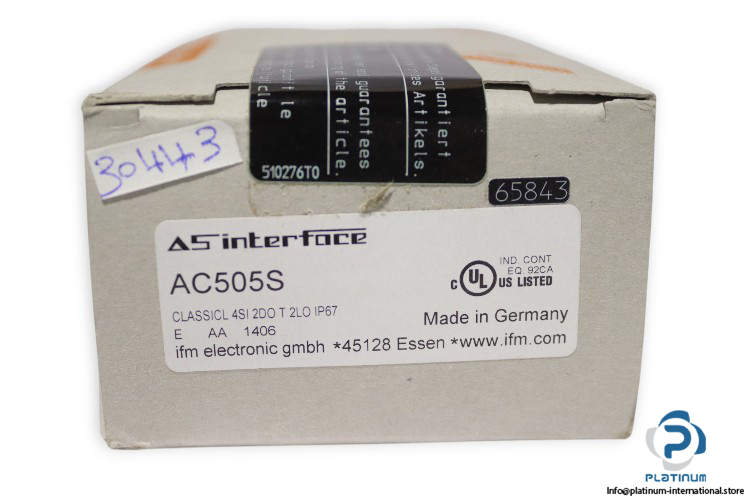

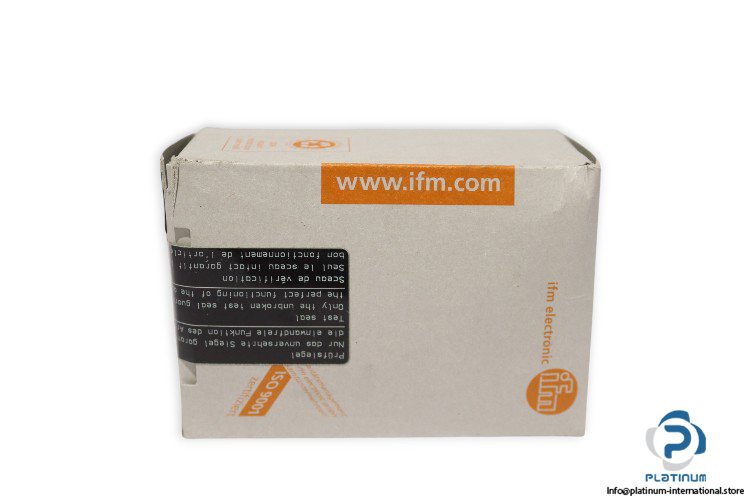

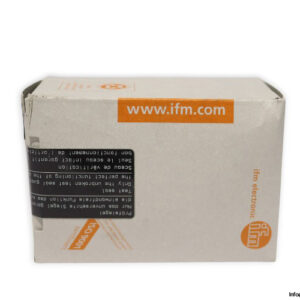

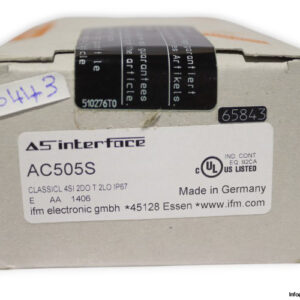

IFM AC505S AS-Interface

The IFM AC505S is a high-quality AS-Interface module designed for industrial automation and safety applications. Built for DIN rail mounting, it provides reliable communication, efficient input/output handling, and durable performance under demanding conditions.

Manufacturer: IFM
Type: AS-Interface
Model: AC505S
Code: E AA 1406
Ref No.: 65843

Technical Information

• Configuration: 4SI 2DO T 2LO (4 digital inputs, 2 digital outputs, 2 local outputs)
• Design: Housing for DIN rail mounting
• Application: AS-i Safety at Work
• Operating Voltage: 26.5 / 31.6 VDC
• Max. Current Consumption from AS-i: 280 mA
• Number of Digital Inputs: 2
• Input Circuit of Digital Inputs: PNP/NPN
• Sensor Supply of the Inputs: AS-i
• Power Supply: 18 / 30 V DC
• Max. Total Current Rating of Inputs: 200 mA
• Ambient Temperature: -25 / 55 °C
• Protection Class: IP 67
