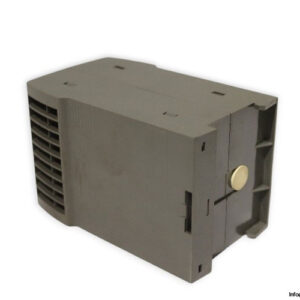

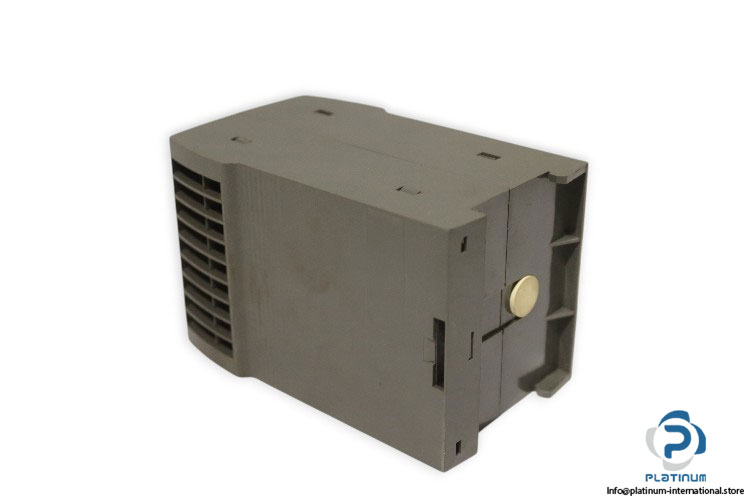

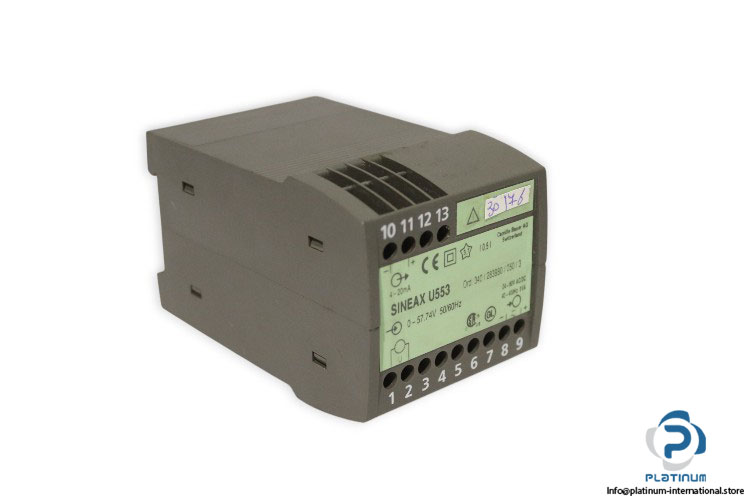

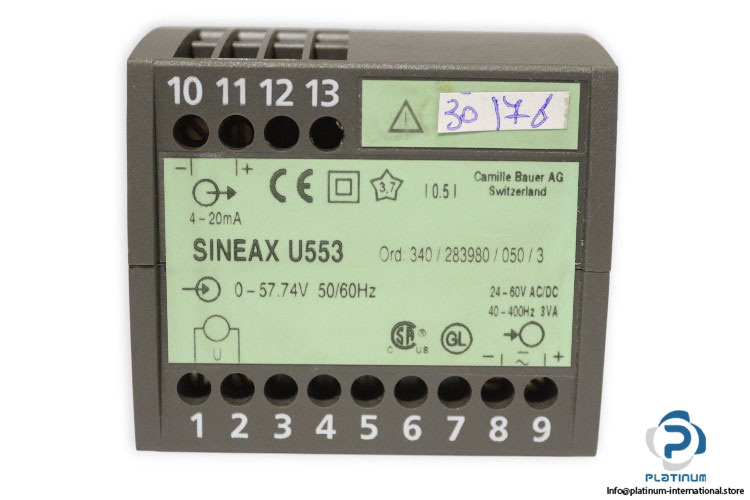

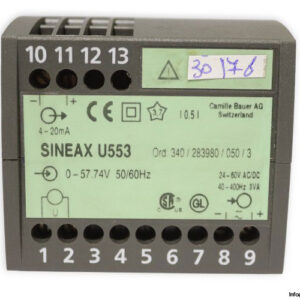

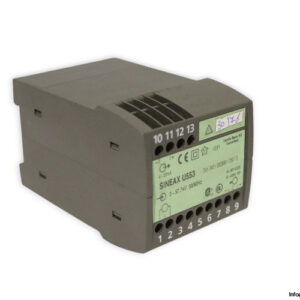

Camille Bauer SINEAX U553 Transducer for AC Voltage

The Camille Bauer SINEAX U553 is a high-precision AC voltage transducer designed for monitoring and signal conversion in industrial systems. Compact and reliable, it delivers accurate measurement with a 4–20 mA output signal, rail mounting capability, and robust protection ratings.

Manufacturer: Camille Bauer
Type: Transducer for AC Voltage
Model: SINEAX U553
ORD No.: 340/283980/050/3

Technical information

• Supply Voltage: 24 – 60 V AC/dc
• Power Consumption: approx. 3 VA
• Frequency: 40 – 400 Hz
• Measuring Range: 0 – 57.74 V
• Output Signal: 4 – 20 mA
• Nominal Frequency (fN): 50/60 Hz
• Protection Degree: IP40 (housing) / IP20 (terminals)
• Contamination Level: 2
• Mounting: For rail mounting
• Ambient Temperature: 15 – 30 °C
• Dimensions: 112 x 70 x 60 mm
